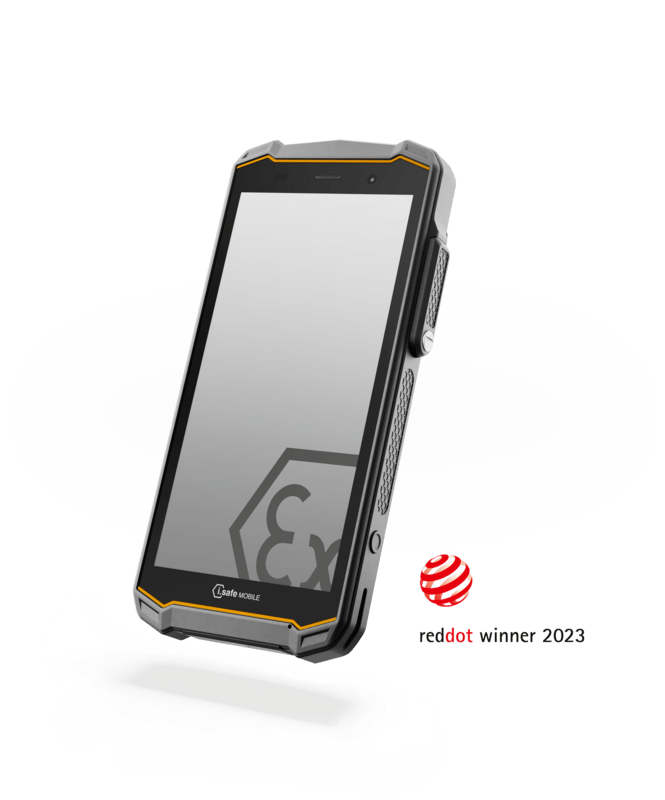

IS540.2

The 5G smartphone with a clear 6-inch full HD display is equipped with a high-end chipset, supports a wide range of frequency bands and offers the highest image quality through the 48 MP main camera. The high-quality processor ensures fast data processing for the most demanding industrial applications such as predictive maintenance. The 16-pin ISM interface provides a secure connection for approved accessories.

Request Quote

Category: Products Zone 2/22

Description

Advantages

Further Features

Approvals

Contents

Downloads

Operating system	Android™ 14
Processor	Qualcomm® QCM6490 Octa Core
Memory	8 GB RAM 128 GB internal memory microSD to 128 GB
Frequencies	2G GSM 850/900/1800/1900 MHz 3G WCDMA B1/2/4/5/8 4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12 MFBI/B13/B14/B17/B20/B25/B26/B28/B29/B30/B66/B71 4G LTE-TDD: B38/B39/B40/B41/B42/B43/B48 5G NR: n1/n2/n3/n5/n7/n8/n12/n14/n20/n25/n28/n30/n38/n40/n41/n48/n66/n71/n77/n78/n79
Dimensions	Size: 180,0 x 84,9 x 20,6 mm Weight: 422,0 g
Display	6,0″ (15,24 cm) Corning® Gorilla® Glass V3 usable with gloves
Battery	4400 mAh, 3,7 V replaceable
Camera	48 MP AF rear 5 MP FF front
Connectivity	Wi-Fi® 6: IEEE 802.11 a/b/g/n/ac/e/k/r/ax/v with hotspot Bluetooth® 5.2 GPS, A-GPS, Glonass, Beidou, Galileo Near Field Communication
Types of protection	IP68 dust-/waterproof MIL-STD 810H Usable from -20 °C to +55 °C

Advantages

Amplified loudspeaker for noisy work environments
Replaceable 4400 mAh battery
Programmable side key (e.g. for PoC/PTT)
Programmable red key (e.g. for lone worker protection/SOS)

Further Features

Multifunctional, lateral ISM interface for a quick and safe connection of additional devices

SOS key for loneworker protectionLWP ready (third party application required, based on country specific regulations)

Push-To-Talk keyPTT ready (third party application required, based on country specific approvals)

Amplified loudspeaker

Accelerometer, Gyroscope, Light, Magnetic, Proximity, Pressure sensors

Freely programmable key

Dual-SIM (Nano-SIM + eSIM)

USB-C, Desktop Charger, Multi Charger

Download Datasheet

Approvals

ATEX	Europe	II 3G Ex ic IIC T4 Gc II 3D Ex ic IIIC T135°C Dc
IECEx	International	Ex ic IIC T4 Gc Ex ic IIIC T135°C Dc
NEC500	North America	Class I Div. 2 Groups A, B, C, D, T4 Class II Div. 2 Groups F, G, T4 Class III Div. 2, T4
KCs	South Korea	Ex ic IIC T4
PCEC	China	Ex ic IIC T4 Gc Ex ic IIIC T135°C Dc
TIIS	Japan	Ex ic IIC T4 Gc Ex ic IIIC T135°C Dc
IA	South Africa	Ex ic IIC T4 Gc Ex ic IIIC T135°C Dc

Smartphone
Battery
Power Adapter universal
USB-C Cable
Screwdriver
Safety Instructions
Quick Start Manual
Display Protection Foil
