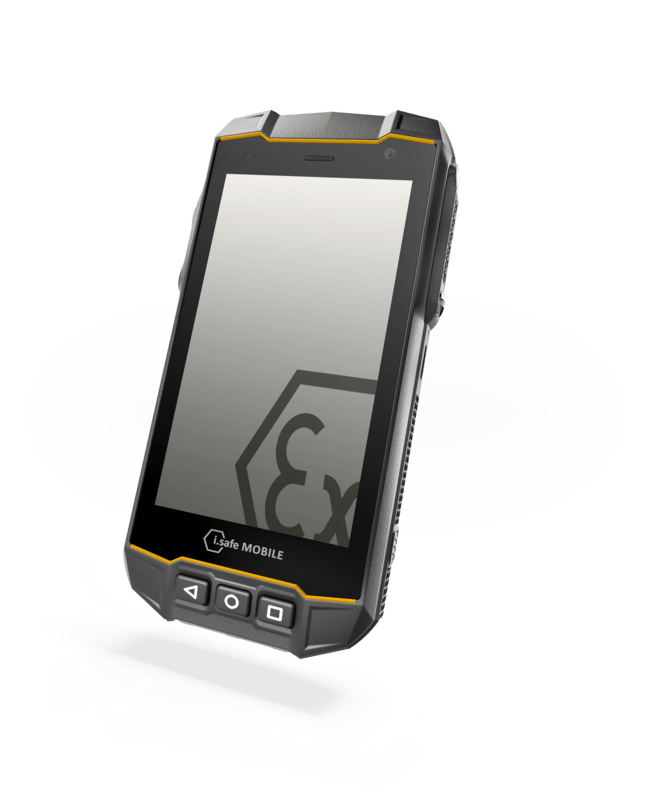

The high-performance intrinsically safe smartphone can be used in a variety of ways thanks to the ISM interface. Additional modules such as the remote speaker mic, PTT headsets or the IS-TH1xx.2 professional barcode scanner turn the IS530.2 into a high-performance multifunctional device. The smartphone is Android Enterprise Recommended, zero-touch capable and MDM compatible.
| Operating system | Android™ 13 |
|---|---|
| Processor | Qualcomm® Snapdragon SDM660 Octa Core |
| Memory | 4 GB RAM 64 GB internal memory microSD to 128 GB |
| Frequencies | 2G GSM 850/900/1800/1900 MHz 3G WCDMA B1/2/4/5/8 4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12 MFBI/B13/B14/B17/B20/B25/B26/B28A/B28B/B29/B30/B66 4G LTE-TDD: B38/B39/B40/B41 4G LTE-TD: B34/B39 |
| Dimensions | Size: 155,3 x 76,7 x 25 mm Weight: 325,0 g |
| Display | 4,5″ (11,43 cm) Corning® Gorilla® Glass V3 usable with gloves |
| Battery | 3600 mAh, 3,8 V replaceable |
| Camera | 13 MP AF rear 5 MP FF front |
| Connectivity | Wi-Fi® 2.4 GHz + Wi-Fi® 5.0 GHz: IEEE 802.11 a/b/g/n/ac/e/k/r/h with hotspot Bluetooth® 5 GPS, A-GPS, Glonass, Beidou, Galileo Near Field Communication |
| Types of protection | IP68 dust-/waterproof MIL-STD 810H Usable from -20 °C to +60 °C |
 ATEX |
Europe | II 3G Ex ic IIC T4 Gc IP64 II 3D Ex ic IIIC T135°C Dc IP64 |
 IECEx |
International | Ex ic IIC T4 Gc IP64 Ex ic IIIC T135°C Dc IP64 |
 NEC500 |
North America | Class I Div. 2 Groups A, B, C, D, T4 Class II Div. 2 Groups F, G, T135°C Class III Div. 2 |
 EAC |
Russia | 2Ex ic IIC T4 Gc X Ex ic IIIC T135°C Dc X |
 IA |
South Africa | Ex ic IIC T4 Gc IP64 Ex ic IIIC T135°C Dc IP64 |
 |
Datasheet IS530.2 (English) | Download (PDF, 1 MB) |
 |
Operating Manual IS530.2 | Download (PDF, 4 MB) |
 |
Safety Instructions IS530.2 | Download (PDF, 1 MB) |
 |
Quick Start Manual IS530.2 | Download (PDF, 2 MB) |
 |
FCC Statement IS530.x | Download (PDF, 162 KB) |
 |
IC Statement IS530.x | Download (PDF, 82 KB) |
 |
Quick Start Manual IS-DC530.1 | Download (PDF, 530 KB) |
 |
Quick Start Manual IS-MC530.1 | Download (PDF, 720 KB) |
 |
ATEX IS530.2 | Download (PDF, 867 KB) |
 |
IECEx IS530.2 | Download (PDF, 1,004 KB) |
 |
NEC IS530.2 | Download (PDF, 218 KB) |
 |
EAC IS530.2 | Download (PDF, 2 MB) |
 |
IA South Africa (MTEx) IS530.2 | Download (PDF, 396 KB) |
 |
DoC IS530.2 | Download (PDF, 247 KB) |
 |
DoC IS-DC530.1 | Download (PDF, 237 KB) |
 |
DoC IS-MC530.1 | Download (PDF, 237 KB) |
