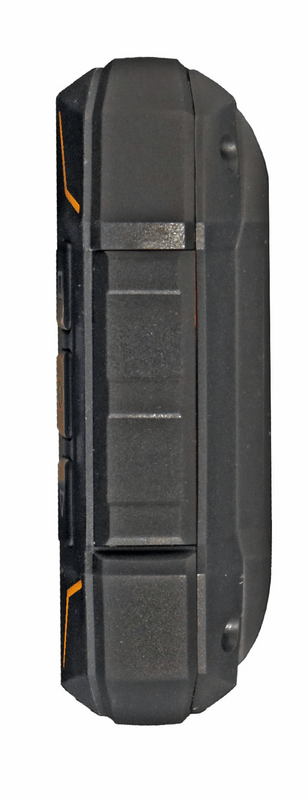

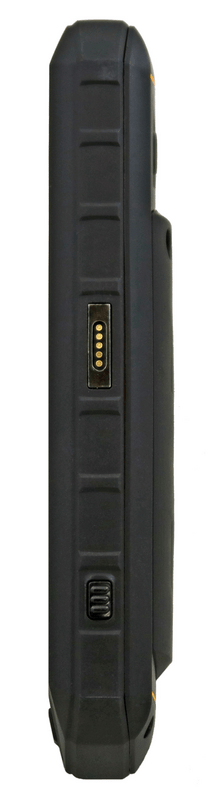

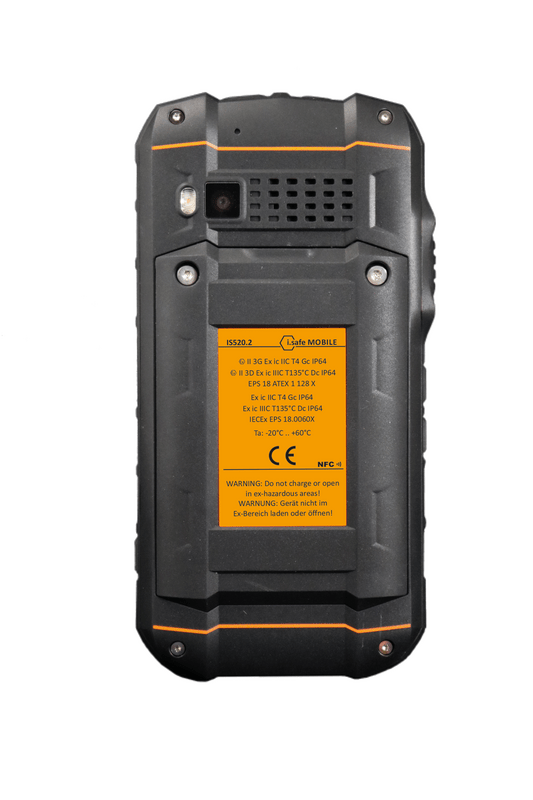

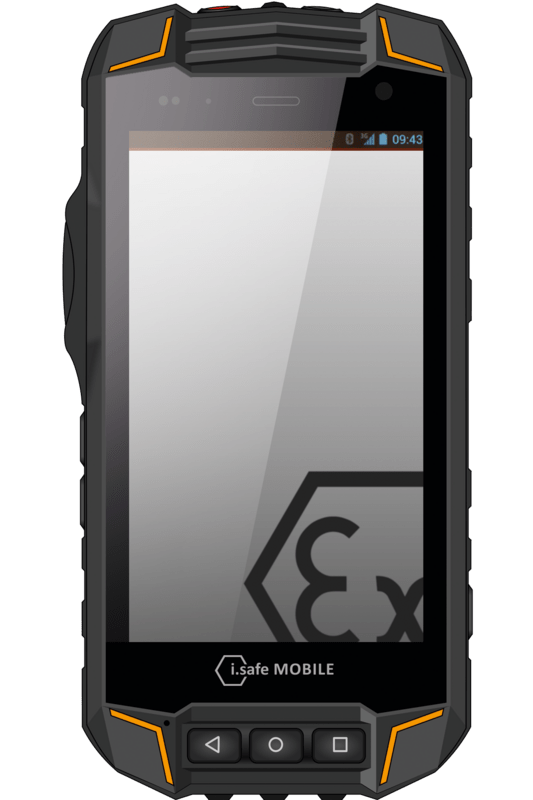

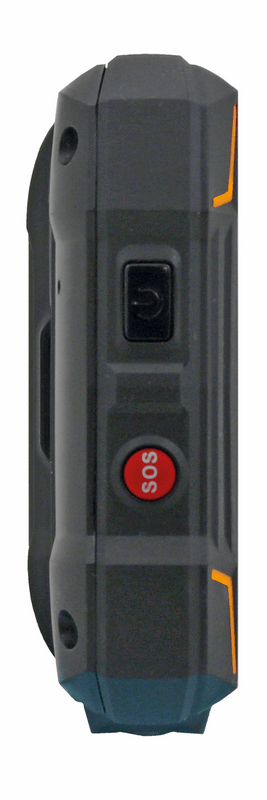

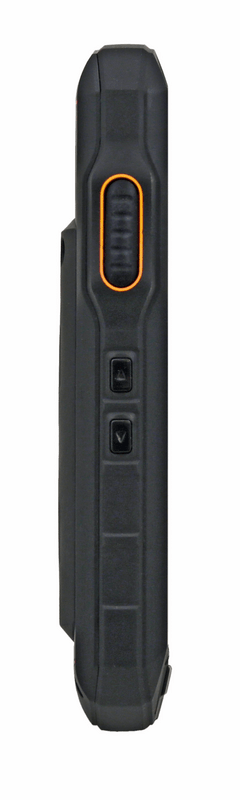

The IS520.2 is an industrial smartphone with current technology. It combines modern design, updated technology and robustness of an industrial product.
| Operating system | Android™ 7.1 |
|---|---|
| Processor | Qualcomm® Snapdragon MSM8953 Octa Core |
| Memory | 3 GB RAM 32 GB internal memory microSD to 32 GB |
| Frequencies | 2G GSM 850/900/1800/1900 MHz 3G WCDMA 850/900/1900/2100 MHz 4G LTE-FDD: B1/B3/B7/B20/B28 4G LTE-TDD: B38/B39/B40/B41 4G LTE-TD: B34/B39 |
| Dimensions | Size: 155,3 x 76,7 x 25 mm Weight: 325,0 g |
| Display | 4,5″ (11,43 cm) Corning® Gorilla® Glass V3 usable with gloves |
| Battery | 3600 mAh, 3,8 V replaceable |
| Camera | 8 MP AF rear 5 MP FF front |
| Connectivity | Wi-Fi® 2.4 GHz + Wi-Fi® 5.0 GHz: IEEE 802.11 b/g/n/ac/r with hotspot Bluetooth® 4.1 BLE GPS, A-GPS, Glonass, Beidou |
| Types of protection | IP68 dust-/waterproof MIL-STD 810G Usable from -20 °C to +60 °C |
 ATEX |
Europe | II 3G Ex ic IIC T4 Gc IP64 II 3D Ex ic IIIC T135°C Dc IP64 |
 IECEx |
International | Ex ic IIC T4 Gc IP64 Ex ic IIIC T135°C Dc IP64 |
 |
Datasheet IS520.2 (English) | Download (PDF, 705 KB) |
 |
Manual IS520.2 | Download (PDF, 2 MB) |
 |
Quick Start Manual IS-DC530.1 | Download (PDF, 530 KB) |
 |
Quick Start Manual IS-MC530.1 | Download (PDF, 720 KB) |
 |
ATEX IS520.2 | Download (PDF, 820 KB) |
 |
ATEX IS520.2 | Download (PDF, 772 KB) |
 |
IECEx IS520.2 | Download (PDF, 835 KB) |
