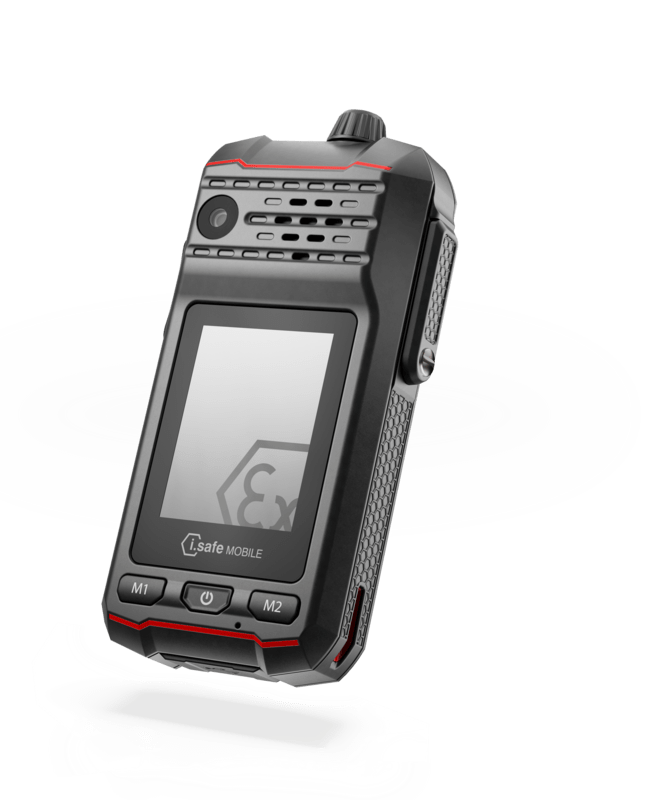

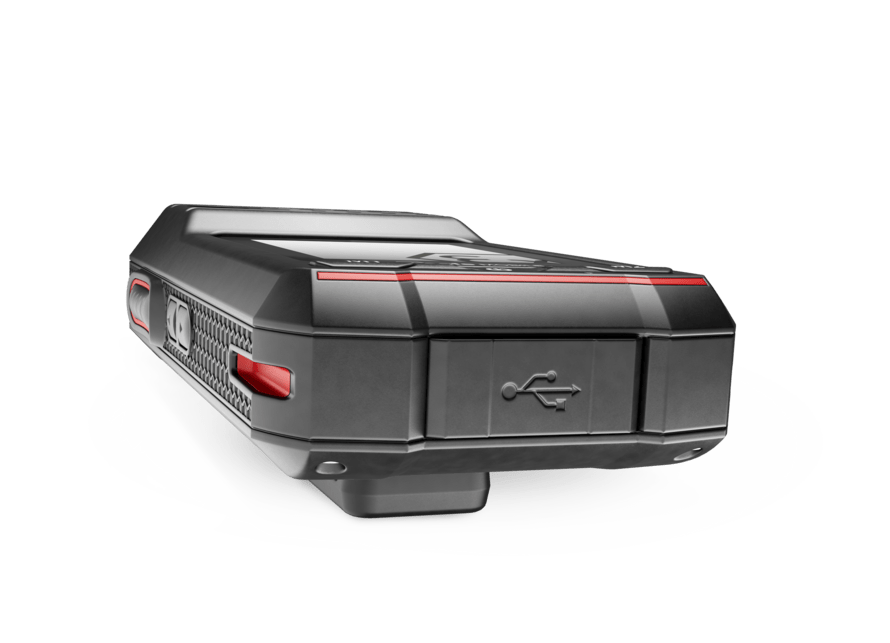

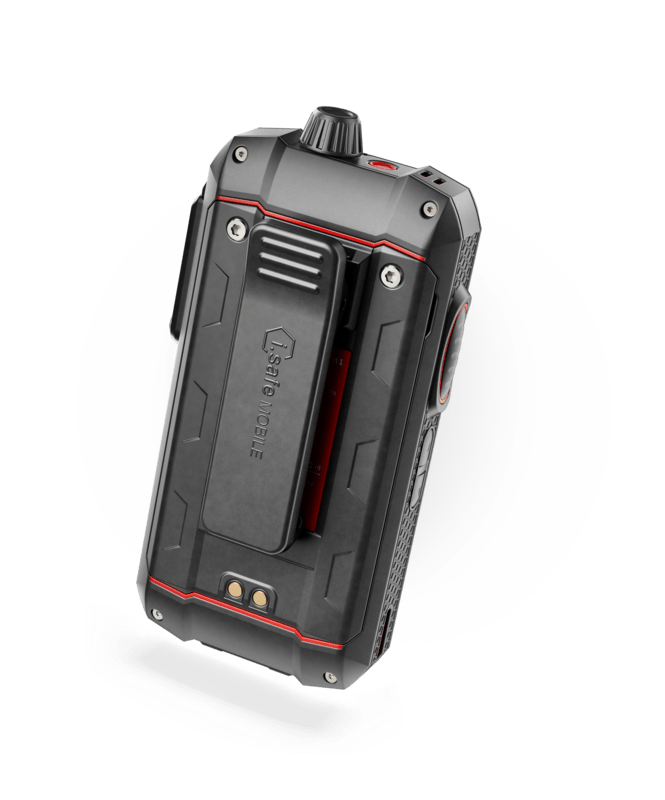

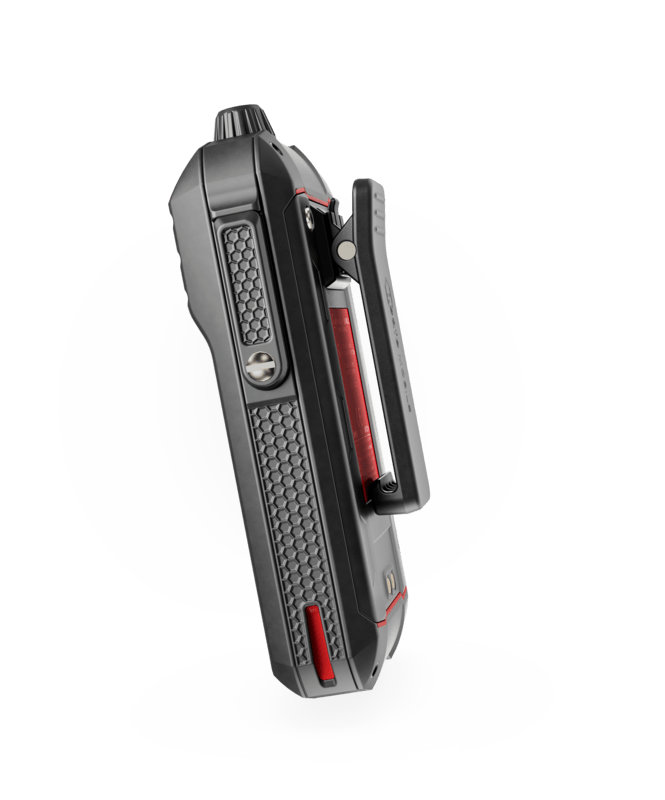

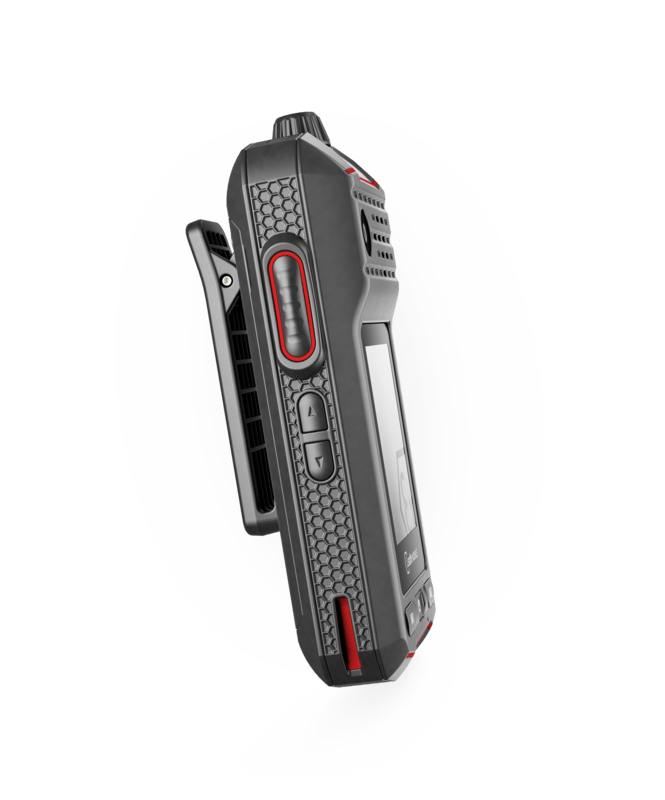

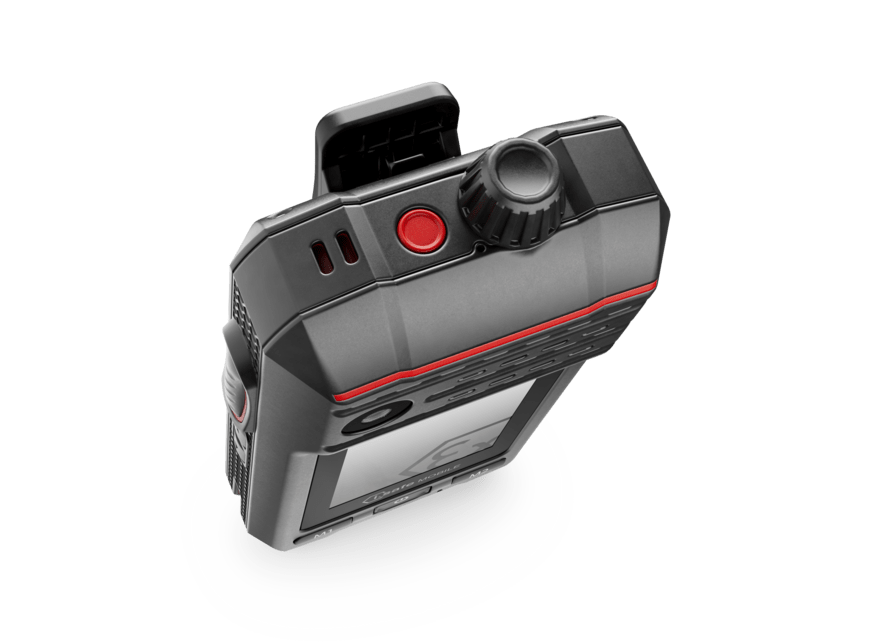

The 5G radio ensures secure and failure-free PoC communication via public or campus networks (4G or 5G) or Wi-Fi® in Ex-Zone 1/21. A gateway makes the IS440.M1 interoperable with previous radio technologies and enables a seamless integration into existing systems. The 5G radio offers a user-orientated look & feel, a replaceable battery, large buttons for PTT, SOS, talkgroup selection, a powerful front speaker, an ISM interface and a functional fixing clip. For the secure integration of different radio technologies and seamless team communication in mining. You can download selected apps that are compatible with the device directly from the pre-installed App World and update them regularly. The App World contains product-related, selected push-to-talk and MDM solutions.
| Operating system | ISM-OS 14 |
|---|---|
| Processor | Qualcomm® QCM6490 Octa Core |
| Memory | 4 GB RAM 64 GB internal memory |
| Frequencies | 4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12 MFBI/B13/B14/B17/B20/B25/B26/B28/B29/B30/B66/B71/B68 4G LTE-TDD: B38/B39/B40/B41/B42/B43/B48 5G NR: n1/n2/n3/n5/n7/n8/n12/n14/n20/n25/n28/n30/n38/n40/n41/n48/n66/n71/n77/n78/n79 |
| Dimensions | Size: 136,6 x 70 x 32 mm Weight: 307 g |
| Display | 2,4″ (6,096 cm) Corning® Gorilla® Glass V3 |
| Battery | 2400 mAh replaceable |
| Camera | 8 MP AF front |
| Connectivity | Wi-Fi® 6: IEEE 802.11 a/b/g/n/ac/e/k/r/ax/v with hotspot Bluetooth® 5.2 GPS, A-GPS, Glonass, Beidou, Galileo, NavIC, QZSS, SBAS Near Field Communication |
| Types of protection | IP68 dust-/waterproof MIL-STD 810H Usable from -20 °C to +55 °C |
 ATEX Mining |
Europe | I M1 Ex ia I Ma Ex ib IIC T4 Gb Ex ib IIIC T135°C Db |
 IECEx Mining |
International | Ex ia I Ma Ex ib IIC T4 Gb Ex ib IIIC T135°C Db |
 |
Datasheet IS540.M1 (English) | Download (PDF, 293 KB) |
 |

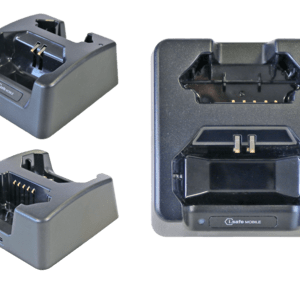

Operating Manual IS-DC440.1 | Download (PDF, 2 MB) |
 |
Safety Instructions IS-DC440.1 | Download (PDF, 951 KB) |
 |
Operating Manual IS440.M1 | Download (PDF, 4 MB) |
 |
Safety Instructions IS440.M1 | Download (PDF, 2 MB) |
 |
ATEX IS440.M1 | Download (PDF, 1 MB) |
 |
IECEx IS440.M1 | Download (PDF, 1 MB) |
 |
DoC IS440.M1 | Download (PDF, 239 KB) |
