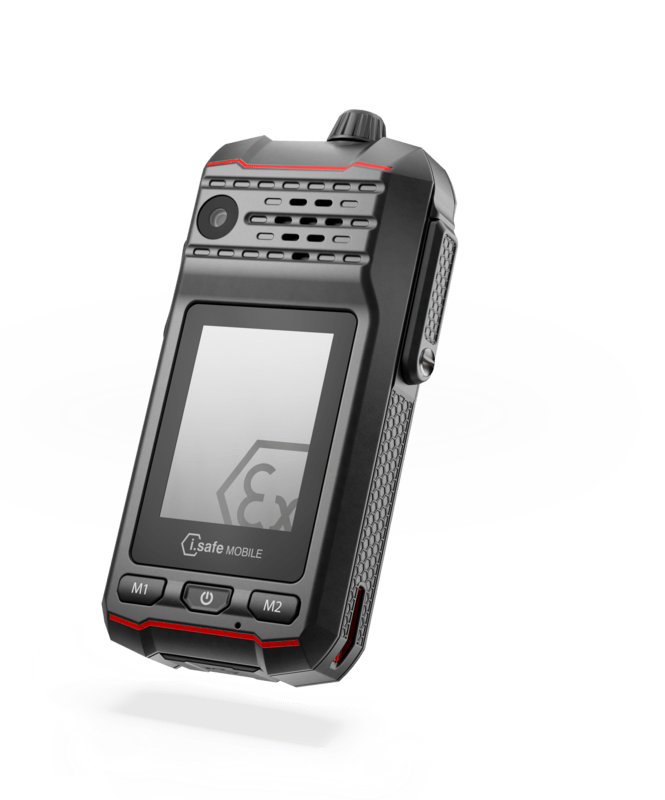

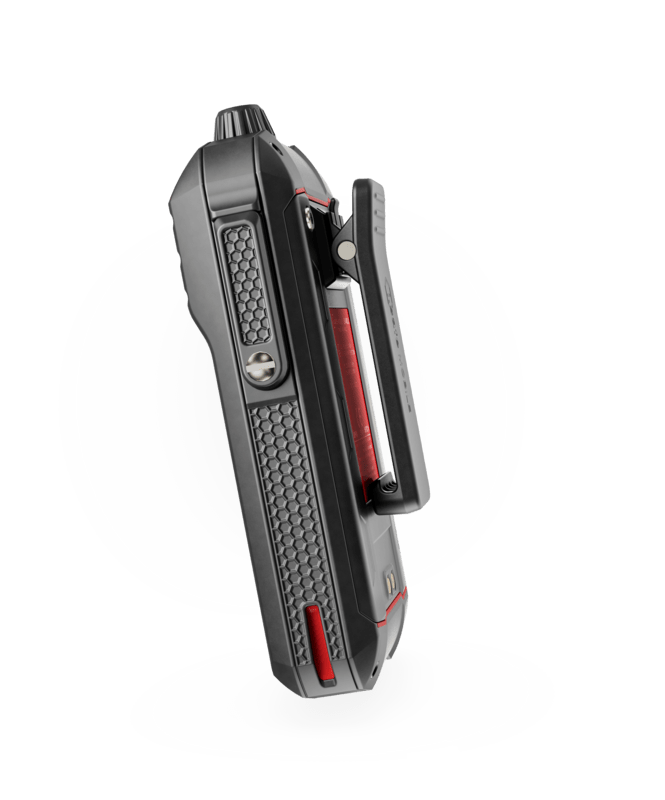

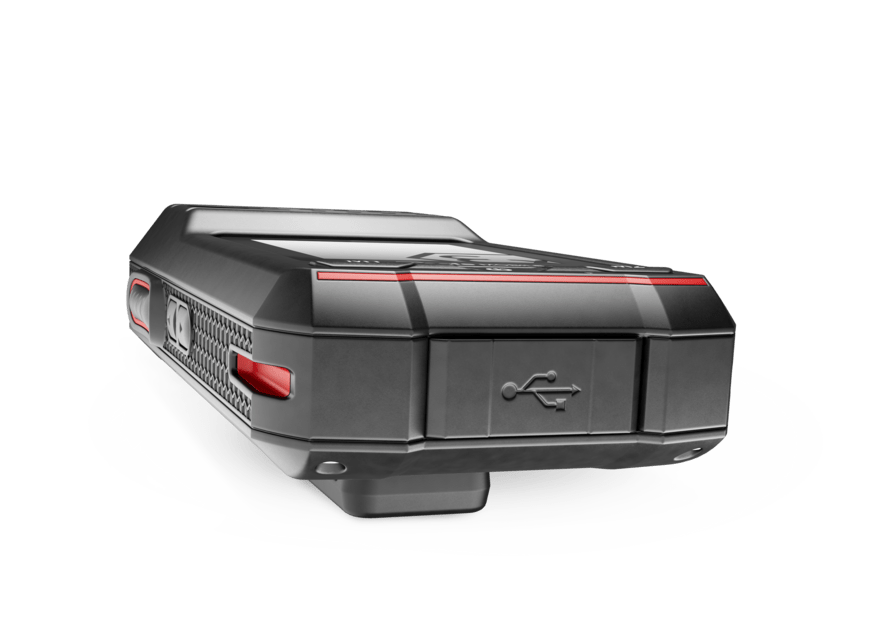

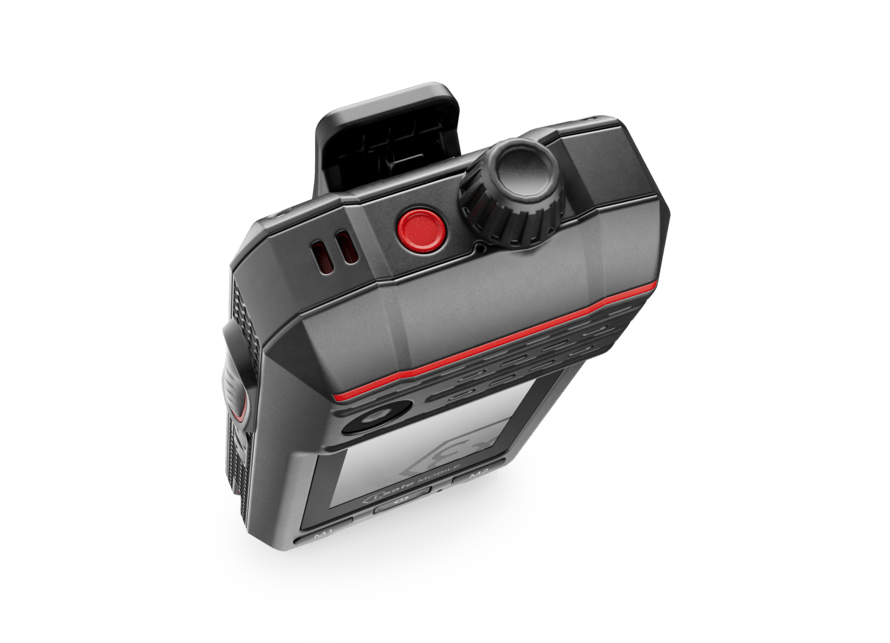

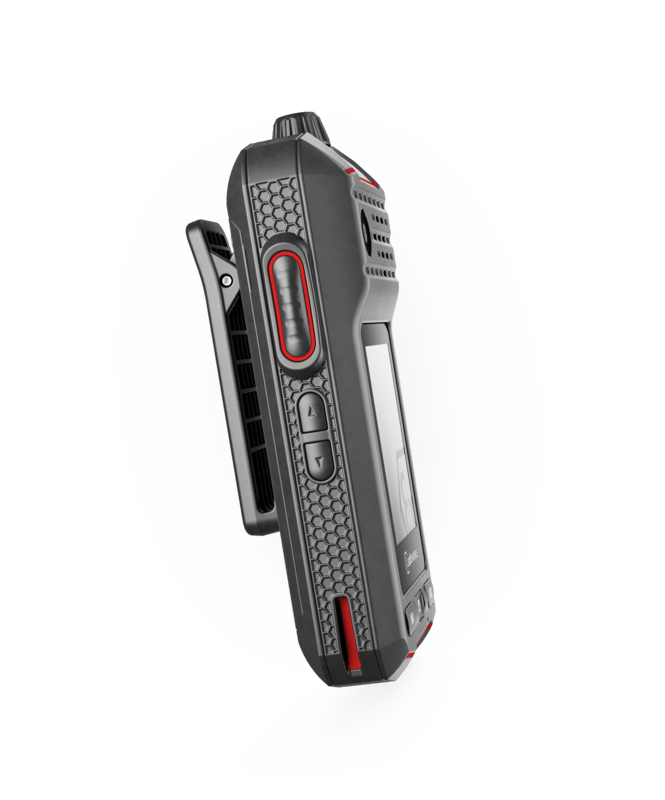

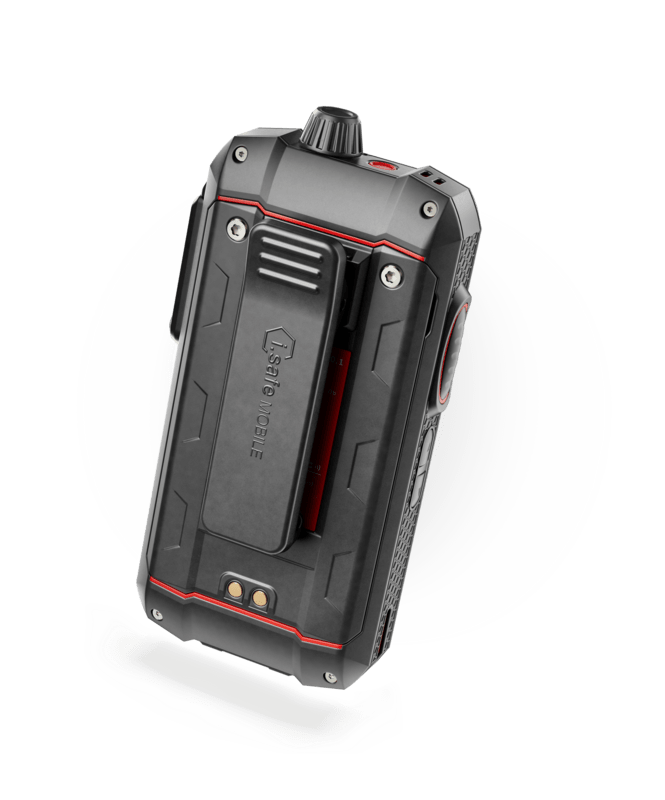

The 5G radio ensures secure and failure-free PoC communication via public or campus networks (4G or 5G) or Wi-Fi® in Ex-Zone 1/21. A gateway makes the IS440.1 interoperable with previous radio technologies and enables a seamless integration into existing systems. The 5G radio offers a user-orientated look & feel, a replaceable battery, large buttons for PTT, SOS, talkgroup selection, a powerful front speaker, an ISM interface and a functional fixing clip. You can download selected apps that are compatible with the device directly from the pre-installed App World and update them regularly. The App World contains product-related, selected push-to-talk and MDM solutions.
| Operating system | ISM-OS 14 |
|---|---|
| Processor | Qualcomm® QCM6490 Octa Core |
| Memory | 4 GB RAM 64 GB internal memory |
| Frequencies | 4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12 MFBI/B13/B14/B17/B20/B25/B26/B28/B29/B30/B66/B71/B68 4G LTE-TDD: B38/B39/B40/B41/B42/B43/B48 5G NR: n1/n2/n3/n5/n7/n8/n12/n14/n20/n25/n28/n30/n38/n40/n41/n48/n66/n71/n77/n78/n79 |
| Dimensions | Size: 136,6 x 70 x 32 mm Weight: 307 g |
| Display | 2,4″ (6,096 cm) Corning® Gorilla® Glass V3 |

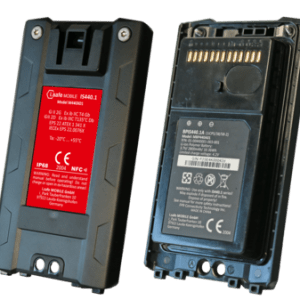

| Battery | 2400 mAh replaceable |
| Camera | 8 MP AF front |
| Connectivity | Wi-Fi® 6: IEEE 802.11 a/b/g/n/ac/e/k/r/ax/v with hotspot Bluetooth® 5.2 GPS, A-GPS, Glonass, Beidou, Galileo, NavIC, QZSS, SBAS Near Field Communication |
| Types of protection | IP68 dust-/waterproof MIL-STD 810H Usable from -20 °C to +55 °C |
 ATEX |
Europe | II 2G Ex ib IIC T4 Gb II 2D Ex ib IIIC T135°C Db |
 IECEx |
International | Ex ib IIC T4 Gb Ex ib IIIC T135°C Db |
 NEC500 |
North America | Class I Div. 1 Groups A, B, C, D, T4 Class II Div. 1 Groups E, F, G, T135 °C Class III |
 IA |
South Africa | Ex ib IIC T4 Gb Ex ib IIIC T135°C Db |
 INMETRO |
Brazil | Ex ib IIC T4 Gb Ex ib IIIC T135°C Db |
 PCEC |
China | Ex ib IIC T4 Gb Ex ib IIIC T135°C Db |
 KCs |
South Korea | Ex ib IIC T4 Gb Ex ib IIIC T135°C Db |
 |
