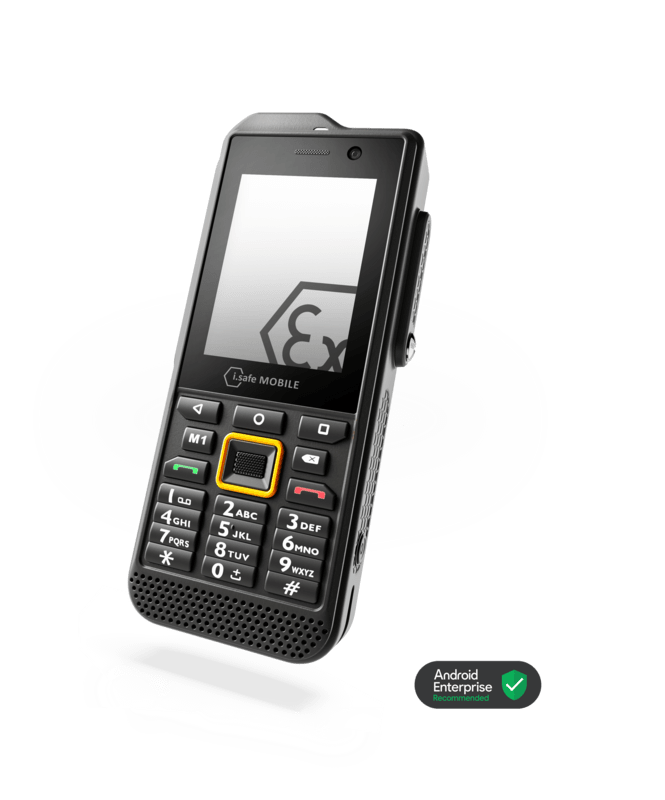

IS330.2

Thanks to the ISM interface, the professional PTT cell phone can be used to connect an Remote Speaker Microphone or a PTT headset like a radio. The Android Enterprise Recommended device is zero-touch capable and is very easy to manage via an MDM system. The powerful battery and the option of charging via desktop or multi charger complete the highlights of this very robust mobile device, which also has a good feel.

Request Quote

Full Name

Company Name

Your Email (Enter Corporate/Business Email-ID)

Email Verification Code (required)

Your Country

Your Mobile Number (required)

Device Requested

Message

Category: Products Zone 2/22

Description

Advantages

Further Features

Approvals

Contents

Downloads

Operating system	Android™ 10
Processor	Qualcomm® Snapdragon SDM660 Octa Core
Memory	4 GB RAM 64 GB internal memory microSD to 128 GB
Frequencies	2G GSM 850/900/1800/1900 MHz 3G WCDMA B1/2/4/5/8 4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12 MFBI/B13/B14/B17/B20/B25/B26/B28A/B28B/B29/B30/B66 4G LTE-TDD: B38/B39/B40/B41 4G LTE-TD: B34/B38
Dimensions	Size: 152,6 x 64 x 26,7 mm Weight: 318,0 g
Display	2,6″ (6,604 cm) Corning® Gorilla® Glass V3 usable with gloves

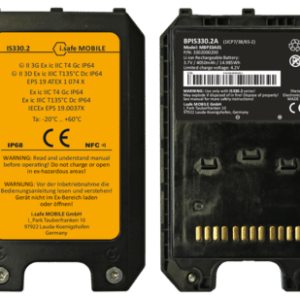

Battery	4050 mAh, 3,7 V replaceable
Camera	13 MP AF rear 5 MP FF front
Connectivity	Wi-Fi® 2.4 GHz + Wi-Fi® 5.0 GHz: IEEE 802.11 a/b/g/n/ac/e/k/r/h with hotspot Bluetooth® 5 GPS, A-GPS, Glonass, Beidou, Galileo Near Field Communication
Types of protection	IP68 dust-/waterproof MIL-STD 810G Usable from -20 °C to +60 °C

Advantages

Professional radio function
Push-to-talk key for uncomplicated team communication
Universal, 13-pin ISM (multifunctional) interface for connecting additional devices for a wide range of applications
High-performance battery for long work shifts
Android Enterprise Recommended
Zero-touch capable
Management via MDM system
Charging option via Desktop- and Multi Charger

Further Features

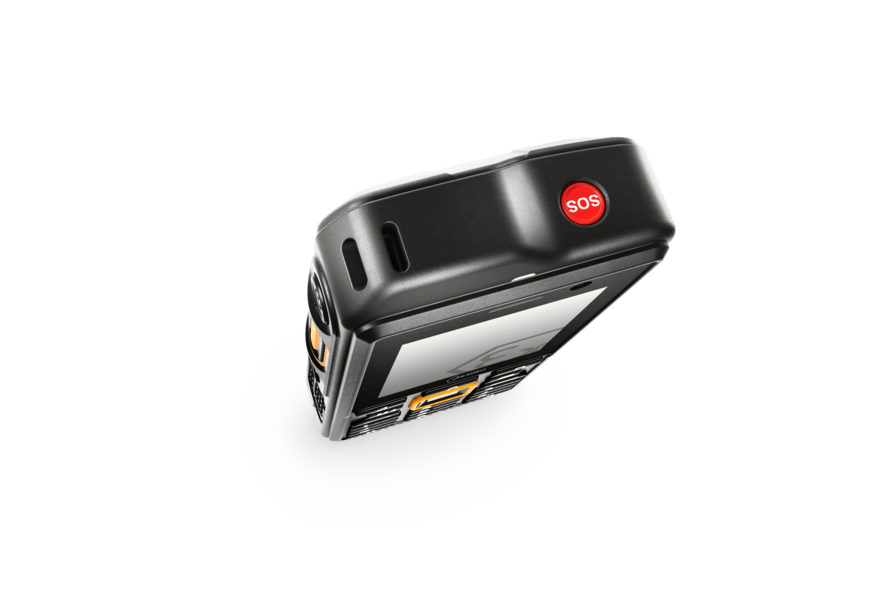

SOS key for loneworker protectionLWP ready (third party application required, based on country specific regulations)

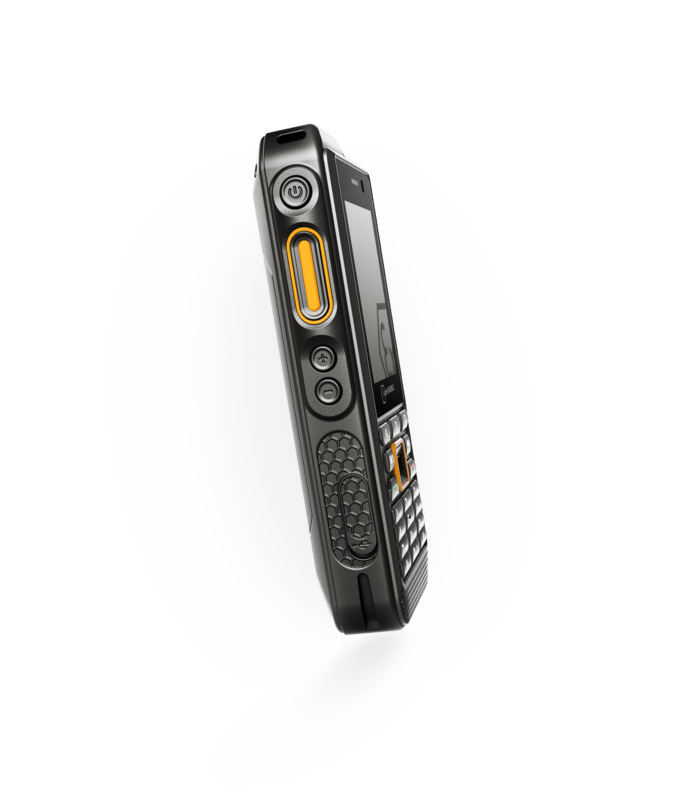

Push-To-Talk keyPTT ready (third party application required, based on country specific approvals)

Amplified loudspeaker

Accelerometer, Gyroscope, Light, Magnetic, Proximity, Pressure sensors

Dual-Nano-SIM

Multifunctional, lateral ISM interface for a quick and safe connection of additional devices

USB-C, Desktop Charger

Download Datasheet

Approvals

ATEX	Europe	II 3G Ex ic IIC T4 Gc IP64 II 3D Ex ic IIIC T135°C Dc IP64
IECEx	International	Ex ic IIC T4 Gc IP64 Ex ic IIIC T135°C Dc IP64
NEC500	North America	Class I Div. 2 Groups A, B, C, D T4 Class II Div. 2 Groups F, G T135°C Class III Div. 2
EAC	Russia	2Ex ic IIC T4 Gc X Ex ic IIIC T135°C Dc X

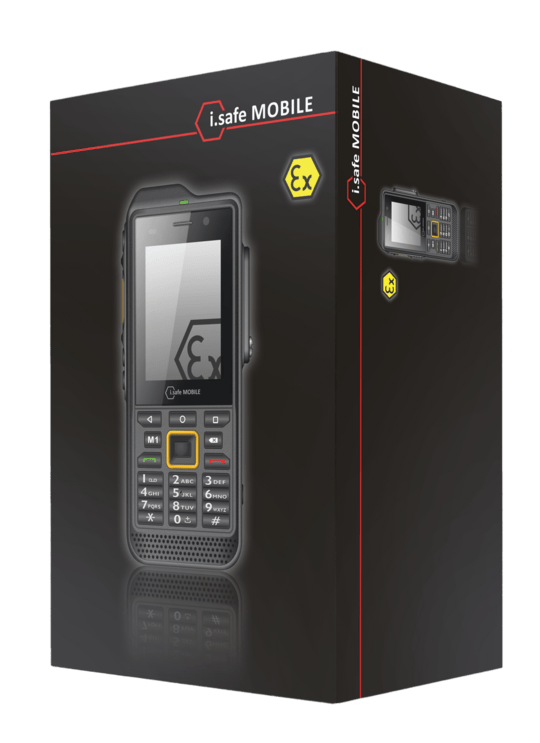

Mobile Phone
Battery
USB-C Cable
Power Adapter universal
Screwdriver

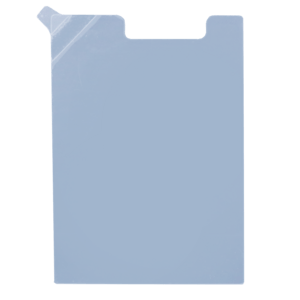

Display Protection Foil
Safety Instructions
Quick Start Manual

Downloads

Datasheet

Datasheet IS330.2 (English)

Download (PDF, 1 MB)

Manual

	Operating Manual IS330.2	Download (PDF, 4 MB)
	Safety Instructions IS330.2	Download (PDF, 1 MB)
	Quick Start Manual IS330.2	Download (PDF, 2 MB)
	IC Statement IS330.x	Download (PDF, 145 KB)
	FCC Statement IS330.x	Download (PDF, 274 KB)

Certificates

	DoC IS330.2	Download (PDF, 248 KB)
	ATEX IS330.2	Download (PDF, 899 KB)
	IECEx IS330.2	Download (PDF, 1 MB)
	NEC IS330.2	Download (PDF, 377 KB)
	EAC IS330.2	Download (PDF, 2 MB)

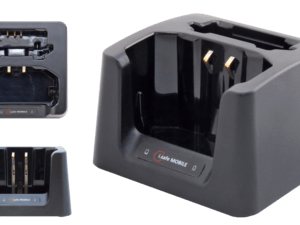

	DoC IS-DC330.1	Download (PDF, 237 KB)
