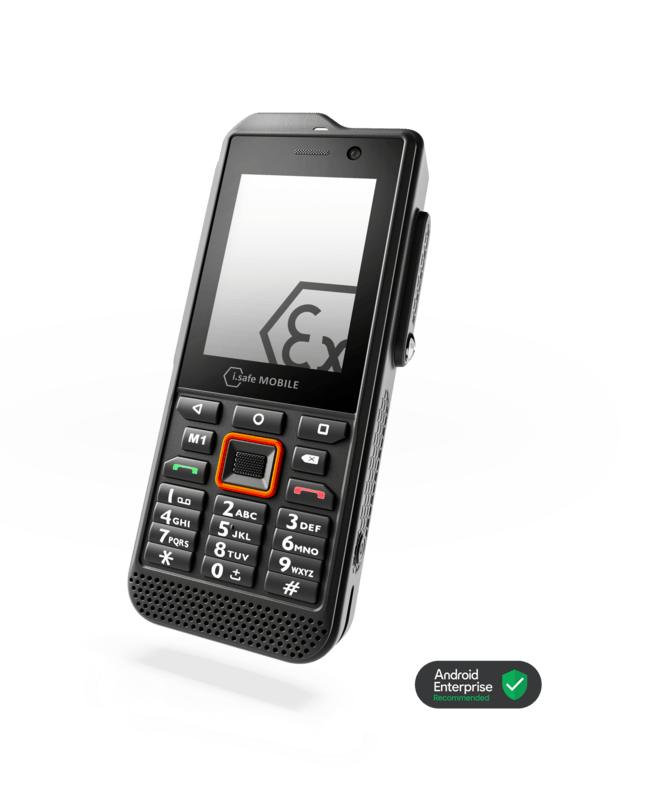

IS330.1

The professional cell phone can be used like a radio with its programmable key – with optional PTT. So it is also suitable for special MCPTT communication thanks to its ISM interface for use with other accessories such as an RSM or PTT headsets. The Android Enterprise Recommended device is zero-touch capable and is very easy to manage via an MDM system. The powerful battery and the option of charging via desktop or multi charger complete the highlights of this very robust mobile device, which also has a good feel.

Category: Products Zone 1/21

Description

Advantages

Further Features

Approvals

Contents

Downloads

Operating system	Android™ 10
Processor	Qualcomm® Snapdragon SDM660 Octa Core
Memory	4 GB RAM 64 GB internal memory microSD to 128 GB
Frequencies	2G GSM 850/900/1800/1900 MHz 3G WCDMA B1/2/4/5/8 4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12 MFBI/B13/B14/B17/B20/B25/B26/B27/B28A/B28B/B29/B30/B66 4G LTE-TDD: B38/B39/B40/B41 4G LTE-TD: B34/B38
Dimensions	Size: 152,6 x 64 x 26,7 mm Weight: 318,0 g
Display	2,6″ (6,604 cm) Corning® Gorilla® Glass V3 usable with gloves

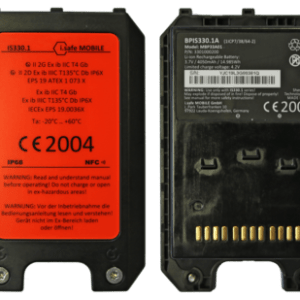

Battery	4050 mAh, 3,7 V replaceable
Camera	13 MP AF rear 5 MP FF front
Connectivity	Wi-Fi® 2.4 GHz + Wi-Fi® 5.0 GHz: IEEE 802.11 a/b/g/n/ac/e/k/r/h with hotspot Bluetooth® 5 GPS, A-GPS, Glonass, Beidou, Galileo Near Field Communication
Types of protection	IP68 dust-/waterproof MIL-STD 810G Usable from -20 °C to +60 °C

Advantages

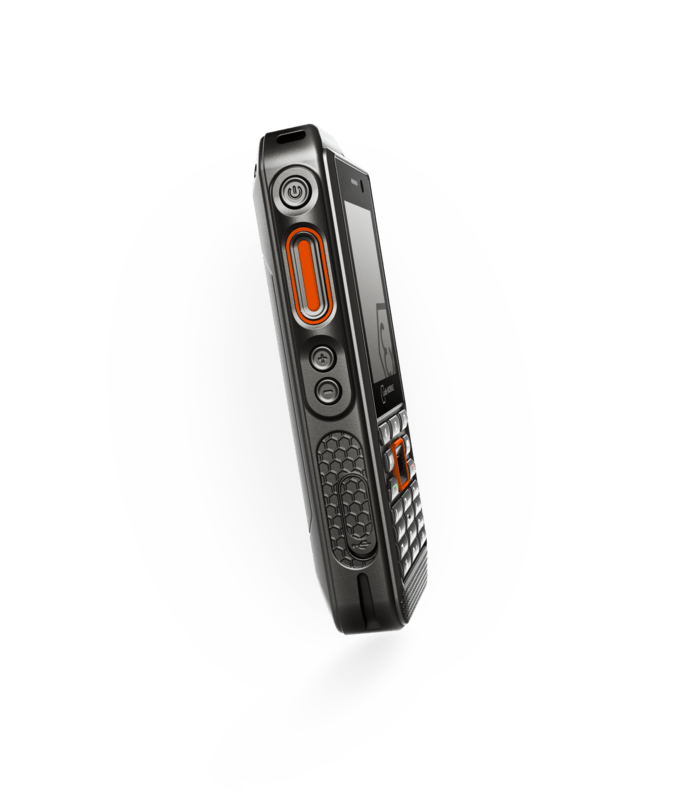

Professional push-to-talk key

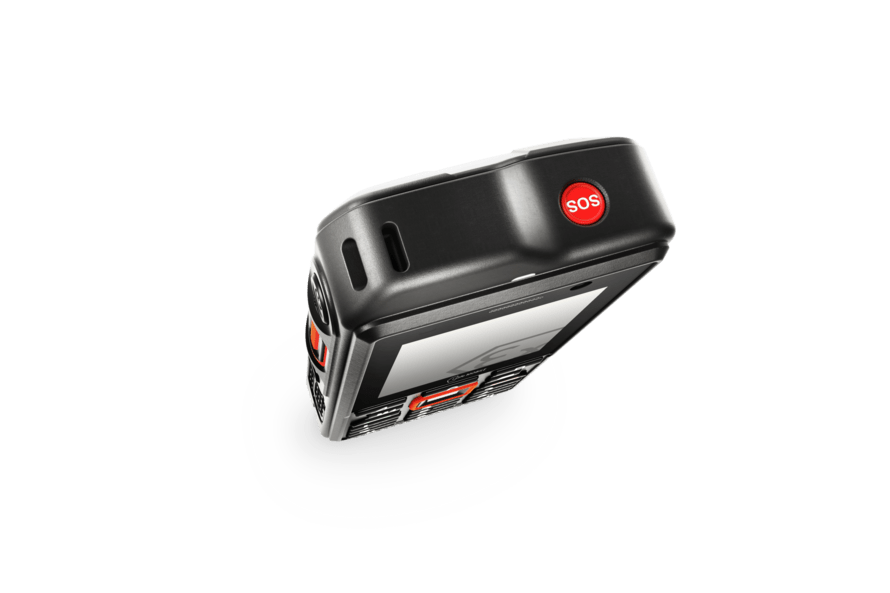

SOS key for loneworker protection
NFC access control
Universal, 13-pin ISM (multifunctional) interface for connecting additional devices for a wide range of applications
High-performance, replaceable battery for multiple shift operation
Android Enterprise Recommended
Zero-touch capable
Management via MDM system
Very user-friendly and easy to operate

Further Features

SOS key for loneworker protectionLWP ready (third party application required, based on country specific regulations)

Push-To-Talk keyPTT ready (third party application required, based on country specific approvals)

Amplified loudspeaker

Accelerometer, Gyroscope, Light, Magnetic, Proximity, Pressure sensors

Dual-Nano-SIM

Multifunctional, lateral ISM interface for a quick and safe connection of additional devices

USB-C, Desktop Charger

Freely programmable key

Download Datasheet

Approvals

ATEX	Europe	II 2G Ex ib IIC T4 Gb II 2D Ex ib IIIC T135°C Db IP6X
IECEx	International	Ex ib IIC T4 Gb Ex ib IIIC T135°C Db IP6X
ATEX	Europe	II 2G Ex ib IIC T4 Gb
IECEx	International	Ex ib IIC T4 Gb
NEC500	North America	Class I Div. 1 Groups A, B, C, D, T4 Class II Div. 1 Groups E, F, G, T135˚C Class III Div. 1
EAC	Russia	1Ex ib IIC T4 Gb X Ex ib IIIC T135°C Dc X
NEC500	North America	Class I Div. 1 Groups A, B, C, D, T4
Japan-Ex	Japan	Ex ib IIC T4 Gb Ex ib IIIC T135°C Db

Mobile Phone
Battery
i.safe PROTECTOR 2.0
Power Adapter universal
Screwdriver
Safety Instructions
Quick Start Manual
Display Protection Foil

Downloads

Datasheet

	Datasheet IS330.1 (English)	Download (PDF, 1 MB)
	Datasheet IS-RSMG2.1 (English)	Download (PDF, 502 KB)
	Product information warranty extension (English)	Download (PDF, 211 KB)

Manual

	Quick Start Manual IS330.1	Download (PDF, 2 MB)
	Operating Manual IS330.1	Download (PDF, 4 MB)
	Safety Instructions IS330.1	Download (PDF, 2 MB)
	IC Statement IS330.x	Download (PDF, 145 KB)
	FCC Statement IS330.x	Download (PDF, 274 KB)
	Quick Start Manual IS-DC330.1	Download (PDF, 543 KB)
	Manual IS-RSMG2.1	Download (PDF, 2 MB)

Certificates

	ATEX IS330.1	Download (PDF, 936 KB)
	IECEx IS330.1	Download (PDF, 1 MB)
	ATEX IS-RSMG2.1	Download (PDF, 1 MB)
	IECEx IS-RSMG2.1	Download (PDF, 1 MB)
	NEC IS330.1	Download (PDF, 415 KB)
	EAC IS330.1	Download (PDF, 2 MB)
	NEC IS-RSMG2.1	Download (PDF, 338 KB)
	Japan-Ex, CSA IS330.1	Download (PDF, 181 KB)
	Japan-Ex, CSA IS330.1	Download (PDF, 181 KB)
	DoC IS330.1	Download (PDF, 248 KB)
	DoC IS-RSMG2.1	Download (PDF, 250 KB)
	DoC IS-DC330.1	Download (PDF, 237 KB)
