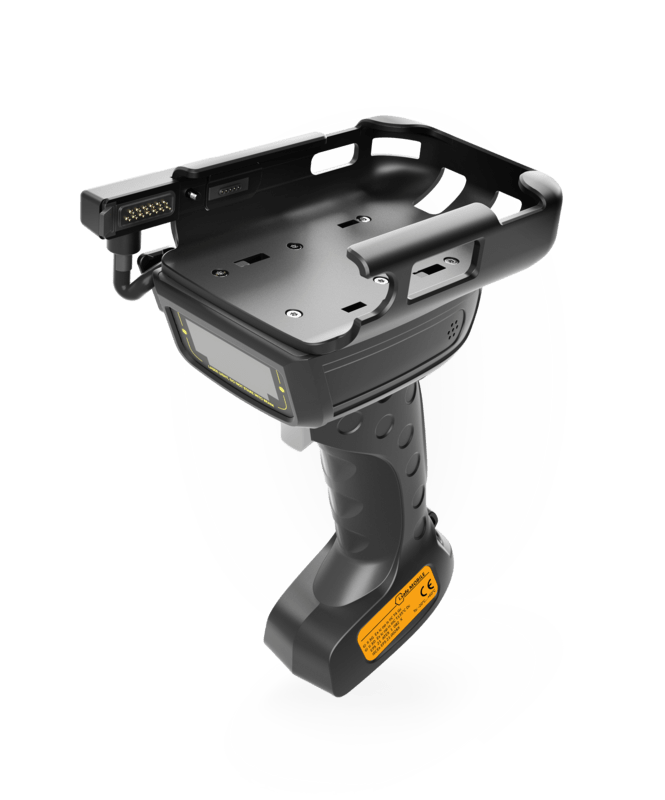

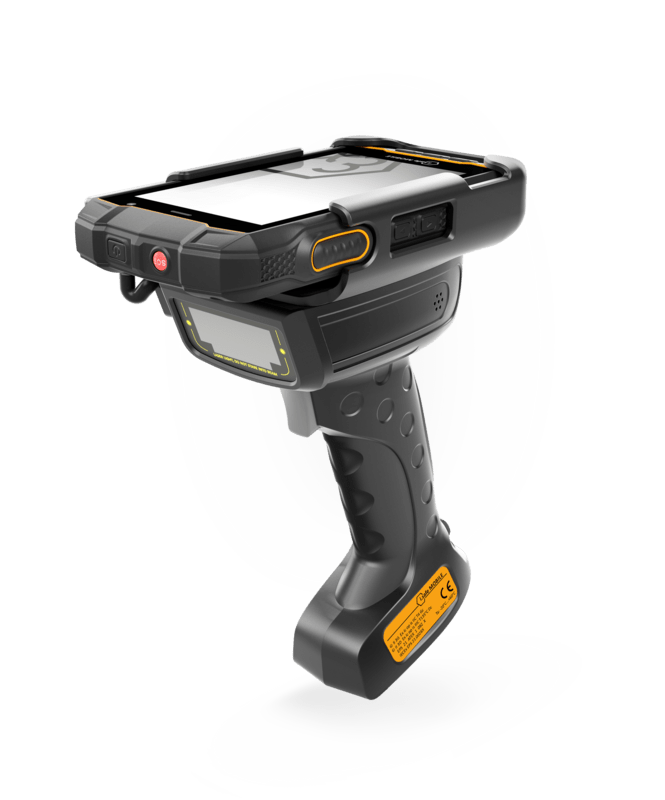

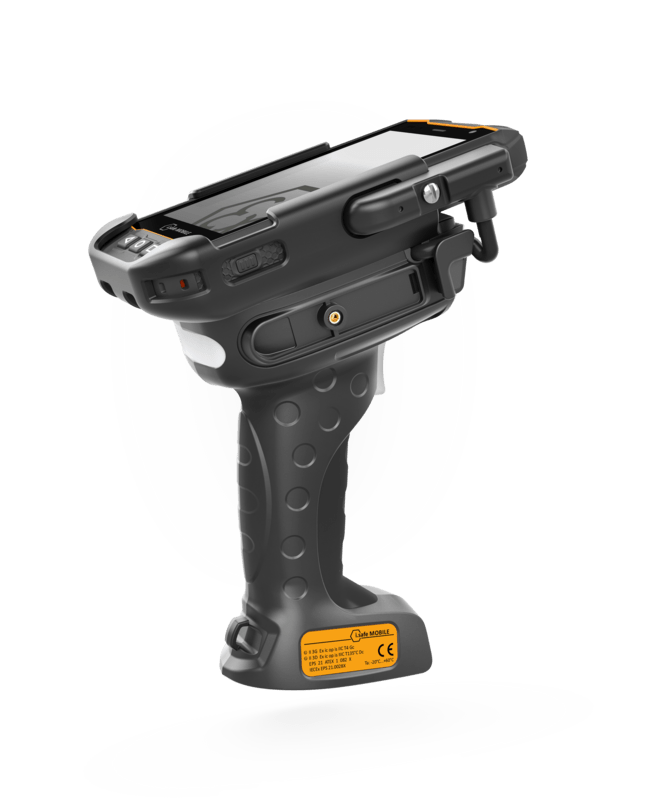

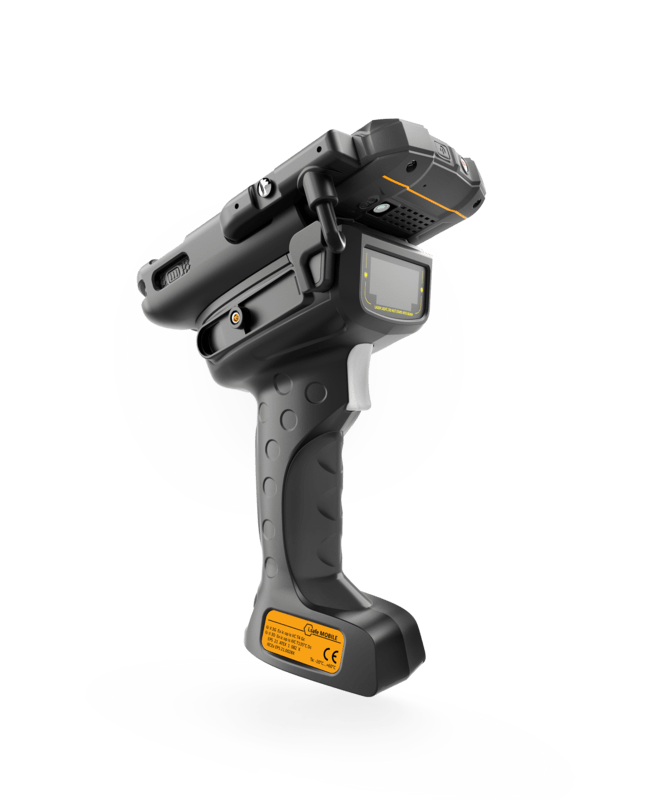

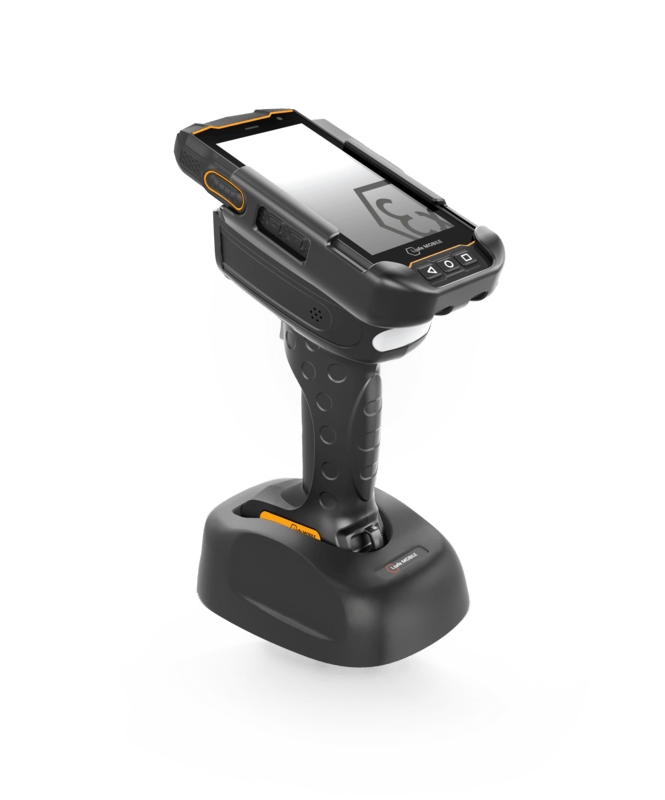

The mobile multifunctional set consisting of a Trigger Handle (hand-held barcode scanner) and an industrial smartphone IS530.x is a flexible combination for reliable data acquisition in industrial areas. The HID-active, ready-to-use high-performance scanner captures any 1D or 2D barcodes up to 18 meters via the reliable Zebra OEM imager scan engines . The data is further processed directly via the IS530.x smartphone connected via the ISM interface.
| Dimensions | Size: 202 x 90,4 x 127 mm Weight: 377,1 g |
|---|---|
| Types of protection | IP68 dust-/waterproof MIL-STD 810H Usable from -20 °C to +60 °C |
| Scan type options | ER (extended range) Zebra SE4850 ER (~18 m) |
 ATEX |
Europe | II 3G Ex ic op is IIC T4 Gc II 3D Ex ic op is IIIC T135°C Dc |
 IECEx |
International | Ex ic op is IIC T4 Gc Ex ic op is IIIC T135°C Dc |
 NEC500 |
North America | Class I Div. 2 Groups A, B, C, D, T4 Class II Div. 2 Groups F, G, T135°C Class III Div. 2 |
 PCEC |
China | Ex ic op is IIC T4 Gc Ex ic op is IIIC T135°C Dc |
 |
Datasheet IS-TH1xx.2 (English) | Download (PDF, 1 MB) |
 |
Manual IS-TH1xx.2 | Download (PDF, 2 MB) |
 |
Manual IS-DCTH1.1 | Download (PDF, 356 KB) |
 |
Manual IS-MCTH1.1 | Download (PDF, 325 KB) |
 |
ATEX IS-TH1xx.2 | Download (PDF, 850 KB) |
 |
IECEx IS-TH1xx.2 | Download (PDF, 1 MB) |
 |
NEC IS-TH1xx.2 | Download (PDF, 941 KB) |
 |
PCEC IS-TH1ER.2 | Download (PDF, 617 KB) |
 |
DoC IS-TH1xx.2 | Download (PDF, 247 KB) |
 |
DoC IS-DCTH1.1 | Download (PDF, 240 KB) |
 |
DoC IS-MCTH1.1 | Download (PDF, 239 KB) |
