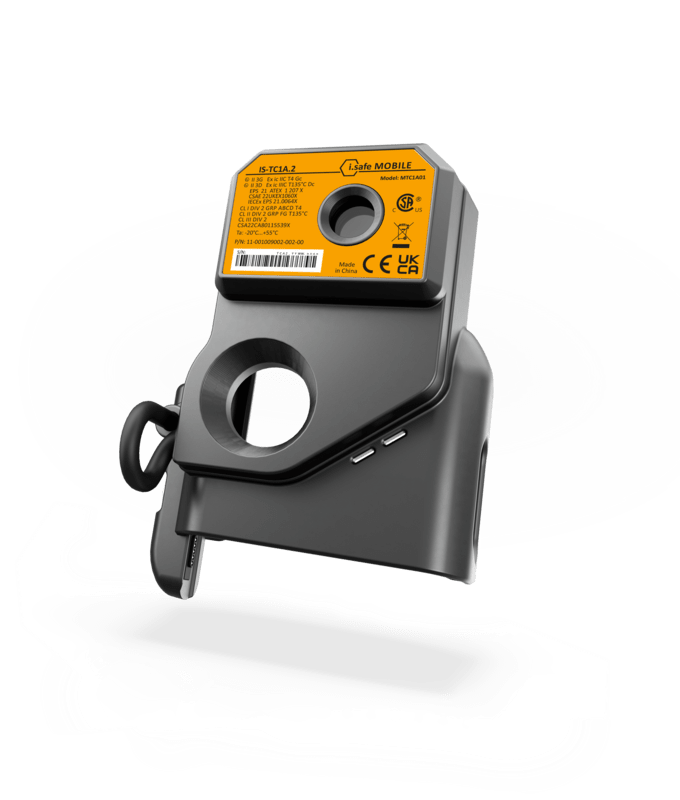

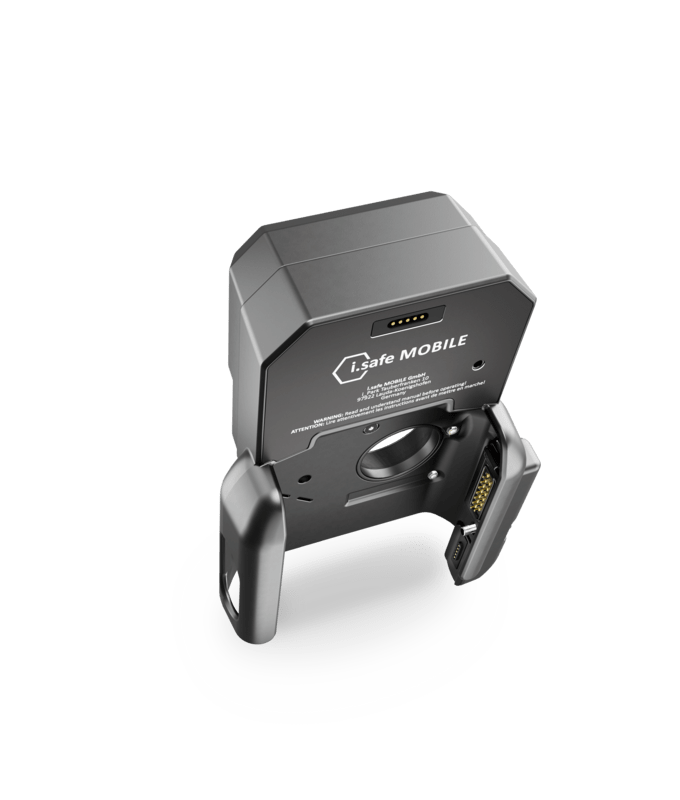

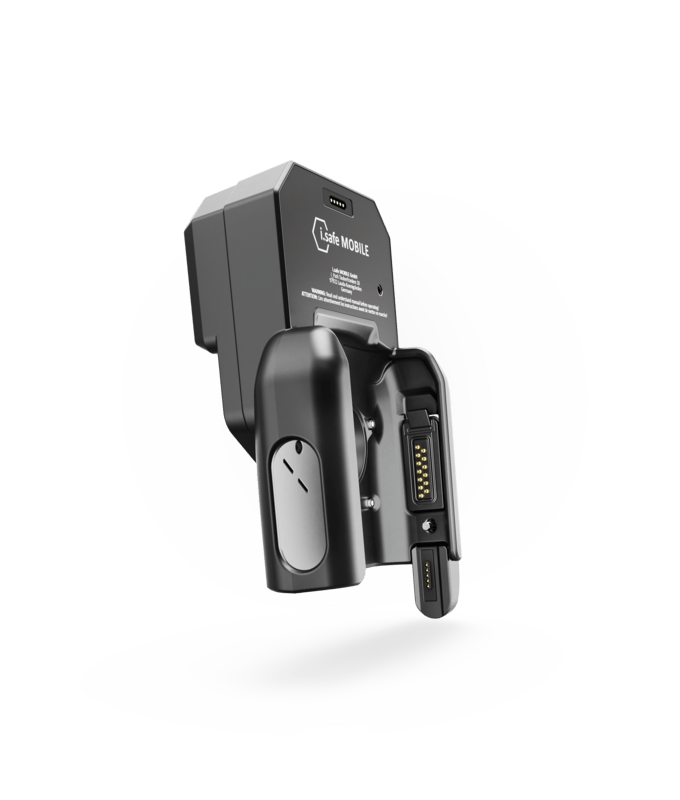

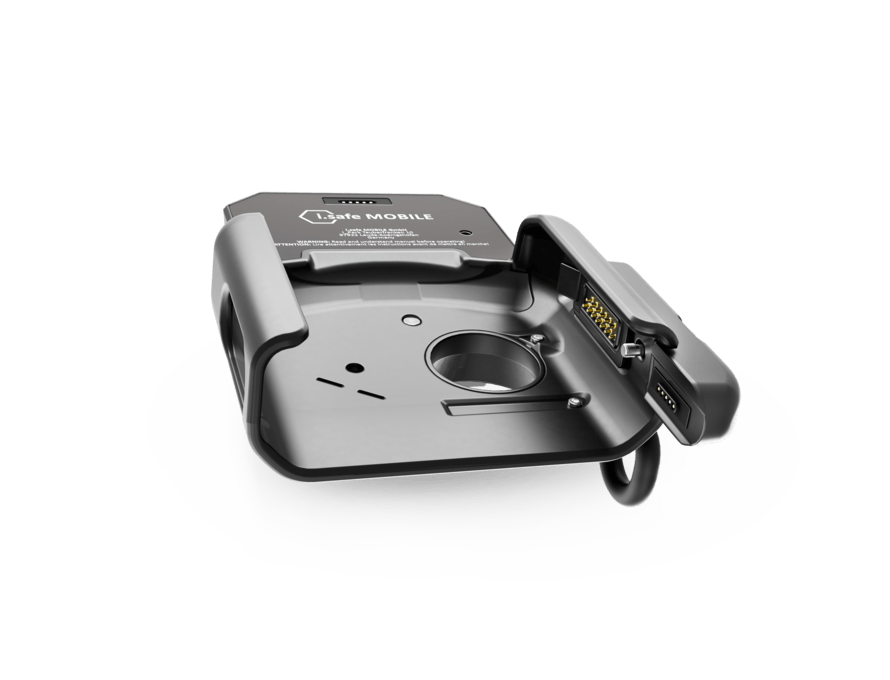

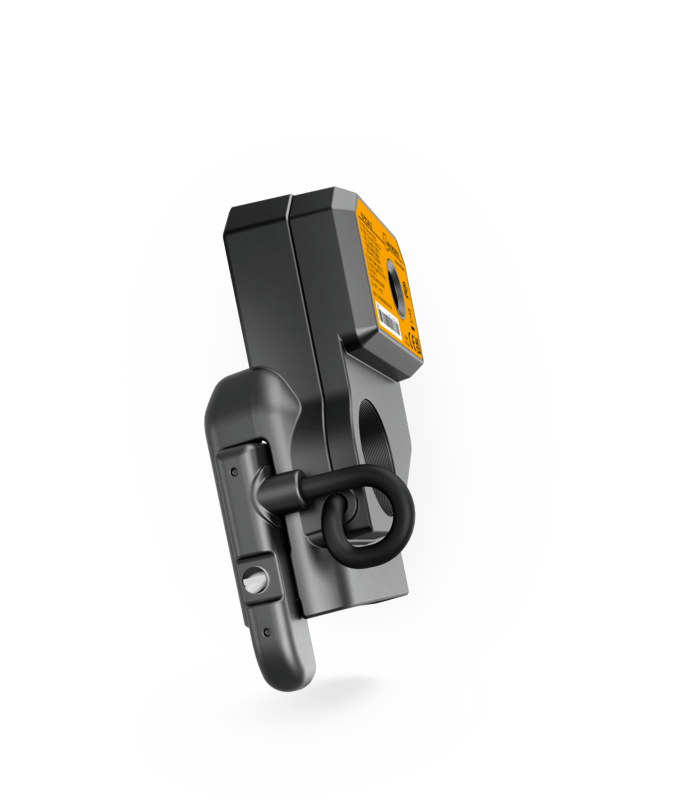

The thermal camera IS-TC1A.2, in combination with the industrial smartphone IS530.2 detects temperatures in the Ex-hazardous area from -40 °C to 330 °C in a matter of seconds via the Seek Thermal app (free download in Google Play Store). The thermal images and videos are processed and documented directly via the ISM interface of the IS530.2 smartphone.
| Sensor resolution | 200 (h) x 150 (v) 30000 pixel FixFocus Digital zoom via App |
|---|---|
| Sensor sensitivity | 65 mK (typical) |
| Frame rate | <9 Hz bis 32 Hz |
| Scene dynamic range | -40 °C bis 330 °C |
| Temperature accuracy | ±7 °C and 7 % (at 5 °C to 140 °C) ±10 °C and 10 % (at 140 °C to 330 °C) |
| Field of view | 35° (HFOV) 26° (VFOV) |
| Detection range | up to 300 m |
| Recognition range | up to 75 m |
| Identification range | up to 25 m |
| Dimensions | Size: 112 x 82 x 50 mm Weight: 195 g |
| Types of protection | IP67 MIL-STD 810H Usable from -20 °C to +55 °C |
 ATEX |
Europe | II 3G Ex ic IIC T4 Gc II 3D Ex ic IIIC T135°C Dc |
 IECEx |
International | Ex ic IIC T4 Gc Ex ic IIIC T135°C Dc |
 UKEX |
United Kingdom | II 3G Ex ic IIC T4 Gb II 3D Ex ic IIIC T135°C Db |
 NEC500 |
North America | Class I Div 2 Groups A, B, C, D, T4 Class II Div 2 Groups F, G , T135˚C Class III Div 2 |
 |
Datasheet IS-TC1A.2 (English) | Download (PDF, 2 MB) |
 |
Operating Manual/Safety Instructions IS-TC1A.2 | Download (PDF, 3 MB) |
 |
ATEX IS-TC1x.2 | Download (PDF, 751 KB) |
 |
IECEx IS-TC1x.2 | Download (PDF, 1,006 KB) |
 |
NEC IS-TC1x.2 | Download (PDF, 1 MB) |
 |
DoC IS-TC1x.2 | Download (PDF, 257 KB) |
