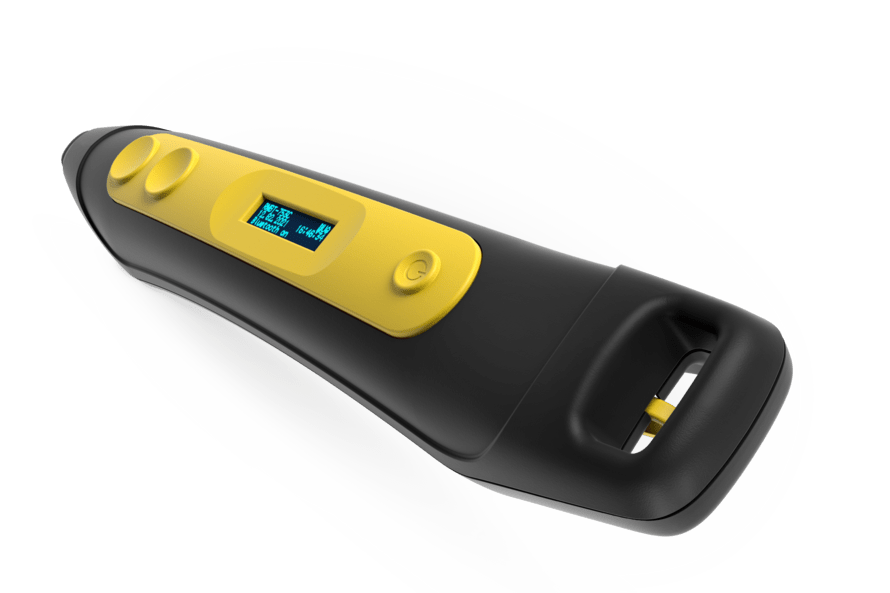

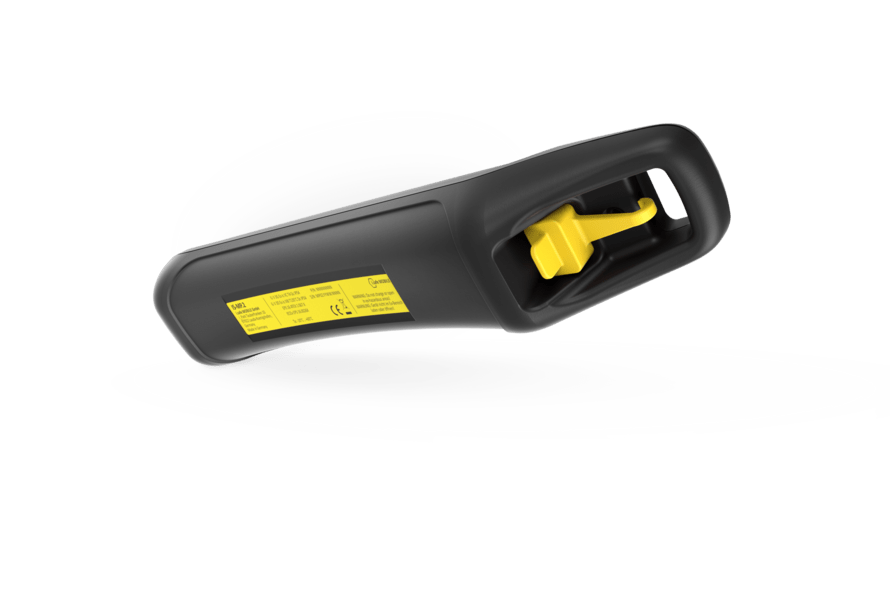

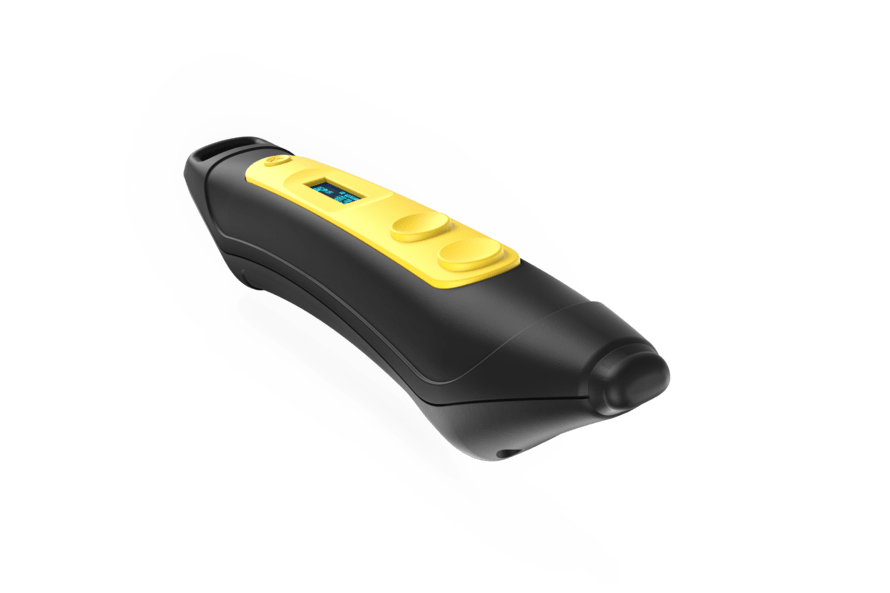

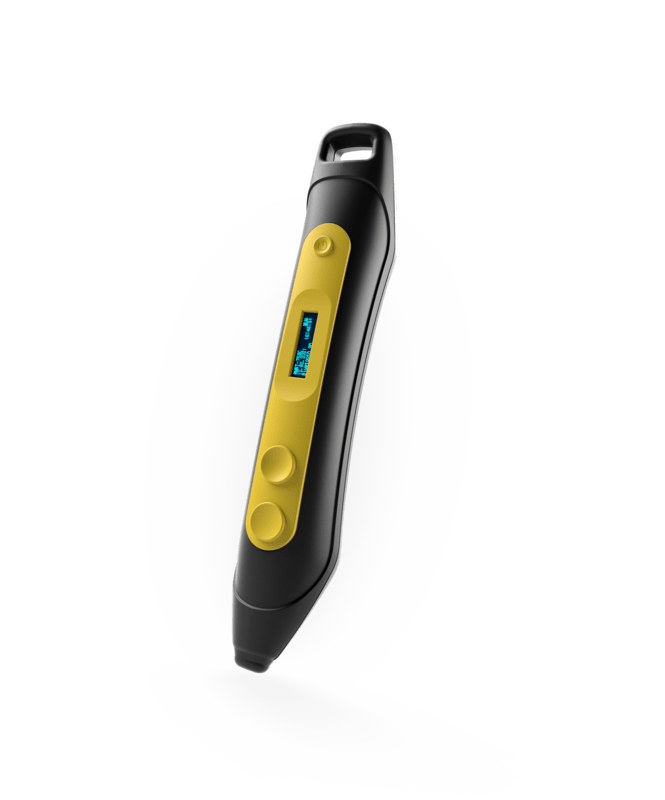

The Handheld Reader facilitates the uncomplicated and efficient reading of RFID/NFC tags with different frequency range combinations, especially in hard-to-reach places. The RFID/NFC tag information can be read directly on the OLED display, transmitted via Bluetooth® or read out via USB. Due to its easy handling, the IS-MP.2 supports process optimization in the areas of maintenance, inventory, guard control systems and logistical processes.
| Dimensions | Size: 189,1 x 34,8 x 37,6 mm Weight: 160 g |
|---|---|
| Battery | 2000 mAh |
| Connectivity | Bluetooth® 4.0 |
| Types of protection | IP54 Usable from -20 °C to +60 °C |
| RFID frequency | LF: 125 kHz / HF: 13,56 MHz / UHF: 868 MHz (US-Version: 915 MHz) |
 ATEX |
Europe | II 3G Ex ic IIC T4 Gc IP54 II 3D Ex ic IIIB T135°C Dc IP54 |
 IECEx |
International | Ex ic IIC T4 Gc IP54 Ex ic IIIB T135°C Dc IP54 |
 NEC500 |
North America | Class I Div. 2 Groups A, B, C, D, T4 Class II Div. 2 Groups F, G T135°C Class III Div. 2 |
 |
Datasheet IS-MP.2 (English) | Download (PDF, 687 KB) |
 |
Manual IS-MP.2 | Download (PDF, 705 KB) |
 |
DoC IS-MP.2 | Download (PDF, 247 KB) |
 |
ATEX IS-MP.2 | Download (PDF, 794 KB) |
 |
IECEx IS-MP.2 | Download (PDF, 1 MB) |
 |
NEC IS-MP.2 | Download (PDF, 220 KB) |
