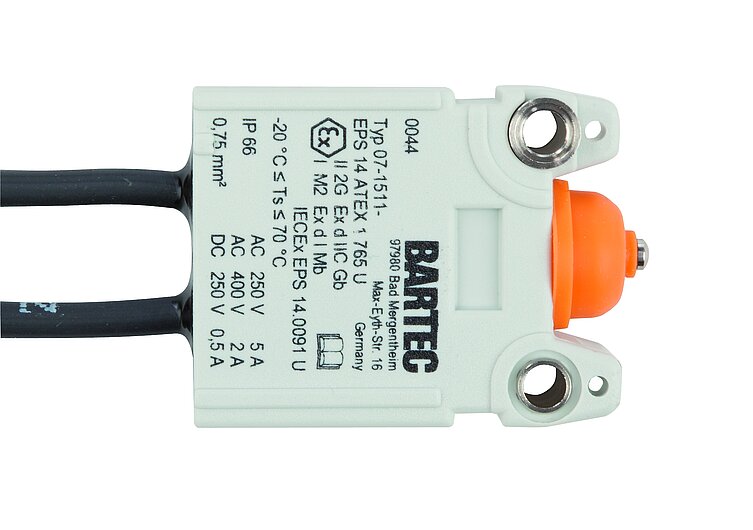

This switching element can be universally used for switching, controlling and regulating operations within Ex-areas. The insert switch is audited by EPS according to the latest ATEX-Guideline 2014/34/EC. Devices equipped with these insert switches have to be approved by a testing authority, the switch itself needs not be retested. The cores are cast-in at the back of the switch. Their standard length is 500 mm; other lengths are available on request. To connect the cores we recommend the miniterminals from BARTEC.
| Protection class | IP 66 (IEC 60529) |
|---|---|
| Dimensions | see data sheet |
| Material | plastic (thermoplastics), plunger/additional actuator: stainless steel |
| Contact material | Silver or gold-coated contacts (all contact elements have a standard protective gold-coating as standard) |
| Mechanical life | >2 x 106 switching cycles |
| Weight | with 500 mm cores: single-break switch 35 g, double-break switch 70 g |
| Voltage | see data sheet |
| Current | see data sheet |
