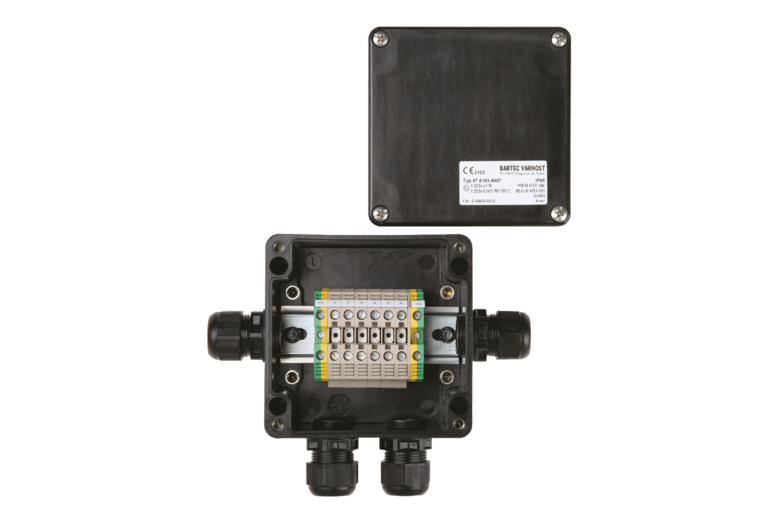

Polyester distribution boxes have been of great advantage in many industrial plants. They offer safe protection even when they are exposed to extreme environmental conditions, aggressive chemical media or high mechanical stress. The narrow sides within the enclosure hold threaded bushings for the fixing of terminal rails or mounting panels. The enclosure is mounted by means of insulated screws outside of the lid sealing gasket.These black high-quality explosion-proofed enclosures are used in hazardous areas by inflammable gas (Zone 1 and 2) and dust (Zone 21 and 22). The fundamental prerequisites of the “protection through enclosure“ protection class are fulfilled with the heating up calculation as per the accompanying sheet and a separate IP protection test.
ATEX:Ex II 2G Ex eb ia ib IIA, IIB or IIC T6, T5, T4 oder T3 GbEx II 2G Ex tb ia ib IIIA, IIIB oder IIIC, T80°C, T95°C oder T130°C Db
IECEx:Ex eb ia ib IIA, IIB, or IIC T6, T5, T4, or T3 GbEx tb ia ib IIIA, IIIB, or IIIC, T80 °C, T95 °C,or T130 °C Db
Dependent on installed components. Please pay attention to the information on the marking plate.-60 °C to max. +80 °C (-76 °F to max. +176 °F)
| Protection class | IP66 (IEC/ EN 60529) |
|---|---|
| Dimensions | see data sheet |
| Material | glass-fiber reinforced polyester, EN 60079-0 halogen-free, RAL 9005 (black) or RAL 7000/7001 (grey) |
| Weight | see datasheet |
| Voltage | max. 1000 V |
| Current | see operating instructions |
| Surface resistance | black enclosure (RAL 9005) 10^9 Ω grey enclosure (RAL7000/7001) > 10^12 Ω |
