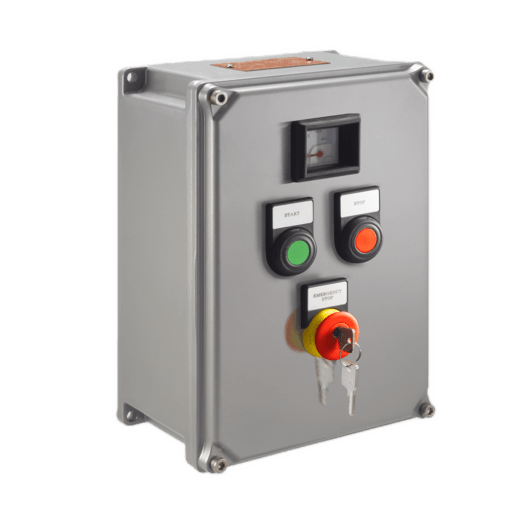

csm_02_ASP297-VAR1__471c8dcd2dcsm_02_ASP297-VAR1__471c8dcd2d

ESACS – ESXCS control station

Increased safety aluminium and stainless steel control station for zone 1/2 – 21/22
ESACS..
ESXCS..
  • Different configurations available
  • IP 66
  • for the control and start-stop of equipment
Request Quote


    Email Verification Code (required)



    Category:
    Description
    Technical Data
    Manuals/Operating Instructions/Guides
    Declarations
    Data Sheets

    Increased safety Ex ed Control stations BARTEC ESACS.. and ESXCS.. series are designed to be installed in industrial plants, where potential hazardous atmos-pheres occur.These areas are either classified as zone 1 and 2 or as zone 21 and 22.The protection mode are:

    Marking

    ATEX:(Ex II 2 G) Ex d e ia/ib mb IIC T6 orT5 or T4 Gb(Ex II 2 D) Ex tb IIIC T85°C or T100°C or T135°C Db IP65/IP66(Ex II 3 GD) Ex ec ia/ib IIB or IIC T6 orT5 or T4 Gc(Ex II 3 GD) Ex tc IIIC T85°C or T100°C or T135°C Dc IP65/IP66IECEx:Ex d e ia/ib ia ib mb IIC T6 / T5 / T4 / T3 GbEx tb IIIC T85°C / T100°C / T135°C / T200°C Db IP65/IP66Ex ec ia/ib/ic IIB or IIC T6 / T5 / T4 /T3 GbEx tc IIIC T85°C / T100°C / T135°C / T200°C Db IP65/IP66

    Ambient Temperature

    -60 °C to +60 °C (standard)

    Certification

    Technical Data

    Protection class IP 66 (IEC/EN 60529)
    Material Copper free aluminium light alloy
    Stainless steel AISI 316L
    Weight see data sheet
    Dimensions see data sheet

    Manuals/Operating Instructions/Guides

      ATEX – Instruction for use
      ATEX – Instruction for use – Component
      ATEX – Instruction for use – ESAnA
      IECEx – Instruction for use
      IECEx – Instruction for use – Component
      IECEx – Instruction for use – ESAnA
      INMETRO – Instruction for use
      INMETRO – Instruction for use – ESAnA
      KOC – Instruction for use
      NEC505 – Instruction for use – ESA
      NEC505 – Instruction for use – ESX

    Declarations

      ATEX – Declaration of conformity
      ATEX – Declaration of conformity – Component
      ATEX – Declaration of conformity – ESAnA
      IECEx – Declaration of conformity – Component
      IECEx – Declaration of conformity – ESAnA

    Data Sheets

      Data sheet – Ex ed Control stations
