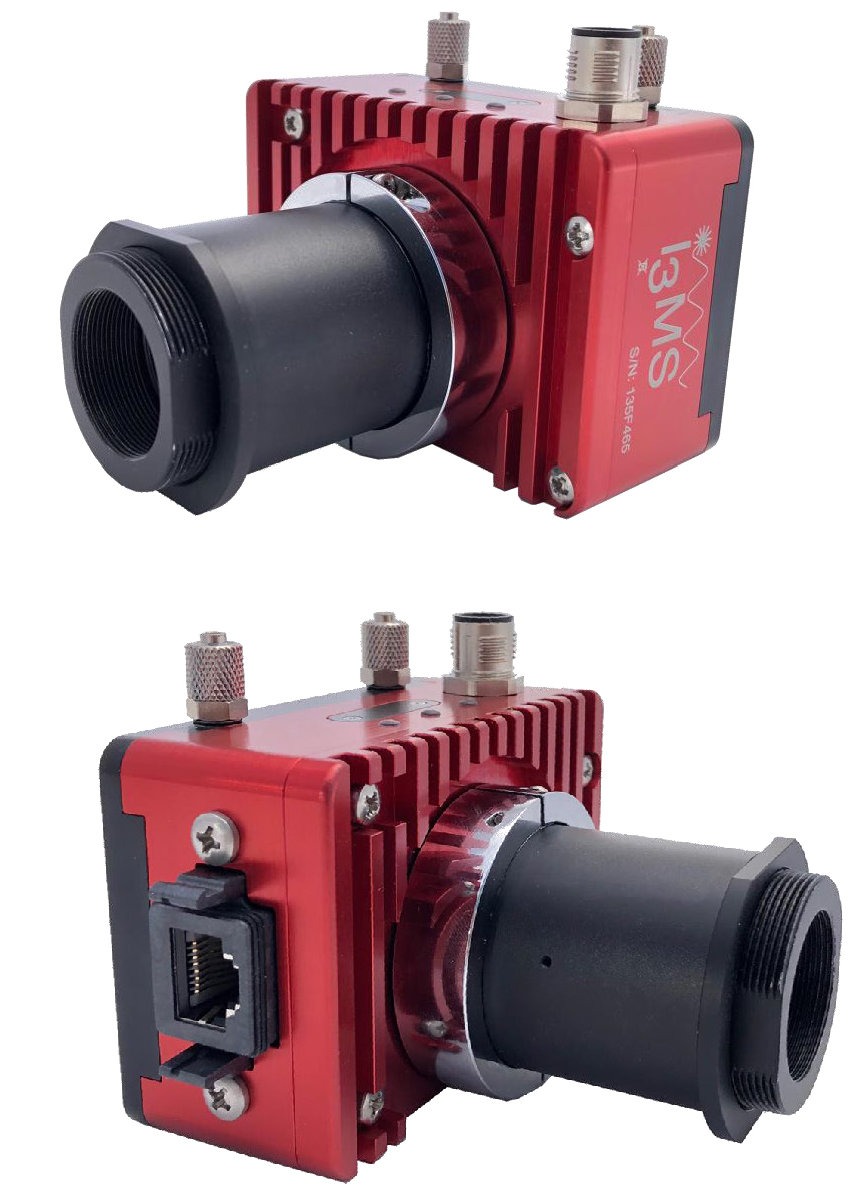

| Components | Infrared camera with real-time processing electronics and waterblock Connection box, multi I/O cable (3 m), power supply (24 VDC) Software package for system configuration, datalogging and log files analysis Infrared emmiter for optical calibration |
|---|---|
| Process compatibility | Laser welding, arc welding, LMD, cladding, WAAM, others |
| Mechanical integration | Coaxial & off-axis operation |
| Laser optics compatibility (For coaxial integration) |
Transmission of infrared signal (above 1.1 um) from the process area to the optical port is required* |
| Output | Analog signal output (0 VDC – 10 VDC) proportional to width of melt pool / HAZ Configurable span |
| Dimensions (mm) | Infrared camera: 88 mm x 60 mm x 92 mm Connection box: 124.5 mm x 102 mm x 28 mm |
| Weight | 0.5 kg |
| Power supply | 24 VDC, 6 W Power supply included |
| Imaging lens | CaF2, f=50 mm, F#2.25 with manual focus mechanism (other focal lengths available) |
| Mechanical enclosure (camera) |
IP67 rated mechanical enclosure with embedded heatsink Embedded waterblock for air / water cooling |
| Mechanical interface (front side of optics) |
C-mount thread with counterthread for tight adjustment |
| Field of view Resolution per pixel |
VPD PbSe camera, 64×64 pixels (pixel size: 50 microns) MWIR response (1 -5 um), frame rate 1000 images per second |
| Communication interface | Gigabit Ethernet (RJ-45) |
| Software | I3MS Acquisition and Configuration SW v.1.0 NIT Visualization SW v.2.1 |
| Minimum requirements | PC with processor i5, RAM memory: 8 GB Hard disk available: 1 GB, O.S.: Windows 10 or later (32/64 bits) |
| Process monitoring configuration | Selectable configurations: Manual, Tracks, Continuous Track length (Tracks mode), Alarm levels, Alarm delay Laser ON delay & autodetection |
| Indicators | Melt pool / HAZ width, Infrared image, Laser status Alarm (2 configurable alarm levels) |
| Other features | Laser ON/OFF digital input (optocoupled) Monitoring alarm digital output (optocoupled) Process data logging, Circular & rectangular Region-Of-Interest (ROI) |
| Accessories | 3-color light pole indicator |
