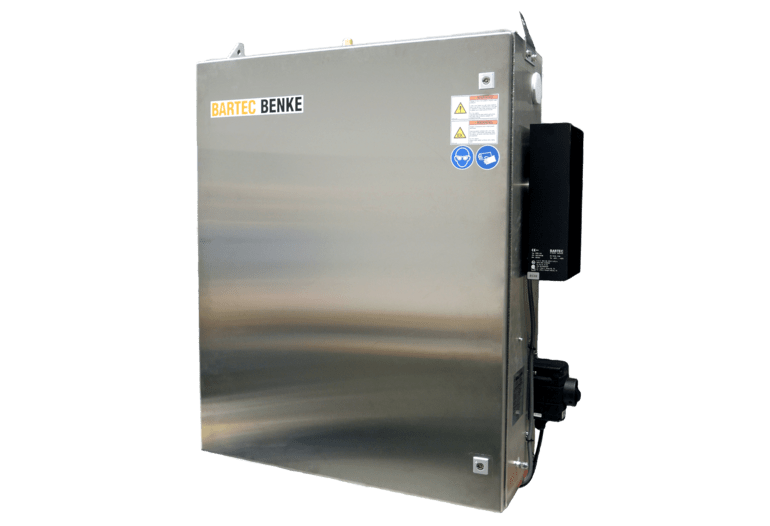

The Sample Conditioning System Type 5987-72 (SCS – HCDT) is designed to condition gaseous media for determining the hydrogen and hydrocarbon dew point in conjunction with the gas composition analyzer Hygrophil F/HCDT. The SCS – HCDT consists of various functional groups, which are custom designed and assembled for the relevant analysis task. The combination of individual components/assemblies does not result in any additional ignition hazards. The SCS – HCDT is suitable for operation in Zone 1.
| Materials | Stainless Steel 1.4404 (and better) |
|---|---|
| Sample Inlet | Inlet Pressure: 500 kPa to 10 MPa (72.5 psi to 1450 psi) Inlet Temperature: -20 °C to 60 °C (-4 °F to 140 °F) Process Connection: 6 mm and 12 mm tube fittings (others on request) |
| Sample Outlet | Outlet Pressure: up to 380 kPa Outlet Temperature: 5 °C to 40 °C (41 °F to 104 °F) |
| Electrical Data | Rated voltage: 230 VAC ± 10% 1Ph. 50 Hz Rated current: approx. 4 A at 230 V without trace heating Rated current: approx. 11 A at 230 V with trace heating Power consumption: approx. 900 W (nominal) Power consumption: approx. 2400 W (with trace heating) |
| Dimensions | Width: 915 mm Height: 1070 mm Depth: 300 mm Weight: approx. 90 kg |
| Ambient conditions | Standard Temperature Range: 5 °C to 40 °C Extended Temperature Range on request Relative Humidity: 5 % to 100 % (non condensing / non corrosive) |
| Explosion Protection | ATEX II 2G Ex h IIC T3 Gb X |
| Ready for Hydrogen | Hydrogen conent in Natural Gas ≤ 10 Mol %: on request Hydrogen conent in Natural Gas ≤ 20 Mol %: on request Operation in pure Hydrogen: on request |
