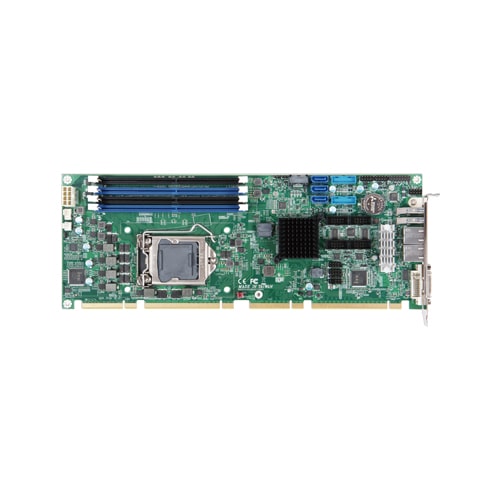

This product is a PICMG 1.3 form factor industrial mainboard which based on Intel® Core™Processors that offer 14nm Hi-K process technology with energy efficient architecture, GSPI-Q4700-LLVA adopts four DDR4 UDIMM sockets and supports up to 128GB Non-ECC memory, PICMG 1.3 solutions are suitable for factory automations. Moreover, with the high performance and high-end specifications. GSPI-Q4700-LLVA is our Comet Lake-S platform architecture on Industrial Motherboard product line.
Factory automation
Factory production/measurement line
Building Automation / Control room
Factory manufacturing equipment
| Type | PICMG 1.3 |
|---|
| Supported OS | Windows 10 IoT Enterprise 2019 LTSC 64-bit |
|---|
| CPU Generation (Development code) | 10th Gen. (Comet Lake-S) |
|---|---|
| Processor | Core i9-10900E; Core i9-10900TE; Core i7-10700E; Core i7-10700TE; Core i5-10500E; Core i5-10500TE; Core i3-10100E; Core i3-10100TE; Pentium G6400E; Pentium G6400TE; Celeron G5900E; Celeron G5900TE |
| CPU socket | LGA1200 |
| Memory | up to 128GB |
| RAS | Hardware monitor (Fan speed / Temperature / Voltage) |
| GPU | – |
| AI Performance | – |
| Security | TCG TPM 2.0 |

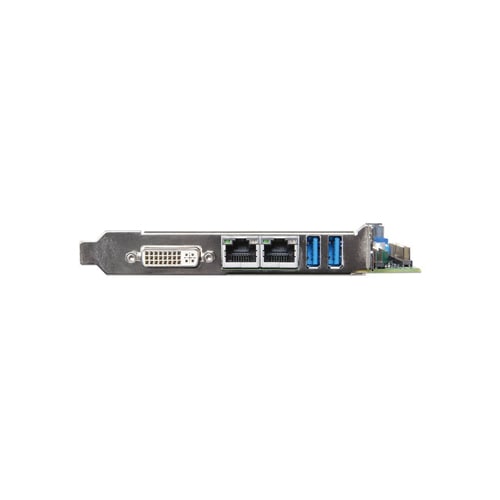

| Video | 1x DVI-I |
|---|---|
| LAN | 2x 1000BASE-T |
| Wireless | – |
| Audio | – |
| I/O | 2x USB3.2 Gen2 (USB3.1) |
| Memory card | – |
| Video | 1x HDMI |
|---|---|
| LAN | – |
| Audio | 1x Line out; 1x Line in; 1x Mic-in |
| I/O | 4x USB3.2 Gen2; 2x RS-232C; 2x RS-232C/422A/485 |
| Power connector | – |
| Expansion bus | 1x PCI Express(x8) + 2x PCI Express(x4); 1x PCI Express(x16); 2x PCI Express(x8) |
|---|---|
| Drive bay | – |
| Input voltage | – |
|---|
| Operating temperature | 0 to 60°C (32 to 140°F) |
|---|---|
| Storage temperature | -20 to 80°C (-4 to 176°F) |
| Standards & Certifications | CE; FCC Class A |
| Model | Description | Certification |
|---|---|---|
| GSPI-Q4700-LLVA | Industrial Single Board Computer – PICMG 1.3 / Intel 10th Gen. Processor (Comet Lake – S Platform) / Q470E (LGA1200) *1 |
|
