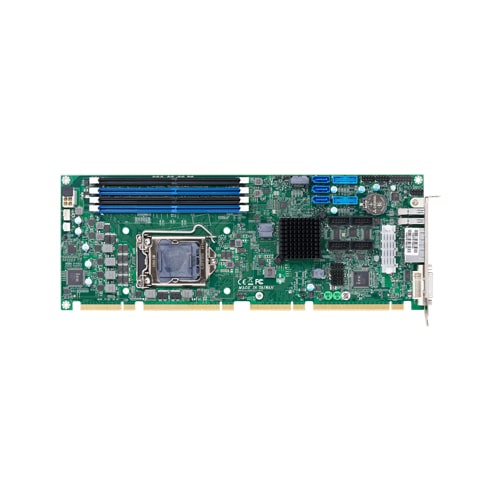

GSPI-Q1700-LLVA_img1GSPI-Q1700-LLVA_img1

GSPI-Q1700-LLVA

  • Uses processors from the 6th and 7th Gen. of the Intel® Core™ processor family
  • Support multiple displays by DVI-I(DVI-D+VGA) and HDMI
  • Rich variety of interfaces for freely expandable peripherals

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: GSPI-Q1700-LLVA Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    GSPI-Q1700-LLVA, a PICMG 1.3 Single Host Board (SHB) with the latest Intel 7th and 6th Generation Core processors and Socket supported LGA 1151. GSPI-Q1700-LLVA implements flexible PCI Express Gen 3 expansion by one PCI Express x16 or two PCI Express x 8 or one PCI Express x8 and two PCI Express x4 with dedicated processor SKU, which is ideal for a range of applications, such as Industrial Automation, Digital Signage, and Medical. GSPI-Q1700-LLVA adopt Intel Q170 PCH. Providing up to 32GB DDR4 system memory supported non-ECC option

    • Uses processors from the 6th and 7th Gen. of the Intel® Core™ processor family
      • By supporting processors from the 6th and 7th Gen. of the Intel® Core™ processor family, this product can supply the high performance of four-core CPUs.
    • Support multiple displays by DVI-I(DVI-D+VGA) and HDMI
      • GSPI-Q1700-LLVA with the 7th and 6th generation Intel® processor family features and integrated, enhanced graphics engine which provides significant 3D performance, up to DirectX® 12. It supports triple display function via DVI-I (VGA and DVI-D) and HDMI up to 4Kx2K.
    • Rich variety of interfaces for freely expandable peripherals

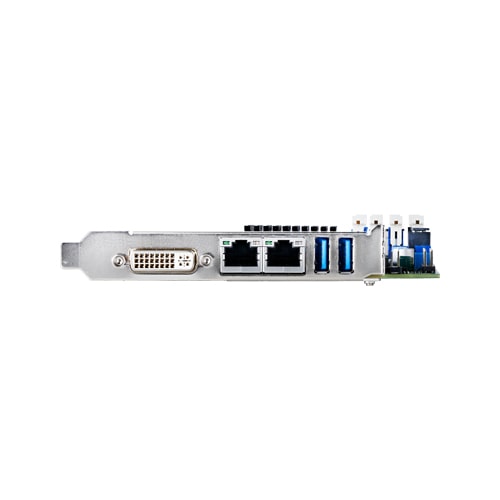

      • This product is equipped with expansion interfaces including DVI-I x 1, HDMI x 1, 10x USB3.0, 2x USB2.0, 6x SATA III ports (dual ports via backplane), 2x RS232 ports, 2x smart COM ports which select RS232/422/485 mode by BIOS adjustment, and dual Intel GbE LAN ports.

    Specifications

    Specifications
    Form Factor
    Type PICMG 1.3
    Software Support
    Supported OS Windows 10; Windows 8.1; Windows 7
    Core System
    CPU Generation (Development code) 7th Gen. (Kaby Lake-S); 6th Gen. (Skylake-S)
    Processor Core i7-7700; Core i7-7700T; Core i7-6700; Core i7-6700TE; Core i5-7500; Core i5-7500T; Core i5-6500; Core i5-6500TE; Core i3-7101E; Core i3-7101TE; Celeron G3930E; Celeron G3930TE; Celeron G3900; Celeron G3900TE
    CPU socket LGA1151
    Memory up to 32GB
    RAS Hardware monitor (Fan speed / Temperature / Voltage)
    GPU –
    AI Performance –
    Security TCG TPM 2.0
    Interface
    Video 1x DVI-I
    LAN 2x 1000BASE-T
    Wireless –
    Audio –
    I/O 2x USB3.2 Gen2 (USB3.1)
    Memory card –
    Internal Interface
    Video 1x HDMI
    LAN –
    Audio 1x Line out; 1x Line in; 1x Mic-in
    I/O 8x USB3.2 Gen2; 2x USB2.0; 2x RS-232C; 2x RS-232C/422A/485
    Power connector –
    Expansion Slot
    Expansion bus 1x PCI Express(x8) + 2x PCI Express(x4); 1x PCI Express(x16); 2x PCI Express(x8)
    Drive bay –
    Power
    Input voltage –
    Environment
    Operating temperature 0 to 60°C (32 to 140°F)
    Storage temperature -20 to 80°C (-4 to 176°F)
    Standards & Certifications CE; FCC Class A

    Ordering Informations

    Ordering Information
    Model Description Certification
    GSPI-Q1700-LLVA [Limited Stock] [End of Repair Service : July 24, 2031] Industrial Single Board Computer – PICMG 1.3, Full size SBC

      –
