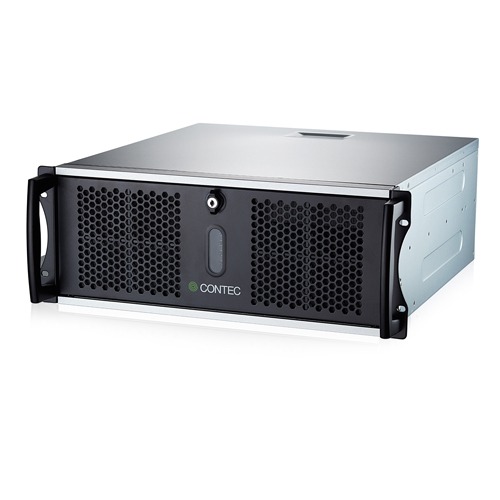

This product is a BTO (Build To Order) method personal computer for industrial use according to customer’s request. It uses carefully selected parts of “high reliability” and “stable supply”, and it is suitable for industrial use. This computer is provided in combination with each section, option on customer’s request to base model.
| Mounting | Rack Mount; Wall Mount |
|---|
| Supported OS | Windows 10; Windows 8.1; Windows 7 |
|---|
| CPU Generation (Development code) | |
|---|---|
| Processor | Core i7-6700; Core i5-6500; Celeron G3900 |
| CPU socket | |
| Memory | up to 64GB |
| RAS | Hardware monitor (Fan speed / Temperature / Voltage) |
| GPU | |
| AI Performance | |
| Security |
| Video | 2x DisplayPort; 1x DVI-D; 1x Analog RGB |
|---|---|
| LAN | 2x 1000BASE-T |
| Wireless | |
| Audio | 1x Line out; 1x Line in; 1x Mic-in |
| I/O | 4x USB3.2 Gen1 (USB3.0); 2x USB2.0; 1x PS/2 |
| Memory card | – |
| Expansion bus | 1x PCI Express(x16); 2x PCI Express(x4); 4x PCI |
|---|---|
| Drive bay | 2x 3.5-inch bay (SATA); 1x 5-inch bay (SATA) |
| Input voltage | 100 to 240VAC |
|---|
| Operating temperature | 0 to 45°C (32 to 113°F) |
|---|---|
| Storage temperature | -10 to 60°C (14 to 140°F) |
| Standards & Certifications | CE; FCC Class A |
| Model | Description | Certification |
|---|---|---|
| GSPF07MQ171-4U [Limited Stock] | [End of Repair Service : September 4, 2028] 19-inch Rack mount setup computer |
|
This product is ordered by BTO (Build to Order) method. Please inform the dealer about the BTO menu and request a quotation.
| CPU |
|
|---|---|
| Memory |
|
| Storage |
|
| Optical drive |
|
| OS |
|
* There are combinations that can not be configured. Please inquire in detail.
