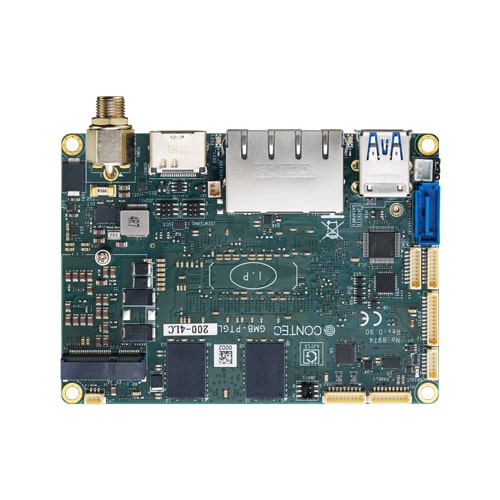

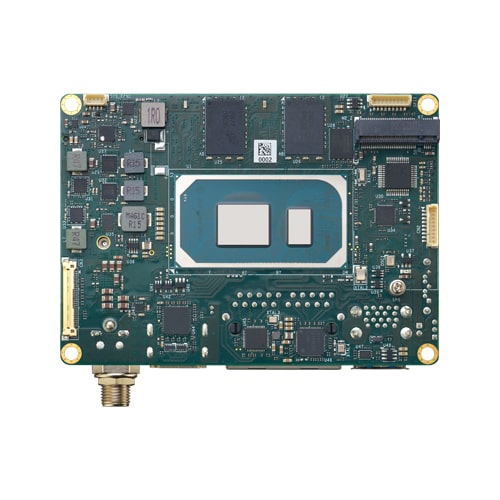

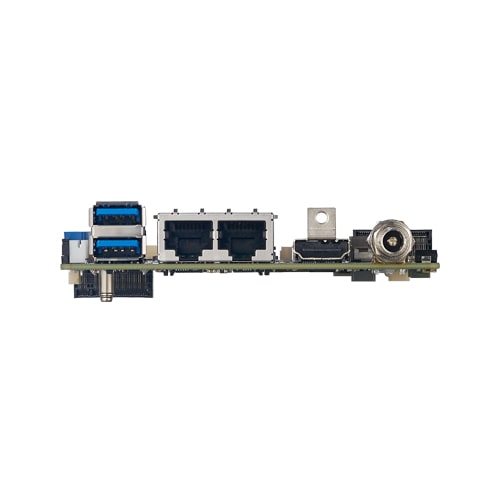

This product is a 2.5-inch Pico-ITX form factor industrial mainboard which based on Intel Tiger Lake UP3 platform by Core i3-1115G4E/Core i5-1145G7E/Core i7-1185G7E Processor with Windows 10 IoT Enterprise 2021 (4 languages) supported. The industrial-grade GMB-PTGL200/300/400, with size of 100mm x 72mm, has high computing power, and various expansion slots make it well-suited for factory automation, intelligent transportation, digital signage, self-service kiosks, and medical applications. The Product supports On Board DDR memory up to 16GB To meet customer various needs, it also equipped with one M.2 key M Slot with NVMe support, and M.2 key E slot for Wi-Fi/ Bluetooth module. In addition, it utilizes Intel Iris Xe Graphics by to provide and feature capability through HDMI, Moreover, it has one RS-232/422/485 port, and RS-232 ports, two ethernet ports with Intel i219LM and i225iT controllers, two USB3.1 ports, two USB2.0 ports, audio interface(Mic-in, Line-in, and Line-out), one 4-bit GPIO port, one HDMI, and one eDP port. The product can operates in temperature range from 0°C to 60°C (32°F to 140F°C)and has +12 to 24V DC power supply input.
Medical application
Factory automation
Self-service kiosks
Digital signage
| Type | Pico-ITX |
|---|
| Supported OS | Windows 10 IoT Enterprise 2021 LTSC 64-bit |
|---|
| CPU Generation (Development code) | 11th Gen. (Tiger Lake UP3) |
|---|---|
| Processor | Core i7-1185G7E; Core i5-1145G7E; Core i3-1115G4E |
| CPU socket | – |
| Memory | up to 16GB |
| RAS | Hardware monitor (Fan speed / Temperature / Voltage); Remote power-on; Watchdog timer |
| GPU | – |
| AI Performance | – |
| Security | TCG TPM 2.0 |
| Video | 1x eDisplayPort; 1x HDMI |
|---|---|
| LAN | 2x 2500BASE-T |
| Wireless | – |
| Audio | – |
| I/O | 2x USB3.1 Gen2 |
| Memory card | – |
| Video | – |
|---|---|
| LAN | – |
| Audio | 1x Line out; 1x Line in; 1x Mic-in |
| I/O | 2x USB2.0; 1x RS-232C; 1x RS-232C/422A/485 |
| Power connector | – |
| Expansion bus | 1x M.2 Key E (2230); 1x M.2 Key M (2242) |
|---|---|
| Drive bay | – |
| Input voltage | 12 to 24VDC |
|---|
| Operating temperature | 0 to 60°C (32 to 140°F), during forced air cooling (0.5m/s) |
|---|---|
| Storage temperature | -40 to 80°C (-40 to 176°F) |
| Standards & Certifications | CE; FCC Class B; UKCA; VCCI Class B |
| Model | Description | Certification |
|---|---|---|

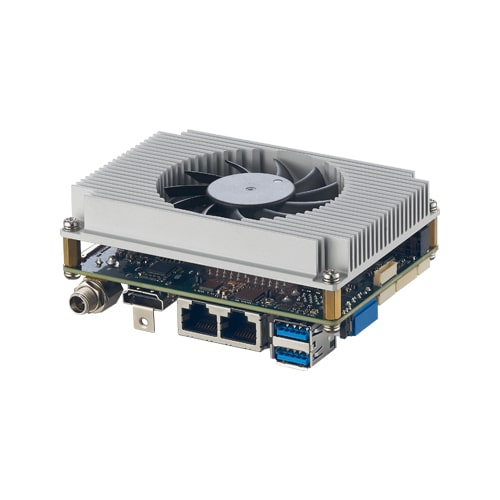

| GMB-PTGL200-2LCF | 2.5″ Pico-ITX SBC, Intel Tiger Lake UP3 Core i3-1115G4E, 8GB Memory, with CPU Cooler |
|
| GMB-PTGL200-3LCF | 2.5″ Pico-ITX SBC, Intel Tiger Lake UP3 Core i3-1115G4E, 16GB Memory, with CPU Cooler |
|
| GMB-PTGL300-3LCF | 2.5″ Pico-ITX SBC, Intel Tiger Lake UP3 Core i5-1145G7E, 16GB Memory, with CPU Cooler |
|
| GMB-PTGL400-3LCF | 2.5″ Pico-ITX SBC, Intel Tiger Lake UP3 Core i7-1185G7E, 16GB Memory, with CPU Cooler |
|
| Cables |
|
|---|
