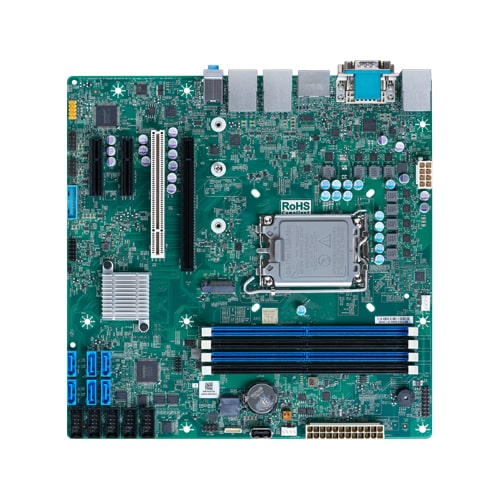

The GMB-MQ67000 design with LGA1700 socket for the 12th / 13th generation Intel® Core™processors. Aside from superior compute performance, this Micro-ATX motherboard delivers high-speed connectivity with flexible I/O, impressive graphics in support of triple displays, and PCIe & PCI Extension slots, high reliability to bridge the IoT applications.
The Intel® UHD Graphics and provides one HDMI, one DP, one DVI-I ports in support of triple displays. This feature can be widely applied in various fields, such as manufacturing monitoring, medical, digital signage, and factory automation.
| Type | Micro ATX |
|---|
| Supported OS | Windows 10 IoT Enterprise 2021 LTSC 64-bit |
|---|
| CPU Generation (Development code) | 13th Gen. (Raptor Lake-S); 12th Gen. (Alder Lake-S) |
|---|---|
| Processor | Intel Core Processors |
| CPU socket | LGA1700 |
| Memory | up to 128GB |
| RAS | Hardware monitor (Fan speed / Temperature / Voltage); Remote power-on; Watchdog timer |
| GPU | – |
| AI Performance | – |
| Security | – |

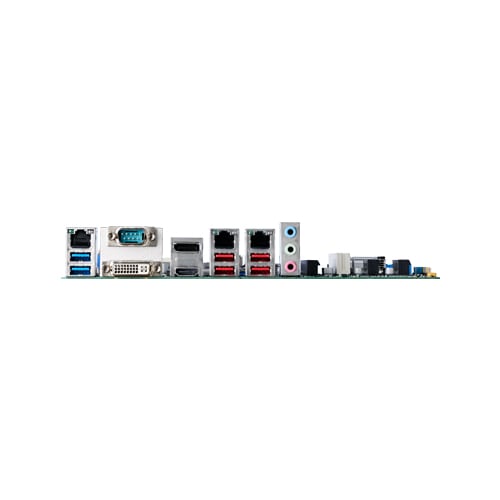

| Video | 1x DisplayPort; 1x HDMI; 1x DVI-I |
|---|---|
| LAN | 2x 2500BASE-T; 1x 1000BASE-T |
| Wireless | – |
| Audio | 1x Line out; 1x Line in; 1x Mic-in |
| I/O | 4x USB3.2 Gen2; 2x USB3.2 Gen1; 1x USB2.0; 1x RS-232C/422A/485 |
| Memory card | – |
| Video | – |
|---|---|
| LAN | – |
| Audio | 1x Line out; 1x Mic-in |
| I/O | 2x USB3.2 Gen1; 4x USB2.0; 5x RS-232C |
| Power connector | 1x 24-pin ATX |
| Expansion bus | 1x M.2 Key M (2280); 1x PCI Express(x16); 2x PCI Express(x4); 1x PCI |
|---|---|
| Drive bay | – |
| Input voltage | – |
|---|
| Operating temperature | 0 to 60°C (32 to 140°F) |
|---|---|
| Storage temperature | -40 to 80°C (-40 to 176°F) |
| Standards & Certifications | CE; FCC Class A; UKCA; VCCI Class A |
| Model | Description | Certification |
|---|---|---|
| GMB-MQ67000 | Micro-ATX Intel 12th / 13th Gen., LGA1700 , DDR5-4800 U-DIMM |
|
