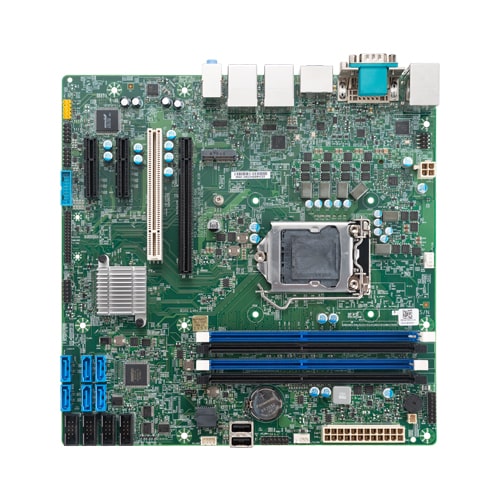

This product is a micro-ATX form factor industrial motherboard which based on Intel® Core™ Processors that offer 14nm Hi-K process technology with energy efficient architecture. GMB-MQ37000 adopts four DDR4 SO-DIMM sockets and supports up to 64GB memory.Server SKU and Desktop SKU solutions are suitable for factory automation applications. Moreover, with the high performance and high-end specifications, GMB-MQ37000 is our first Coffee Lake generation architecture on Micro-ATX product line.
| Type | Micro ATX |
|---|
| Supported OS | Windows 10 IoT Enterprise 2019 LTSC 64-bit |
|---|
| CPU Generation (Development code) | 8th Gen. (Coffee Lake-S) |
|---|---|
| Processor | Core i7-8700; Core i7-8700T; Core i5-8500; Core i5-8500T; Celeron G4900; Celeron G4900T |
| CPU socket | LGA1151 |
| Memory | up to 64GB |
| RAS | Hardware monitor (Fan speed / Temperature / Voltage); Remote power-on; Watchdog timer |
| GPU | – |
| AI Performance | – |
| Security | – |

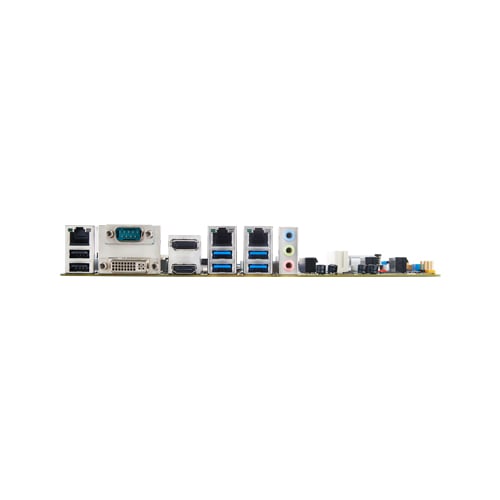

| Video | 1x DisplayPort; 1x HDMI; 1x DVI-I |
|---|---|
| LAN | 3x 1000BASE-T |
| Wireless | – |
| Audio | 1x Line out; 1x Line in; 1x Mic-in |
| I/O | 4x USB3.2 Gen2; 2x USB2.0; 1x RS-232C/422A/485 |
| Memory card | – |
| Video | – |
|---|---|
| LAN | – |
| Audio | 1x Line out; 1x Mic-in |
| I/O | 2x USB3.2 Gen1; 6x USB2.0; 4x RS-232C |
| Power connector | 1x 24-pin ATX |
| Expansion bus | 1x M.2 Key E (2230); 1x PCI Express(x16); 2x PCI Express(x4); 1x PCI |
|---|---|
| Drive bay | – |
| Input voltage | – |
|---|
| Operating temperature | 0 to 60°C (32 to 140°F) w/ 0.7m/s airflow |
|---|---|
| Storage temperature | -20 to 70°C (-4 to 158°F) |
| Standards & Certifications | CE; FCC Class A |
| Model | Description | Certification |
|---|---|---|
| GMB-MQ37000 | Micro ATX IMB 8th Gen. Intel® Core™ Processor, Intel® Q370 Chipset |
– |
