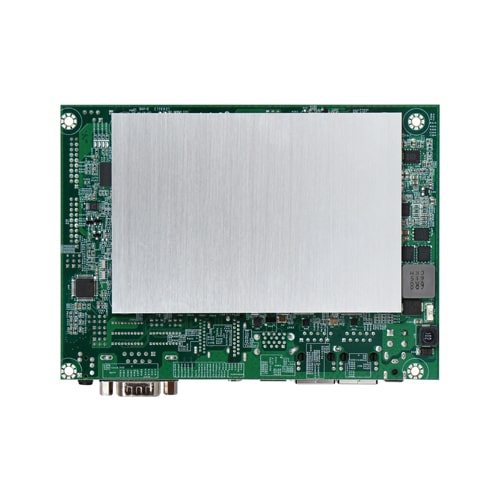

GMB-L3APL300 utilizes the Intel® ECX form factor based on the Intel® Atom™ processor x5-E3930, which includes integrated, enhanced graphics and memory controllers on 14nm process technology, and delivering significant power reduction and performance improvements over the previous Intel® Atom™ processor series. This product can provide the low power consumption for low profile fanless applications such as POS, Print Imaging, ATM, Kiosk, Medical, Panel PC, Digital Security and Digital Signage.
| Type | 3.5-inch |
|---|
| Supported OS | Windows 10 IoT Enterprise 2019 LTSC 64-bit |
|---|
| CPU Generation (Development code) | Apollo Lake |
|---|---|
| Processor | Atom x5-E3930 |
| CPU socket | – |
| Memory | up to 8GB |
| RAS | – |
| GPU | – |
| AI Performance | – |
| Security | – |

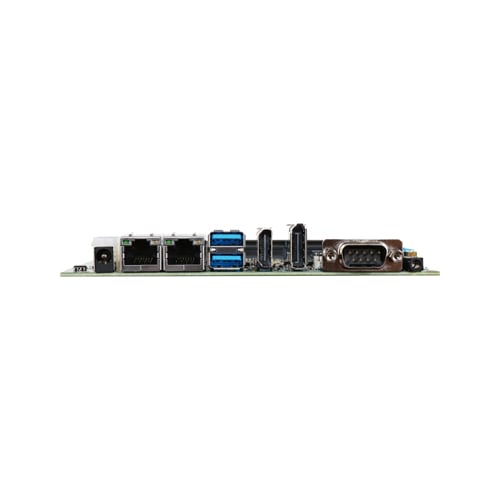

| Video | 1x DisplayPort; 1x HDMI |
|---|---|
| LAN | 2x 1000BASE-T |
| Wireless | – |
| Audio | 1x Line out |
| I/O | 2x USB3.2 Gen1 (USB3.0); 1x RS-232C/422A/485 |
| Memory card | – |
| Video | 2x LVDS |
|---|---|
| LAN | – |
| Audio | 1x Line out; 1x Line in; 1x Mic-in |
| I/O | 4x USB3.2 Gen1 (USB3.0); 5x RS-232C |
| Power connector | 1x SATA power |
| Expansion bus | 2x Mini PCI Express |
|---|---|
| Drive bay | – |
| Input voltage | 12 to 24VDC |
|---|
| Operating temperature | -40 to 60°C (-40 to 140°F) w/ 0.5m/s airflow |
|---|---|
| Storage temperature | -40 to 85°C (-4 to 185°F) |
| Standards & Certifications | CE; FCC Class A |
| Model | Description | Certification |
|---|---|---|
| GMB-L3APL300 | 3.5-inch SBC, Intel® Apollo Lake x5-E3930 Processor, DDR3L SDRAM, 6x COM and 12 to 24VDC input |
|
| Cables |
|
|---|
