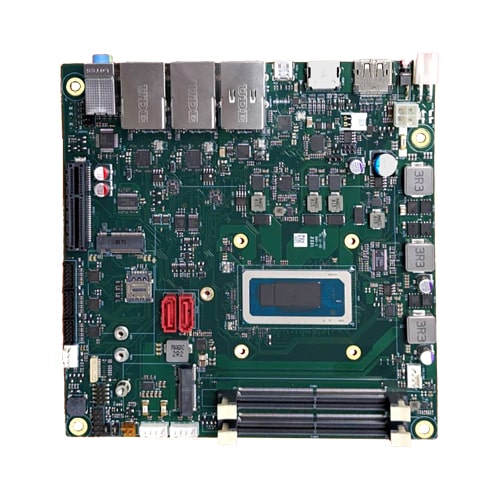

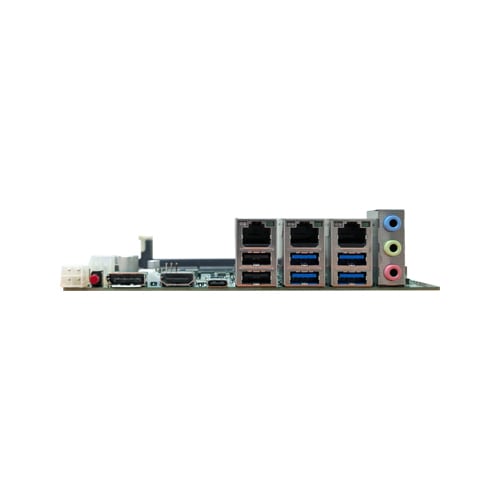

This product is a Mini-ITX form factor industrial mainboard which based on Intel Core Processors that offer 14nm Hi-K process technology with energy efficient architecture. GMB-IRPL Series adopts two DDR5-4800MHz SO-DIMM sockets and supports up to 32GB memory. Moreover, with the high performance of the Intel UHD Graphics and provides one HDMI, one DP, one eDP port in support of triple displays. This feature can be widely applied in various fields, such as production monitoring, medical, healthcare, point of sale and social infrastructure.
| Type | Mini-ITX |
|---|
| Supported OS | Windows 10 IoT Enterprise 2021 LTSC 64-bit |
|---|
| CPU Generation (Development code) | 13th Gen. (Raptor Lake-P) |
|---|---|
| Processor | Core i7-1370PRE; Core i5-1350PRE; Core i3-1320PRE |
| CPU socket | – |
| Memory | up to 64GB |
| RAS | Hardware monitor (Temperature / Voltage); Watchdog timer |
| GPU | – |
| AI Performance | – |
| Security | TCG TPM 2.0 (Optional) |
| Video | 1x DisplayPort (v1.4); 1x eDisplayPort; 1x HDMI |
|---|---|
| LAN | 2x 2500BASE-T; 1x 1000BASE-T |
| Wireless | – |
| Audio | 1x Line out; 1x Line in; 1x Mic-in |
| I/O | 4x USB3.2 Gen2; 2x USB2.0 |
| Memory card | – |
| Video | – |
|---|---|
| LAN | – |
| Audio | – |
| I/O | 3x RS-232C/422A/485 |
| Power connector | – |
| Expansion bus | 1x M.2 Key B (3042/3052) ; 1x M.2 Key E (2230); 1x PCI Express(x4) |
|---|---|
| Drive bay | – |
| Input voltage | 9 to 36VDC |
|---|
| Operating temperature | -40 to 60°C (-40 to 140°F) w/o airflow; * Vary by CPU (Refer to Datasheet) |
|---|---|
| Storage temperature | -40 to 80°C (-40 to 176°F) |
| Standards & Certifications | – |
| Model | Description | Certification |
|---|---|---|
| GMB-IRPLP200 | Mini-ITX Mother board, Intel Raptor Lake-P Core i3-1320PRE Processor, DDR5 SO-DIMM. |
|
| GMB-IRPLP300 | Mini-ITX Mother board, Intel Raptor Lake-P Core i5-1350PRE Processor, DDR5 SO-DIMM. |
|
| GMB-IRPLP400 | Mini-ITX Mother board, Intel Raptor Lake-P Core i7-1370PRE Processor, DDR5 SO-DIMM. |
|
