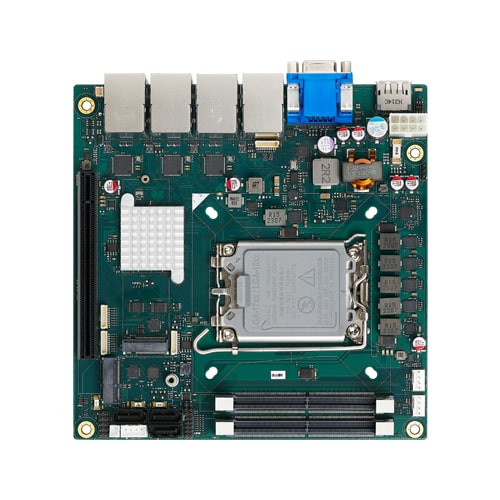

This product is a Mini-ITX form factor industrial mainboard, built around 12th & 13th Intel® Core™ Processors that leverage advanced 7nm process technology with an energy-efficient architecture. The GMB-IQ67010 boasts two DDR5 SO-DIMM sockets, accommodating 64GB of memory. Designed to meet the board demands of factory automation applications. Furthermore, GMB-IQ67010 stands out as a high-performance, toptier solution within our Industrial Motherboard product line, aligning with our Alder Lake-S & Raptor Lake-S platform architecture. With this mainboard, you can expect smooth and efficient operation, making it an ideal choice for industrial settings where reliability and performance are paramount.
| Type | Mini-ITX |
|---|
| Supported OS | Windows 10 IoT Enterprise 2021 LTSC 64-bit |
|---|
| CPU Generation (Development code) | 13th Gen. (Raptor Lake-S); 12th Gen. (Alder Lake-S) |
|---|---|
| Processor | Intel Core Processors |
| CPU socket | LGA1700 |
| Memory | up to 64GB |
| RAS | Hardware monitor (Fan speed / Temperature / Voltage); Watchdog timer |
| GPU | – |
| AI Performance | – |
| Security | – |

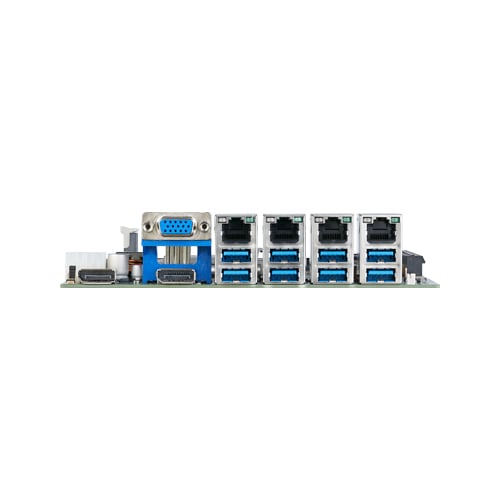

| Video | 2x DisplayPort; 1x Analog RGB |
|---|---|
| LAN | 4x 1000BASE-T/100BASE-TX/10BASE-T |
| Wireless | – |
| Audio | – |
| I/O | 8x USB3.2 Gen2 |
| Memory card | – |
| Video | – |
|---|---|
| LAN | – |
| Audio | – |
| I/O | 2x USB2.0; 2x RS-232C; 1x RS-232C/422A/485 |
| Power connector | – |
| Expansion bus | 1x M.2 Key E (2230); 1x PCI Express(x16) or 2x PCI Express(x8) |
|---|---|
| Drive bay | – |
| Input voltage | 12 to 24VDC |
|---|
| Operating temperature | 0 to 60°C (32 to 140°F) |
|---|---|
| Storage temperature | -40 to 80°C (-40 to 176°F) |
| Standards & Certifications | CE; FCC Class A; UKCA; VCCI Class A |
| Model | Description | Certification |
|---|---|---|
| GMB-IQ67010 | Industrial Motherboard / Mini-ITX / 12th/13th Gen. Intel Core Processor, Q670E chipset |
|
