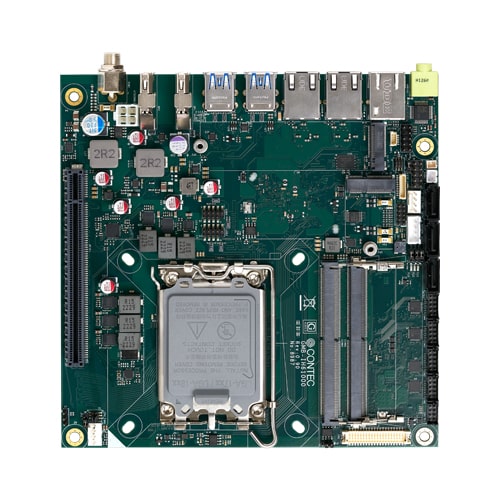

GMB-IH61000_img1GMB-IH61000_img1

GMB-IH61000

  • Intel 12th / 13th Alder Lake-S / Raptor Lake-S Platform
  • Multi Display Supported
  • Triple Gigabit Ethernet
  • Extend Peripherals Freely Rich Interface
  • Build-In TPM2.0

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: GMB-IH61000 Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is a Mini-ITX form factor industrial mainboard which based on Intel 12th / 13th Gen Core Processors CPU in LGA1700 socket technology with energy efficient architecture. GMB-IH61000 adopts two DDR5 SO-DIMM sockets and supports up to 64GB memory. The low-profile SKU solutions are suitable for factory automation applications. Moreover, with the high performance and high-end specifications and build-in TPM for security application, GMB-IH61000 is our first New platform architecture on Mini-ITX product line.

    • Intel 12th / 13th Alder Lake-S / Raptor Lake-S Platform
      • This product is equipped with the 12th / 13th generation Intel Core, Celeron & Pentium processors. Adopting embedded-type CPU contributes to a stable supply.Following CPUs are recommended for customer reference.Intel Pentium & Celeron SKUIntel Core i9 / i7 / i5 /i3, 35/ 65W TDP SKU.
    • Multi Display Supported
      • Dual Display port support 4K independent displays, One LVDS Connector resolution up to 1920×1080, faster in performance with enhanced Intel graphics engineIntel UHD Graphics 770/730/710 support by processor SKU.

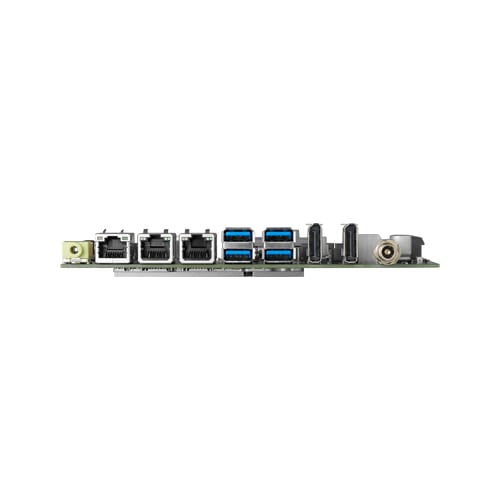

    • Triple Gigabit Ethernet
      • The product has 3 x RJ45 connectors on rear I/O for customer usage, which are 1 x Intel i219LM + 2 x Intel iI225 PCIe chip.
    • Extend Peripherals Freely Rich Interface
      • This product is equipped with a variety of interfaces such as serial port, USB 3.2/ 2.0, 8-bit GPIO, audio jack, Line-out, M.2 Key E/ Key M, etc. For customers with various needs.
    • Build-In TPM2.0
      • The TPM(Trusted Platform Module) provides tools to securely generate keys, and it also includes features such as remote authentication and sealed storage.

    Specifications

    Specifications
    Form Factor
    Type Mini-ITX
    Software Support
    Supported OS Windows 10 IoT Enterprise 2021 LTSC 64-bit
    Core System
    CPU Generation (Development code) 13th Gen. (Raptor Lake-S); 12th Gen. (Alder Lake-S)
    Processor Core i9-13900TE; Core i9-13900E; Core i9-12900TE; Core i9-12900E; Core i7-13700TE; Core i7-13700E; Core i7-12700TE; Core i7-12700E; Core i5-13500TE; Core i5-13500E; Core i5-12500TE; Core i5-12500E; Core i3-13100TE; Core i3-13100E; Core i3-12100E; Core i3-12100TE; Pentium Gold G7400TE; Pentium Gold G7400E; Celeron G6900E; Celeron G6900TE; Intel Core Processors
    CPU socket LGA1700
    Memory up to 64GB
    RAS Hardware monitor (Fan speed / Temperature / Voltage); Watchdog timer
    GPU –
    AI Performance –
    Security TCG TPM 2.0
    Interface
    Video 2x DisplayPort; 1x LVDS
    LAN 2x 2500BASE-T; 1x 1000BASE-T
    Wireless –
    Audio 1x Line out
    I/O 4x USB3.2 Gen1 (USB3.0)
    Memory card –
    Internal Interface
    Video –
    LAN –
    Audio 1x Line out; 1x Mic-in
    I/O 4x USB2.0; 2x RS-232C; 2x RS-232C/422A/485
    Power connector 1x 2-pin DC-IN power connector
    Expansion Slot
    Expansion bus 1x M.2 Key E (2230); 1x M.2 Key M (2280); 1x PCI Express(x16)
    Drive bay –
    Power
    Input voltage 12 to 24VDC
    Environment
    Operating temperature 0 to 60°C (32 to 140°F)
    Storage temperature -40 to 80°C (-40 to 176°F)
    Standards & Certifications CE; FCC Class B; UKCA; VCCI Class B

    Ordering Informations

    Ordering Information
    Model Description Certification
    GMB-IH61000 Mini-ITX, Intel 12 / 13th Gen., H610/H610E, (LGA1700) Supported ECC or Non-ECC, DDR5 SO-DIMM
    • CE marking
    • FCC compliant
    • VCCI
