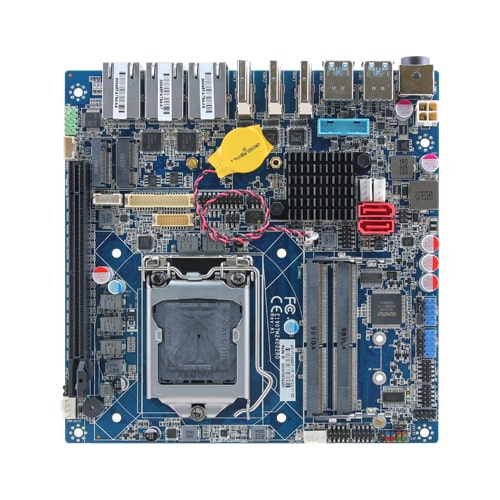

GMB-IC24600_img1GMB-IC24600_img1

GMB-IC24600

  • Compatible with Intel® 9th Coffee Lake-Refresh Platform
  • Multi-display Supported
  • Triple Gigabit Ethernet
  • Extend Peripherals freely Rich Interface
  • Support on board TPM2.0

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: GMB-IC24600 Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

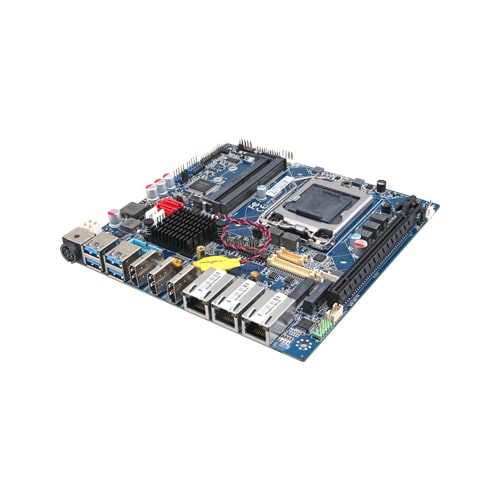

    This product is a mini-ITX form factor industrial motherboard with Intel® C246 Chipset. The 8th/9th generation Intel® Xeon® and Core™ processor, up to 65W, are recommend being use with this board.

    • Compatible with Intel® 9th Coffee Lake-Refresh Platform
      • This product is equipped with the 8th/9th generation Intel® Xeon®/Core™ Processor. Adopting embedded-type CPU contributes to a stable supply.Following CPUs are recommended for customer reference;Intel® Core™ i7-8700Intel® 8th Generation 65W CPUIntel® 9th Generation 65W CPU (4/6 Core)Intel® 9th Generation 35W CPU (8 Core)
    • Multi-display Supported
      • Unless other motherboards, GMB-IC24600 has 3 HDMI ports for customers with various needs. Moreover, daul-channel 18/24-bit LVDS are also provided in this product.
    • Triple Gigabit Ethernet

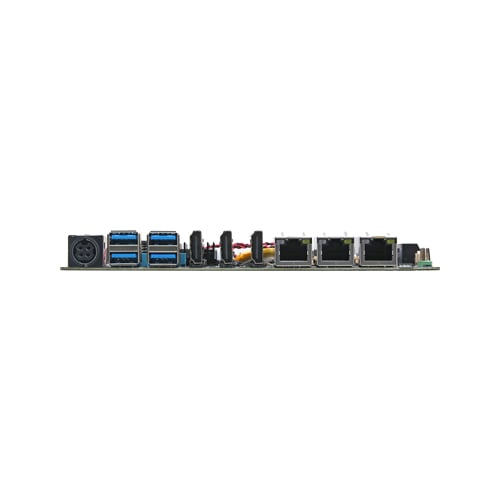

      • The product has 3 RJ45 connectors on rear I/O for customer usage, which are 1 x Intel® I219LM + 2 x Intel® I210AT PCIe chip.
    • Extend Peripherals freely Rich Interface
      • This product is equipped with a variety of interfaces such as HDMI, LVDS, 1000BASE-T x 3, USB3.1(Gen2) x 3, USB3.1(Gen1) x 1, serial (RS-232C/422/485) x 1, serial (RS-232C) x 3, GPIO x 1, and audio.
    • Support on board TPM2.0

    Specifications

    Specifications
    Form Factor
    Type Mini-ITX
    Software Support
    Supported OS Windows 10 IoT Enterprise 2019 LTSC 64-bit
    Core System
    CPU Generation (Development code) 9th Gen. (Coffee Lake R-S); 8th Gen. (Coffee Lake-S)
    Processor Xeon E-2278GEL; Xeon E-2226GE; Core i7-9700TE; Core i7-8700; Core i7-8700T; Core i5-9500E; Core i5-9500TE; Core i5-8500; Core i5-8500T; Core i3-9100E; Core i3-9100TE; Core i3-8100; Core i3-8100T; Pentium G5400; Pentium G5400T; Celeron G4900; Celeron G4900T
    CPU socket LGA1151
    Memory up to 64GB
    RAS Hardware monitor (Temperature / Voltage); Watchdog timer
    GPU –
    AI Performance –
    Security TCG TPM 2.0
    Interface
    Video 3x HDMI
    LAN 3x 1000BASE-T
    Wireless –
    Audio –
    I/O 3x USB3.2 Gen2; 1x USB3.2 Gen1
    Memory card –
    Internal Interface
    Video 1x LVDS
    LAN –
    Audio 1x Front audio (1xpin header connector)
    I/O 2x USB3.2 Gen1 (USB3.0); 4x USB2.0; 3x RS-232C; 1x RS-232C/422A/485; 1x PS/2
    Power connector 2x SATA power
    Expansion Slot
    Expansion bus 1x M.2 Key B (3042/2242/2260/2280); 1x M.2 Key E (2230); 1x M.2 Key M (2280); 1x PCI Express(x16)
    Drive bay –
    Power
    Input voltage 12 to 26VDC
    Environment
    Operating temperature 0 to 60°C (32 to 140°F) w/ 0.7m/s airflow
    Storage temperature -40 to 75°C (-40 to 167°F)
    Standards & Certifications CE; FCC Class A

    Ordering Informations

    Ordering Information
    Model Description Certification
    GMB-IC24600 Mini-ITX, LGA1151, Intel® 8/9th Gen., C246 PCH, DDR4 SO-DIMM, DC-input
    • CE marking
    • FCC compliant
