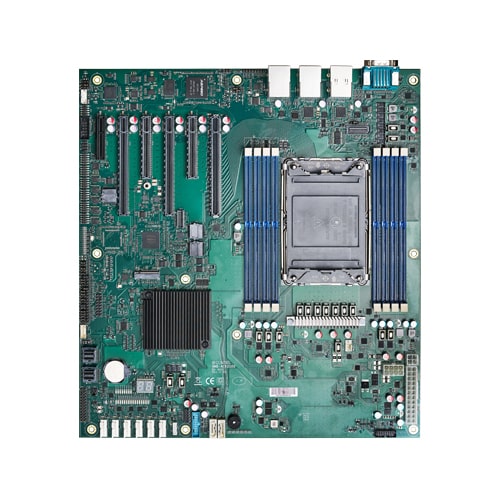

GMB-EAC62100_img1GMB-EAC62100_img1

GMB-EAC62100

  • Compatible with Intel® Ice Lake-SP platform
  • HPC and GPU computing support
  • Adopt Removable Storage
  • BMC function
  • Support Windows 10 IoT Enterprise 2019 LTSC and Windows Server IoT 2019

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: GMB-EAC62100 Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    GMB-EAC62100 is designed for server grade high performance E-ATX industrial motherboard with 3rd generation Intel® Xeon® Processor families, which is designed for high performance edge computing, AI Deep Learning and GPU solution. It features Single CPU, up to 256GB 8 x DDR4-3200/2933/2666MHz (by CPU SKU) with ECC, 3 slots PCIe x 16, 2 slots PCIe x8, 1 slot PCIe x4, onboard dual Giga Lan ports, 6 x USB 3.0, and 3 x USB 2.0. Rich I/O expansion fulfill customer needs especially in Industrial IoT, Machine vision, and AI Deep Learning applications. Besides, it is Contec’s first server grade motherboard with high reliability, long life components, availability and maintainability based on 24-hours operation.

    Usage Examples

    Machine vision

    Vision processing

    AI / Deep Learning

    Automated Optical Inspection

    • Compatible with Intel® Ice Lake-SP platform
      • This product is equipped with the 3rd generation Intel® Xeon® scalable processor by LGA-4189 sockets, CPU TDP up to 205W.
    • HPC and GPU computing support
      • The high-performance computing (HPC) environment that can be used for Image processing, Machinevision and AI / Deep Learning is provided
    • Adopt Removable Storage
      • The product adopts front accessible 4 x 2.5” or 3.5” SATA storages and support RAID function such as mirroring.
    • BMC function
      • ASPEED AST2500 Advanced PCIe Graphics & Remote Management Processor that is onboard support Baseboard Management Controller provides customers with the best performance server management solution for system management and IPMI control.
    • Support Windows 10 IoT Enterprise 2019 LTSC and Windows Server IoT 2019
      • The LTSC (Long Term Servicing Channel) version of Windows is installed to discourage unnecessary restartsor unwanted feature updates for operational applications. The product has a lockdown function that is usefulfor the developing secure dedicated terminals. A user can select a language from English, Chinese, Japanese,or Korean in Windows 10 IoT Enterprise 2019 LTSC 64-bit, and can decide to use Windows Server IoT 2019*, which is suitable for edge servers that require server-class multiple processing and network performance. *Coming soon.

    Specifications

    Specifications
    Form Factor
    Type EATX
    Software Support
    Supported OS Windows 10 IoT Enterprise 2019 LTSC 64-bit; Windows Server IoT 2019 Standard
    Core System
    CPU Generation (Development code) 3rd Gen. Xeon (Ice Lake-SP)
    Processor Xeon Gold 6338T; Xeon Gold 6336Y; Xeon Gold 6330; Xeon Gold 6326; Xeon Gold 5320T; Xeon Gold 5318Y; Xeon Gold 5317; Xeon Gold 5315Y; Xeon Silver 4316; Xeon Silver 4314; Xeon Silver 4310T; Xeon Silver 4310
    CPU socket LGA4189
    Memory up to 256GB
    RAS Hardware monitor (Fan speed / Temperature / Voltage); Watchdog timer
    GPU –
    AI Performance –
    Security TCG TPM 2.0
    Interface

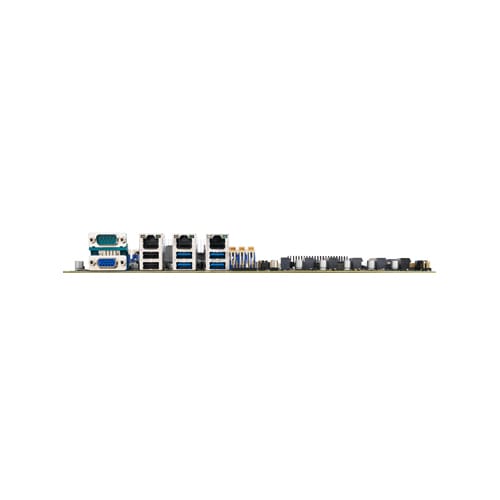

    Video 1x Analog RGB
    LAN 2x 1GbE; 1x 10/100M RJ45(BMC management)
    Wireless –
    Audio –
    I/O 4x USB3.0 ; 2x USB2.0; 1x RS-232C
    Memory card 1x M.2 M-Key (2242/2280)
    Internal Interface
    Video –
    LAN –
    Audio –
    I/O 2x USB3.0 ; 1x USB2.0; 1x RS-232C
    Power connector 1x 24-pin ATX; 1x 8-pin ATX 12V
    Expansion Slot
    Expansion bus 3x PCI Express 4.0(x16); 2x PCI Express 4.0(x8); 1x PCI Express 3.0(x4)
    Drive bay –
    Power
    Input voltage –
    Environment
    Operating temperature 5 to 40°C (41 to 104°F)
    Storage temperature -20 to 60°C (-4 to 140°F)
    Standards & Certifications CE; FCC Class A; VCCI Class A

    Ordering Informations

    Ordering Information
    Model Description Certification
    GMB-EAC62100 Industrial Motherboard / EATX / Intel 3rd Gen. Xeon processors (Ice Lake-SP + C621A) / LGA 4189 (Socket P+) / 3x PCIe(x16), 2x PCIe(x8), 1x PCIe(x4)
    • CE marking
    • FCC compliant
    • VCCI
