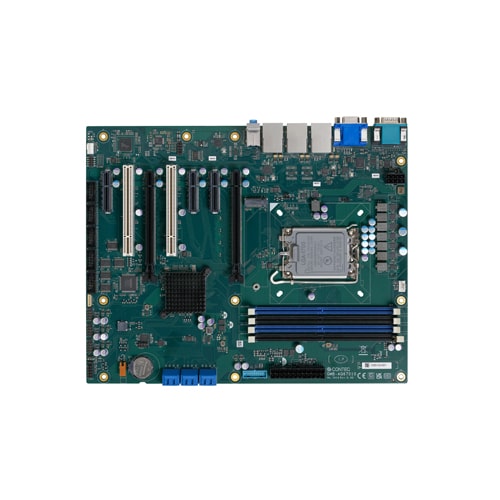

GMB-AQ67010_img1GMB-AQ67010_img1

GMB-AQ67010

  • Intel® 12th / 13th/ 14th Gen. processor Alder Lake-S / Raptor Lake-S / Raptor Lake –S Refresh Platform
  • 4 x DDR5-4400 U-DIMM, up to 128GB (non-ECC support)
  • Multi display supported: Display port, HDMI and VGA
  • Extend Peripherals Freely Rich Interface

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: GMB-AQ67010 Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is an ATX form factor industrial mainboard, built around 12th/ 13th/ 14th Intel® Core™ Processors that leverage advanced 7nm process technology with an energy-efficient architecture. The GMB-AQ67010 boasts four DDR5 U-DIMM sockets, accommodating an impressive 128GB of memory.
    Designed to meet the demands of factory automation applications, it comes in intel® NEXG SKU configurations. Furthermore, the GMB-AQ67010 stands out as a high-performance, top-tier solution within our Industrial Motherboard product line, aligning with our alder Lake-S & Raptor lake-s platform architecture.With this mainboard, you can expect smooth and efficient operation, making it an ideal choice for industrial settings where reliability and performance are paramount.

    • Intel® 12th / 13th/ 14th Gen. processor Alder Lake-S / Raptor Lake-S / Raptor Lake –S Refresh Platform
      • This product is equipped with the 12th or 13th or 14th generation Intel® Core™ processors (Alder Lake-S / Raptor Lake-S / Raptor Lake-S Refresh), utilizing an embedded-type CPU for stable supply.
    • 4 x DDR5-4400 U-DIMM, up to 128GB (non-ECC support)
      • U-DIMMs have no buffers or registers between the memory controller and the memory chips. The memory controller is located in the processor package itself and communicates directly with the memory chips. One advantage of unbuffered modules is that the lack of a buffer reduces latency, leading to faster performance.
    • Multi display supported: Display port, HDMI and VGA
      • The product supported Display port, HDMI and VGA.
    • Extend Peripherals Freely Rich Interface

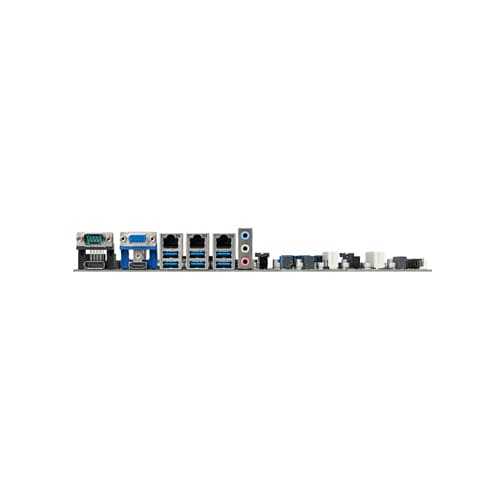

      • This product is equipped with a variety of interfaces such as 3x LAN ports : 2x 2.5 GbE + 1x GbE and 6 x USB 3.2 Gen2 on rear I/O, extend interface by 1 x PCIe x16 + 1 x PCIe x8 + 3 x PCIe x4 + 2 x PCI + 1 x M.2 M key and 6x COM Port Auto-flow Control Supported, to cater to the diverse needs of our customers.

    Specifications

    Specifications
    Form Factor
    Type ATX
    Software Support
    Supported OS Windows 11 IoT Enterprise LTSC 2024
    Core System
    CPU Generation (Development code) 14th Gen. (Raptor Lake-S Refresh); 13th Gen. (Raptor Lake-S); 12th Gen. (Alder Lake-S)
    Processor Intel 14th Gen. Core Processor; Intel 13th Gen. Core Processor; Intel 12th Gen. Core Processor
    CPU socket LGA1700
    Memory up to 128GB
    RAS Real-time clock (RTC); Hardware monitor (Fan speed / Temperature / Voltage); Watchdog timer
    GPU –
    AI Performance –
    Security –
    Interface
    Video 1x DisplayPort; 1x HDMI; 1x Analog RGB
    LAN 2x 2500BASE-T/1000BASE-T/100BASE-TX/10BASE-T; 1x 1000BASE-T/100BASE-TX/10BASE-T
    Wireless –
    Audio 1x Line out; 1x Line in; 1x Mic-in
    I/O 6x USB3.2 Gen2 (USB3.1); 2x USB3.2 Gen1 (USB3.0); 1x RS-232C/422A/485
    Memory card –
    Internal Interface
    Video –
    LAN –
    Audio –
    I/O 2x USB3.2 Gen1; 3x USB2.0; 5x RS-232C
    Power connector 1x 24-pin ATX; 1x 8-pin ATX 12V
    Expansion Slot
    Expansion bus 1x PCI Express 5.0(x16); 1x PCI Express(x8); 3x PCI Express(x4); 2x PCI
    Drive bay –
    Power
    Input voltage –
    Environment
    Operating temperature 0 to 60°C (32 to 140°F)
    Storage temperature -20 to 80°C (-4 to 176°F)
    Standards & Certifications CE; FCC Class B; UKCA

    Ordering Informations

    Ordering Information
    Model Description Certification
    GMB-AQ67010 ATX MB /12th/13th/14th Gen. Intel Core Processor, Intel Q670 chipset
    • CE marking
    • FCC compliant
