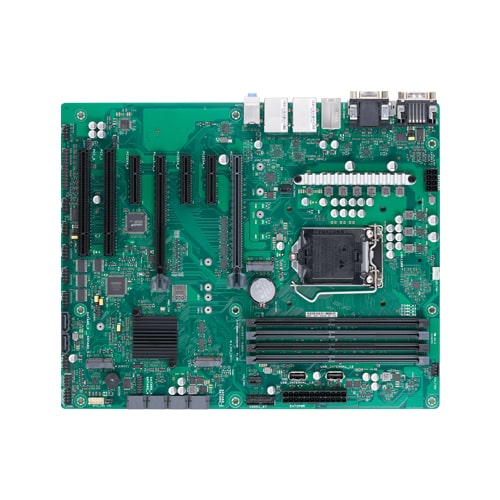

GMB-AQ47001 is based on Intel ® Q470E chipset and Desktop processors including Intel® 10 th Gen Core® i3/i5/i7 SKU. This board supports DDR4, PCIe 3.0, and SATAIII. Those features help you to build high performance and stabile system.
Factory automation
Factory production/measurement line
Vision processing terminal
Factory manufacturing equipment
| Type | ATX |
|---|
| Supported OS | Windows 10 IoT Enterprise 2019 LTSC 64-bit |
|---|
| CPU Generation (Development code) | 10th Gen. (Comet Lake-S) |
|---|---|
| Processor | Core i9-10900E; Core i9-10900TE; Core i7-10700E; Core i7-10700TE; Core i5-10500E; Core i5-10500TE; Core i3-10100E; Core i3-10100TE; Pentium G6400E; Pentium G6400TE; Celeron G5900E; Celeron G5900TE |
| CPU socket | LGA1200 |
| Memory | up to 128GB |
| RAS | Hardware monitor (Fan speed / Temperature / Voltage) |
| GPU | – |
| AI Performance | – |
| Security | – |
| Video | 2x DisplayPort; 1x HDMI; 1x Analog RGB |
|---|---|
| LAN | 2x 1000BASE-T |
| Wireless | – |
| Audio | 1x Line out; 1x Line in; 1x Mic-in |

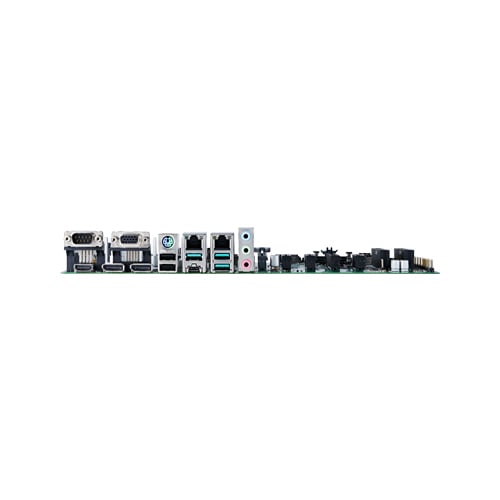

| I/O | 4x USB3.2 Gen2; 2x USB2.0; 1x RS-232C/422A/485 |
| Memory card | – |
| Video | – |
|---|---|
| LAN | – |
| Audio | – |
| I/O | 2x USB3.2 Gen1; 2x USB2.0; 4x RS-232C; 1x RS-232C/422A/485 |
| Power connector | 1x 24-pin ATX; 1x 8-pin ATX 12V |
| Expansion bus | 1x nanoSIM slot; 1x M.2 Key B (3042/3052, 2260/2280); 1x M.2 Key E (2230); 1x M.2 Key M (2242/2260/2280); 2x PCI Express 3.0(x16); 3x PCI Express(x4); 2x PCI |
|---|---|
| Drive bay | – |
| Input voltage | 12VDC |
|---|
| Operating temperature | 0 to 60°C (32 to 140°F) |
|---|---|
| Storage temperature | -20 to 80°C (-4 to 176°F) |
| Standards & Certifications | CE; FCC Class A |
| Model | Description | Certification |
|---|---|---|
| GMB-AQ47001 | Industrial Motherboard / ATX / 10th Gen. Intel Core Processor, Intel Q470E chipset. *1 |
|
