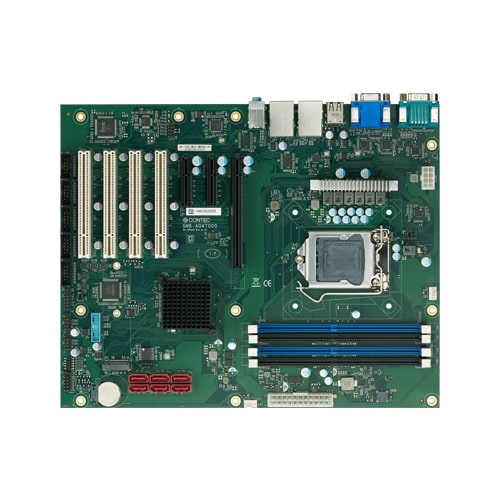

This product is a ATX form factor industrial mainboard which based on Intel® Core™ Processors that offer 14nm Hi-K process technology with energy efficient architecture. GMB-AQ47000 adopts four DDR4 UDIMM sockets and supports up to 128GB memory.
Desktop SKU solutions are suitable for factory automation applications. Moreover, with the high performance and high-end specifications, GMB-AQ47000 is our Comet Lake-S platform on industrial motherboard product line
Factory automation
Factory production/measurement line
Vision processing terminal
Factory manufacturing equipment
| Type | ATX |
|---|
| Supported OS | Windows 10 IoT Enterprise 2019 LTSC 64-bit |
|---|
| CPU Generation (Development code) | 10th Gen. (Comet Lake-S) |
|---|---|
| Processor | Core i9-10900E; Core i9-10900K; Core i9-10900TE; Core i7-10700E; Core i7-10700TE; Core i5-10500E; Core i5-10500TE; Core i3-10100E; Core i3-10100TE; Pentium G6400E; Pentium G6400TE; Celeron G5900E; Celeron G5900TE |
| CPU socket | LGA1200 |
| Memory | up to 128GB |
| RAS | Hardware monitor (Fan speed / Temperature / Voltage) |
| GPU | – |
| AI Performance | – |
| Security | – |

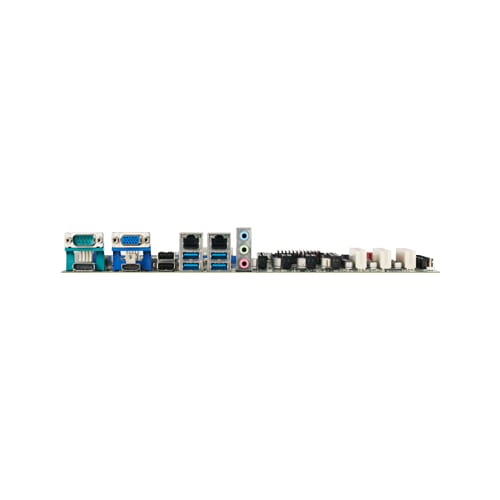

| Video | 1x DisplayPort (v1.2); 1x HDMI; 1x Analog RGB |
|---|---|
| LAN | 2x 1000BASE-T |
| Wireless | – |
| Audio | 1x Line out; 1x Line in; 1x Mic-in |
| I/O | 4x USB3.2 Gen2; 2x USB2.0; 1x RS-232C/422A/485 |
| Memory card | – |
| Video | – |
|---|---|
| LAN | – |
| Audio | – |
| I/O | 2x USB3.2 Gen1; 4x USB2.0; 5x RS-232C |
| Power connector | 1x 24-pin ATX; 1x 8-pin ATX 12V |
| Expansion bus | 1x M.2 Key M (2242/2280); 1x PCI Express(x16); 2x PCI Express(x4); 4x PCI |
|---|---|
| Drive bay | – |
| Input voltage | 3.3VDC; 5VDC; 5VDC (stand by); 12VDC |
|---|
| Operating temperature | 0 to 60°C (32 to 140°F) |
|---|---|
| Storage temperature | -40 to 80°C (-40 to 176°F) |
| Standards & Certifications | CE; FCC Class B |
| Model | Description | Certification |
|---|---|---|
| GMB-AQ47000 | Industrial Motherboard / ATX / 10th Gen. Intel Core Processor, Intel Q470E chipset. *1, *2 |
|
