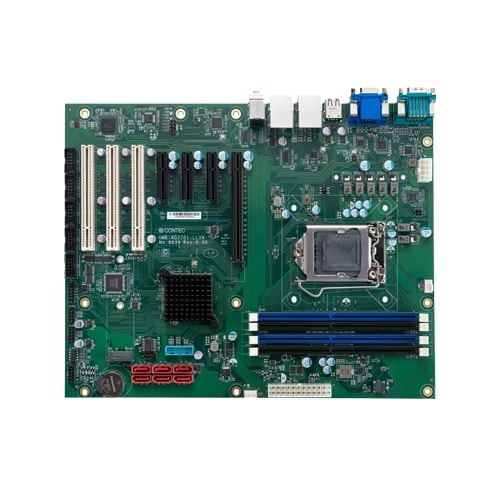

Intel 8th / 9th Gen. Core Desktop (Coffee Lake Refresh-S) Processor ATX Industrial Motherboard
| Type | ATX |
|---|
| Supported OS | Windows 10 |
|---|
| CPU Generation (Development code) | 9th Gen. (Coffee Lake R-S); 8th Gen. (Coffee Lake-S) |
|---|---|
| Processor | Core i7-9700E; Core i7-8700; Core i5-9500E; Core i5-8500; Core i3-9100E; Core i3-8100; Pentium G5400; Celeron G4900 |
| CPU socket | LGA1151 |
| Memory | up to 64GB |
| RAS | Hardware monitor (Fan speed / Temperature / Voltage); Remote power-on; Watchdog timer |
| GPU | – |
| AI Performance | – |
| Security | TCG TPM 2.0 |

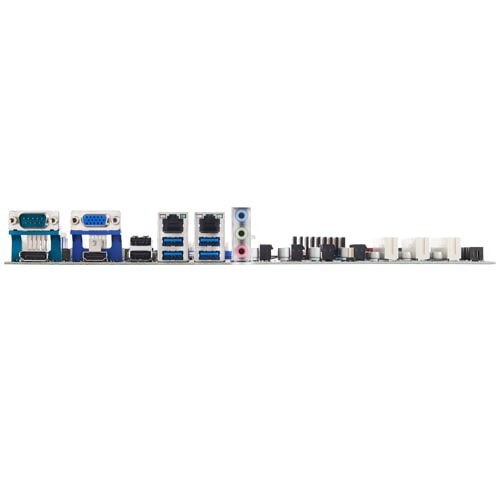

| Video | 1x DisplayPort; 1x HDMI; 1x Analog RGB |
|---|---|
| LAN | 2x 1000BASE-T |
| Wireless | – |
| Audio | 1x Line out; 1x Line in; 1x Mic-in |
| I/O | 4x USB3.2 Gen2; 2x USB2.0; 1x RS-232C/422A/485 |
| Memory card | – |
| Video | – |
|---|---|
| LAN | – |
| Audio | – |
| I/O | 2x USB3.2 Gen1 (USB3.0); 4x USB2.0; 5x RS-232C |
| Power connector | 1x 24-pin ATX; 1x 8-pin ATX 12V |
| Expansion bus | 1x PCI Express(x16); 3x PCI Express(x4); 3x PCI |
|---|---|
| Drive bay | – |
| Input voltage | – |
|---|
| Operating temperature | 0 to 60°C (32 to 140°F) |
|---|---|
| Storage temperature | -40 to 80°C (-40 to 176°F) |
| Standards & Certifications | CE; FCC Class A |
| Model | Description | Certification |
|---|---|---|
| GMB-AQ3701-LLVA | ATX IMB 8th / 9th Gen. Intel Core Processor, Intel Q370 Chipset |
|
