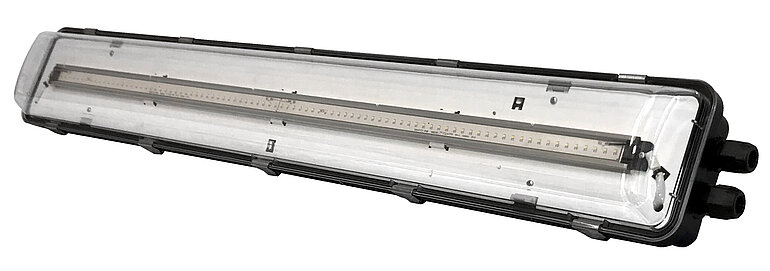

Lighting fixture type GLL is a GRP linear LED luminaire available in normal and emergency version. It is an explosion-protected item intended for use in surface industries (group IIC and IIIC), in areas where, during normal activities, explosive atmospheres caused by gases, vapors, mists, and/or air/dust mixtures are likely to occur. It has been designed to be capable of functioning in conformity with the operational parameters and ensures a high level of protection. It is used to illuminate operating and storage facilities in potentially explosive areas and may be deployed in Zones 1, 2 as well as 21 and 22.
ATEX:Ex II 2G Ex db eb mb IIC T5 Gb (+53°C)Ex II 2G Ex db eb mb IIC T4 Gb (+60°C)Ex II 2D Ex tb IIIC T85°C Db, IP66
IECEx:Ex db eb mb IIC T5 Gb (+53°C)Ex db eb mb IIC T4 Gb (+60°C)Ex tb IIIC T85°C Db, IP66
-20 °C ≤ Ta ≤ +60 °C (T4)-20 °C ≤ Ta ≤ +53 °C (T5)
| Protection class | IP66 (IEC/ EN 60529) |
|---|---|
| Dimensions | see data sheet |
| Material | glass-fiber reinforced polyester resin, self-extinguishing acc. To UL94 |
| Lifetime | 54.000 hours L80B20 @Ta40°C |
| Weight | see datasheet |
| Voltage |
220-240 VAC electronic driver 50/60 Hz (normal/eme. version) 176-280 VDC electronic driver (normal version only) |
| Current | see operating instructions |
