FXS3001-CN_img1FXS3001-CN_img1

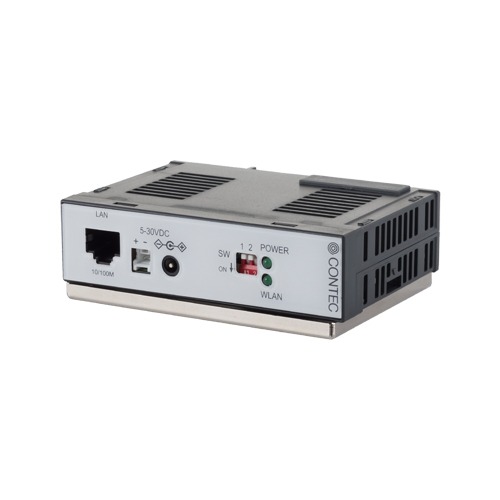

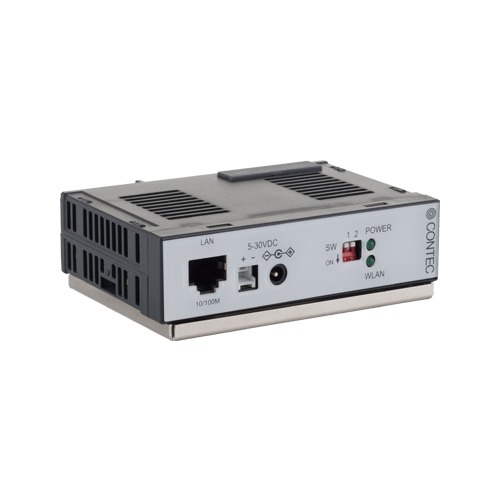

FXS3001-CN

  • Compliant with 4 standards of IEEE802.11n / a (W52 / W58 * 1) / b / g
  • Can be switched to a station (slave station), access point (master station), or repeater
  • Equipped with WSL, an original encryption technology that can be used with WPA2 / WPA and WEP
  • Equipped with various functions such as VLAN and virtual AP functions
Request Quote


    Email Verification Code (required)



    SKU: FXS3001-CN Categories: , Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is a wireless LAN converter that has been certified by the Radio Law of China. It complies with the wireless LAN standard IEEE 802.11n / a / b / g and supports a wide input power supply (5-30VDC).
    By simply connecting to the LAN port (RJ-45 connector) of a LAN-compatible device with a LAN cable, you can build a wireless LAN system without depending on the OS or CPU.
    * This product cannot be used in Japan.

    • Compliant with 4 standards of IEEE802.11n / a (W52 / W58 * 1) / b / g
      • You can select from 9ch (W52 / W58 * 1) in the 5GHz band (IEEE802.11n / a) and 1 to 13ch in the 2.4GHz band IEEE802.11n / g / b, enabling flexible wireless network design considering radio wave interference. is. It also supports the IEEE 802.11n standard dual channel (using 40MHz width).
      • * 1 W52: 36, 40, 44, 48ch, W58: 149,153,157,161,165ch
    • Can be switched to a station (slave station), access point (master station), or repeater
      • By switching the mode, it can be operated not only as a station (slave station) but also as an access point (master station) or repeater. It can be used as an access point or repeater.
    • Equipped with WSL, an original encryption technology that can be used with WPA2 / WPA and WEP
      • In addition to the advanced security standards WPA2 / WPA and IEEE 802.1X certification, it is also equipped with the original encryption technology WSL that can be used in combination with these. It also supports MAC address filtering and ESSID hiding.
    • Equipped with various functions such as VLAN and virtual AP functions
      • It is equipped with a VLAN function for building an ideal network and a virtual AP function that allows one AP to operate as multiple virtual APs and allow different security settings. In addition, a large amount of event logs (7 times that of conventional products: about 15,000 event logs) can be saved.

    Specifications

    Specifications
    Wireless LAN Module
    Type Access point; Staition; Repeater
    Supported Frequency Band 5GHz; 2.4GHz
    Supported Wireless LAN Standards IEEE802.11n; IEEE802.11a; IEEE802.11g; IEEE802.11b
    PoE Compliant –

    Ordering Informations

    Ordering Information
    Model Description Certification
    FXS3001-CN IEEE802.11n/a/b/g Wireless LAN access point (Master/Slave Station/Repeater, China only)
    Options
