FXE5000_img1FXE5000_img1

FXE5000

  • Wi-Fi 6E (IEEE 802.11ax) compliant high-speed and low-latency communication
  • Mesh Wi-Fi network
  • Smart Roaming (Duplex)
  • Supports a various power supply
  • The proprietary encryption technology “WSL” that is available along with WPA3/WPA2/WPA and WEP
  • Features variety of functions, including VLAN and a virtual AP function

Data Sheet PDF

SKU: FXE5000 Categories: , Tag: Brand:
Description
Specifications
Ordering Informations
Overview / Features

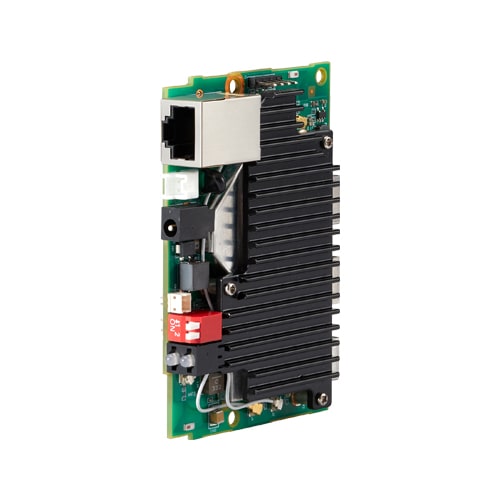

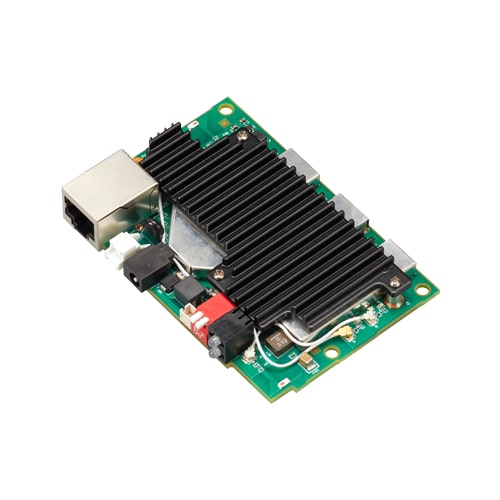

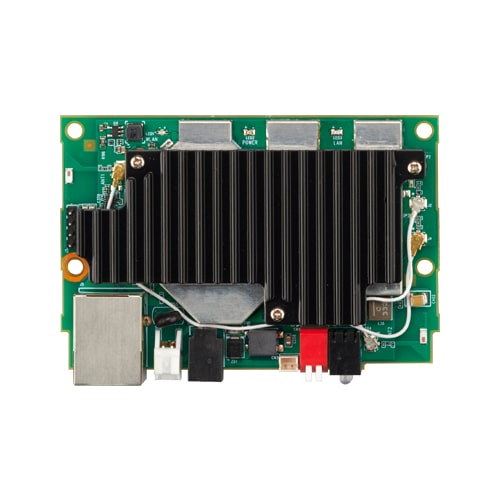

This product is a built-in type wireless LAN board that is compatible with Wi-Fi 6E (IEEE 802.11ax) and wide input power supply (5 – 30 VDC). It has various functions such as smart roaming (duplex) and mesh Wi-Fi network support. By simply connecting a LAN cable to the LAN port (RJ-45 connector) of a LAN device, you can turn the device into a wireless LAN device with advanced security, stable communication, and excellent maintainability using the latest standards, regardless of the OS or CPU. By switching modes, it can be used not only as an access point (master station) but also as a station (slave station) or repeater. It can be used as an access point or repeater. In Dual Station Mode, you can use both 5 GHz/6 GHz and 2.4 GHz interfaces simultaneously.

  • *Only Japanese model support the 6GHz band.
  • Wi-Fi 6E (IEEE 802.11ax) compliant high-speed and low-latency communication
    • Effective throughput is greatly improved, and data transmission and reception is 2.8 times faster (2.4Gbps) than Wi-Fi 5 (800Mbps). New technologies such as OFDMA(Orthogonal Frequency Division Multiple Access) and MU-MIMO (Multi-User MIMO) have been implemented, greatly improving throughput degradation and delays that occur when many satellite stations are used simultaneously. In addition to the conventional 2.4 GHz and 5 GHz bands, the new 6 GHz band * 1 can be used to reduce radio interference and create a faster and more stable communication environment. In addition, the 2.4 GHz band and the 5 GHz/6 GHz band can be used simultaneously.
      • *1Single station or dual station operation only
  • Mesh Wi-Fi network
    • The wireless mesh network function allows a single network group (ESSID) to be configured by multiple access points in a mesh pattern. Even if a failure occurs in any part of the communication path, the network can be built resistant to failures, such as automatically securing the best alternative path and maintaining communication connections. Wireless connections between access points make it easy to expand the communication area by simply increasing the number of access points.
  • Smart Roaming (Duplex)
    • Dual Station Mode is installed to extend communication from one wireless connection to two wireless connections. If one wireless connection is lost, data communication will not be lost while roaming because another wireless connection is available. Contec’s unique tuning for “uninterruptible wireless LAN” enables high-dimensional roaming.
  • Supports a various power supply
    • AC adaptor (sold separately) and 5~30VDC DC power supply are supported.
  • The proprietary encryption technology “WSL” that is available along with WPA3/WPA2/WPA and WEP
    • In addition to the certifications for advanced security standards WPA3/WPA2/WPA and IEEE802.1X, this product is also equipped with our proprietary encryption technology “WSL”, which can be used at the same time as these certifications. MAC address filtering and ESSID hiding are also supported.
  • Features variety of functions, including VLAN and a virtual AP function
    • This product is equipped with a VLAN function for constructing virtual networks and a virtual AP function for operating one AP as multiple virtual APs with different security settings. Also, large capacity event logs can be saved.
      * VLAN function will be added by future firmware version up.

Specifications

Specifications
Wireless LAN Module
Type Access point; Staition; Repeater
Supported Frequency Band 6GHz; 5GHz; 2.4GHz / 5GHz selectable; 2.4GHz
Supported Wireless LAN Standards IEEE802.11ax; IEEE802.11ac; IEEE802.11n; IEEE802.11a; IEEE802.11g; IEEE802.11b
PoE Compliant
  • *Only Japanese model support the 6GHz band.

Ordering Informations

Ordering Information
Model Description Certification
FXE5000 IEEE802.11ax/ac/n/a/b/g Embedded Wireless LAN Board (Master/Slave Station/Repeater) for Japan
  • VCCI
  • TELEC
FXE5000-EU IEEE802.11ax/ac/n/a/b/g Wireless LAN Access Point, External Antenna (Access Point / Station) for Europe
  • CE marking
FXE5000-KR IEEE802.11ax/ac/n/a/b/g Wireless LAN Access Point, External Antenna (Access Point / Station) for Korea
FXE5000-US IEEE802.11ax/ac/n/a/b/g Wireless LAN Access Point, External Antenna (Access Point / Station) for USA
  • FCC compliant
  • *Only Japanese model support the 6GHz band.
Options
