FXE3000_img1FXE3000_img1

FXE3000

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: FXE3000 Categories: , Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

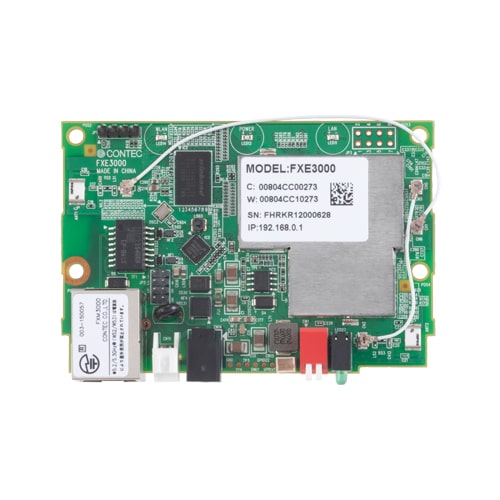

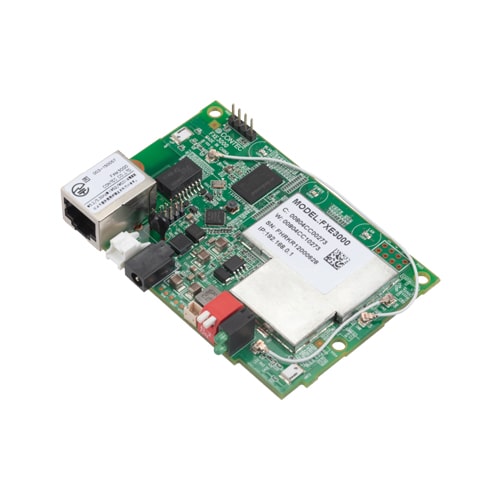

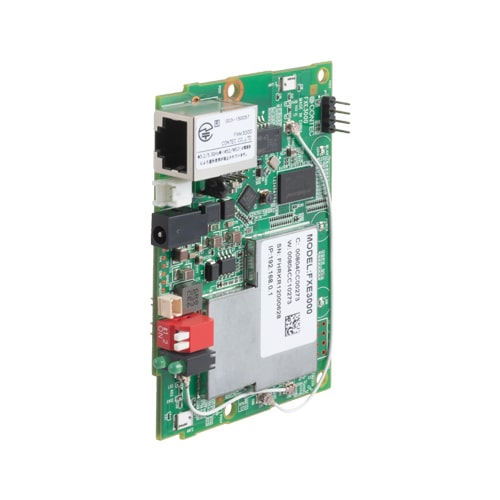

    This product is an embedded-type wireless LAN board that is compatible with the wireless LAN standards IEEE802.11n/a/b/g and supports wide input power supplies (5 to 30 VDC) and power supplied from the LAN connector.* Just connecting this product to a LAN port of an LAN-compliant equipment, then the equipment will features the latest standards-compatible higher security, stable communication and easy maintenance without its OS or CPU.

      • There are several product modules that correspond to USA, Canada, India, Sigapore, South Korea, Taiwan, Europe (R & TTE Directive) and Thailand respectively.
      • You can choose 24 ch (W52/W53/W56/W58*1) in the 5 GHz (IEEE802.11n/a), and in the 2.4 GHz (IEEE802.11n/b/g), you can choose from 1 to 13ch *2. So, it is possible to design a flexible wireless network to adjust a radio wave interference.
      • This product supports an AC adapter (sold separately), DC power supplies from 5 to 30 VDC, and power supplied from the LAN connector.
      • You can use this product not only as a station (a slave station) but also as an access point (a master station) and as a repeater by switching modes.
      • In addition to the certifications for advanced security standards WPA2/WPA and IEEE802.1X, this product is also equipped with our proprietary encryption technology ‘WSL’, which can be used at the same time as these certifications. MAC address filtering and ESSID hiding are also supported.
      • This product is equipped with a VLAN function for constructing virtual networks and a virtual AP function for operating one AP as multiple virtual APs with different security settings. Also, large capacity event logs (with approximately 15,000 events, which is 7 times our conventional products) can be saved.

    Specifications

    Specifications
    Wireless LAN Module
    Type Access point; Staition; Repeater
    Supported Frequency Band 5GHz; 2.4GHz
    Supported Wireless LAN Standards IEEE802.11n; IEEE802.11a; IEEE802.11g; IEEE802.11b
    PoE Compliant –

    Ordering Informations

    Ordering Information
    Model Description Certification
    FXE3000 IEEE802.11n/a/b/g Embedded Wireless LAN access point board (Master/Slave Station/Repeater, Japan only)
    • TELEC
    • VCCI
    FXE3000-EU IEEE802.11n/a/b/g Embedded Wireless LAN access point board (Master/Slave Station/Repeater, Europe (RE Directive) and Thailand markets)
    • CE marking
    FXE3000-KR IEEE802.11n/a/b/g Embedded Wireless LAN access point board (Master/Slave Station/Repeater, Korea only)
    FXE3000-TW IEEE802.11n/a/b/g Embedded Wireless LAN access point board (Master/Slave Station/Repeater, Taiwan only)
    • NCC
    FXE3000-US IEEE802.11n/a/b/g Embedded Wireless LAN access point board (Master/Slave Station/Repeater, USA, Canada, India, and Singapore markets)
    • FCC compliant
    • UL
    • WPC India
    Options
    Cable
    Item Item Name
    FX-ANT-C05 Coaxial cable (0.5m) for FLEXLAN series
    FX-ANT-C12 12m Coaxial cable for FX-ANT-A2/A3/A5
    FX-ANT-C2 Coaxial cable (0.5m) for FLEXLAN series
    FX-ANT-C25H Coaxial cable 25m for FX-ANT-A2/A3/A5
    FX-ANT-CEX2 SMA coax conversion cable(0.12m)
    FX-ANT-CEX3 SMA coax conversion cable(0.20m)
    Antenna
    Item Item Name
    FX-ANT-A3 Option Antenna for FLEXLAN
    FX-ANT-A8 Option Antenna board for FXE3000 series
    FX-ANT-A9 Option waterproof dipole antenna
    Other Accessories
    Item Item Name
    FX-ANT-LCC1 L type conversion connector
    Extended Warranty Service
    Item Item Name
    ESP-F5 Extended warranty service package (5 years service course) (Japan only)
    ESP-S1 Extended warranty service package (Extension one year) (Japan only)
    • ※An FX-ANT-CEX2 or FX-ANT-CEX3 is necessary when one of the following option products: FX-ANT-A7, FX-ANT-A9, FX-ANT-LCC1, FX-ANT-C05, FX-ANT-C2, FX-ANT-C12, and FX-ANT-C25H is going to be connected to the FXE3000 series board.
