FPD-V11WB-10_img1FPD-V11WB-10_img1

FPD-V11WB-10

  • HDMI and USB Type-C (DP Alt mode) input support
  • USB PD support
  • Host PC power supply interlock function

Data Sheet PDF

SKU: FPD-V11WB-10 Category: Tag: Brand:
Description
Specifications
Ordering Informations
Overview / Features

This product is an LCD for use in combination with a host computer such as Contec’s IPC Series.

  • HDMI and USB Type-C (DP Alt mode) input support
    • This product supports HDMI and USB Type-C (DP Alt mode) input.
  • USB PD support
    • This product supports USB PD (Power Delivery), enabling video input, touch panel communication, and power supply simultaneously with a single cable when connected to a compatible PC.
  • Host PC power supply interlock function

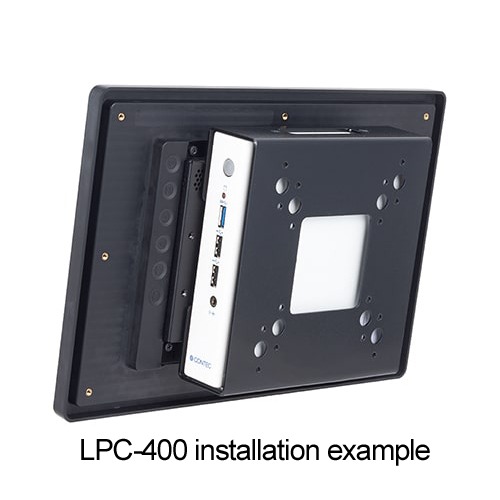

    • When connected to an LPC-400*別ウィンドウが開きます FA computer via HDMI, the connected PC can be turned on or off in conjunction with the power status of this product.
      * Support may vary depending on the time the product was sold. Contact your retailer for more information.

Specifications

Specifications
Mechanical Design
Mounting Panel Mount; VESA 100 x 100
Touch Screen
LCD size 11.6-inch
LCD resolution 1920 x 1080 (Full HD)
Touch panel resolution –
Detection method Projected capacitive touch (PCAP)
Interface (TP)
Video input DisplayPort; HDMI
Touch panel input USB
Power
Input voltage 11.4 to 12.6VDC; 90 to 264VAC
Environment
Operating temperature 0 to 40°C (32 to 104°F)
Storage temperature -10 to 50°C (14 to 122°F)
Standards & Certifications CE; FCC Class A; UKCA; VCCI Class A

Ordering Informations

Ordering Information
Model Description Certification
FPD-V11WB-10 11.6-inch FLAT PANEL DISPLAY
  • CE marking
  • FCC compliant
  • VCCI
Options
Power Supply / AC Adapter
Item Item Name
PWA-36AWD2 Switching AC Adapter (12VDC 3.0A)
Other Accessories
Item Item Name
FPD-BKT11W-IMNT Waterproof gasket and mounting bracket set for FPD-V11WB-10
FPD-GSK11W-OMNT Waterproof gasket for FPD-V11WB-10
