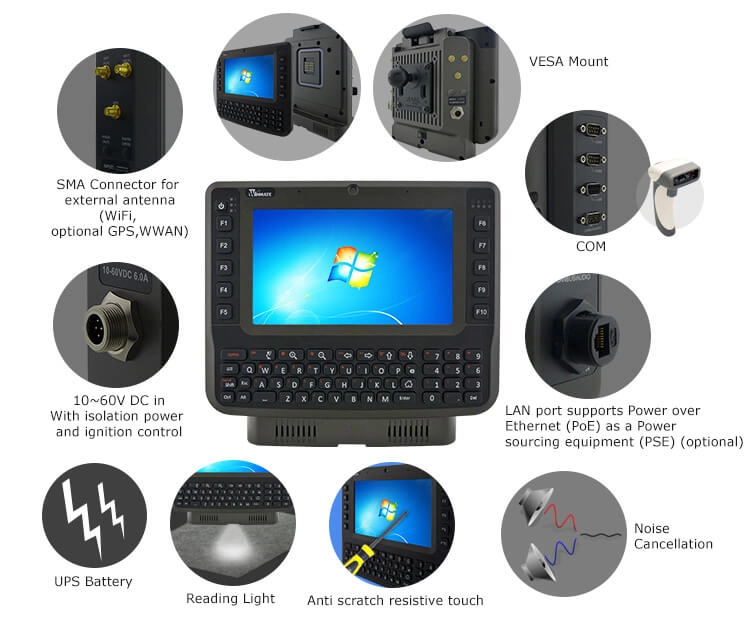

Compact 8” truck PC complete with full keyboard for those applications needing key input.

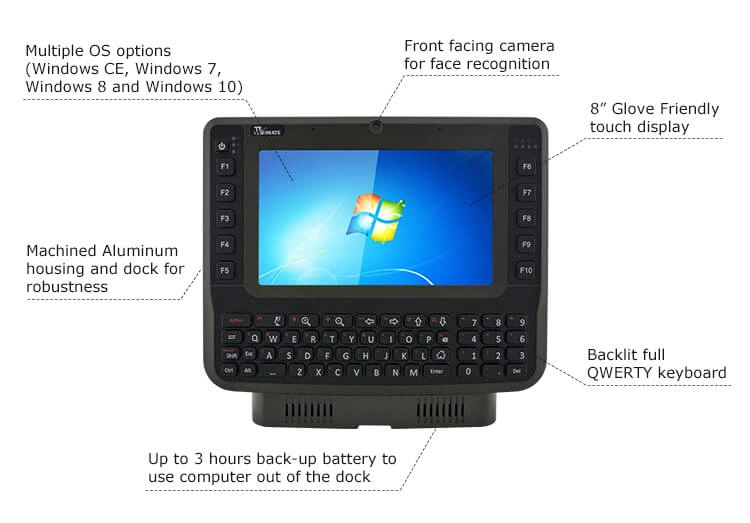

The FM08 and FM10 Vehicle-mount Computer share the same system and docking modules, only differing in screen size and keypad display. The FM08 allows flexible navigation via the GFG resistive touch screen, readily accessible programmable function keys, and a separate QWERTY and numeric keypads.
For wireless connectivity the device comes equipped with Bluetooth 4.0 and comprehensive 802.11a/b/g/n/ac dual band WiFi, along with the u-blox GPS module. This vehicle-mount computer is built to endure the rigors of the warehouse, and designed to fit seamlessly into forklift and other heavy duty vehicles.
| Size | 8″(16:9) |
| Brightness | 500 nits |
| Resolution | 800 x 480 |
| Contrast Ratio | 1100:1 |
| Touch | Anti-scratch Resistive touch |
| Viewing Angle | -80~80 (H) ; -80~80(V) |
| Processor | Intel Quad-Core Atom E3845 Processors (1.91GHz) |
| Memory | 4GB SODIMM DDR3L-1600 (up to 8GB) |
| Storage | 64GB M.2 SSD (up to 256 GB) |
| OS | Windows 10 IoT Enterprise Windows Embedded 8.1 Industry Pro Windows 7 Professional for Embedded System Windows Embedded Standard 7 |
| Camera | 2MP Camera at front side (only available on Windows 7/ 8.1/10 IoT) |
| WLAN | 802.11 a/b/g/n/ac |
| Bluetooth | Bluetooth 4.0 |
| WWAN | Optional 4G/ LTE or 3G |
| GPS | u-Blox Neo-6Q located on the Vehicle Dock |
| Dimensions (W x L x H) | Computer: 268 x 214 x 32 mm (10.6″ x 8.42″ x 1.25″) Docking: 202 x 245 x 52 mm (7.9″ x 9.6″ x 2.04″) |
| Net Weight (kg) | Computer 1.6 kg and Docking 1.6 kg |
| Operating Temperature | With optional heater: -30°C to 50°C (-22°F to 122°F) AC mode: -20°C to 50°C (-4°F to 122°F) Batter mode: -10°C to 50°C (14°F to 122°F) |
| Storage Temperature | -30°C to 60°C (-22° to 140°F) |
| IP Proof | IP65 |
| Operating Humidity | 5% to 90% RH, non-condensing |
| Certifications | CE, FCC, UL60950-1, EN60950-1,PTCRB, FCC (Electromagnetic Emissions), IC (ICES-003) |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| ESD | Compliant with EN61000-4-2(enhanced ESD to ±12kV direct & ±15kV air) |
| Housing | Magnesium Alloy housing with fanless design |
| Impact | Support EN62262 IK07 rating |
| Computer | 1 x SIM Card Slot 1 x SD Card Slot 1 x USB 3.0 1 x 12V DC in power input jack |

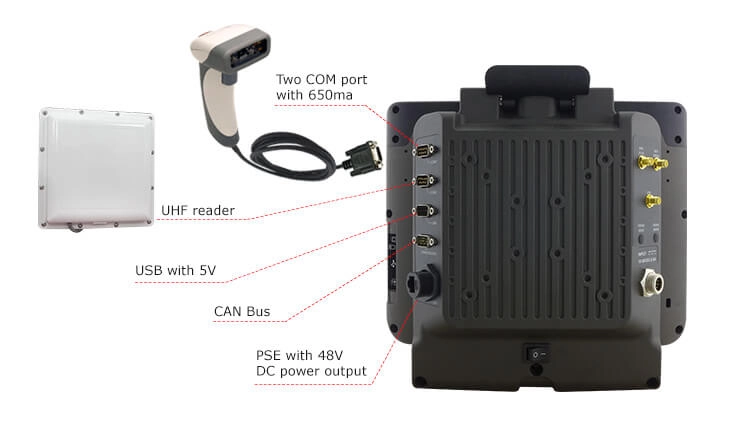

| Dock | 1 x COM 1 1 x COM 2 1 x USB 2.0 (support 2 x USB2.0) 1 x CANBUS / AUDIO 1 x 400Mbps LAN port (Optional PoE) as a Power Sourcing Equipment (PSE) support 802.3at Type 2 1 x Power Connector SMA Connector for external antenna (WiFi, Optional GPS, Optional WWAN) For product from Winmate Best Sellers category PoE is a default feature |
| Power Input | 10V-60V with isolation power and ignition control |
| Battery | 7.6V typ Battery (2S1P) |
| Battery Operating Time | Minimum 30 minutes |
| Mobile Device Management | SOTI MobiControl compatible |
