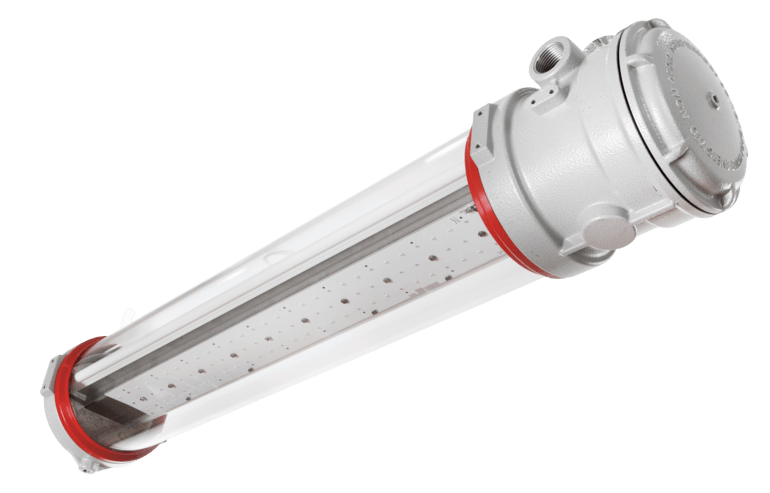

The Type EVFG linear luminaire with a fluorescent lamp or LED tube is an explosion-protected item of operating equipment with lamp sockets for fluorescent lamps Type T8 or LED tubes Ø26 with G13 base. It is used to illuminate operating and storage facilities in potentially explosive areas and may be deployed in Zones 1, 2 as well as 21 and 22.
ATEX:Ex II 2G Ex db eb IIC T6 GbEx II 2G Ex db op is IIC T6 Gb (for PCB LED type only)Ex II 2G Ex db eb op is IIC T6 Gb (for PCB LED type only)Ex II 2D Ex tb IIIC T85°C DbEx II 2D Ex op is tb IIIC T85°C Db (for PCB LED type only)
IECEx:Ex db eb IIC T6 GbEx db op is IIC T6 Gb (for PCB LED type only)Ex db eb op is IIC T6 Gb (for PCB LED type only)Ex tb IIIC T85°C DbEx op is tb IIIC T85°C Db (for PCB LED type only)
-20 °C ≤ Ta ≤ +60 °C
| Protection class | IP66 (IEC/ EN 60529) |
|---|---|
| Dimensions | see data sheet |
| Material | marine grade copper free aluminium (control gear & lamp body) high-temperature resistant borosylicate glass tube |
| Weight | see datasheet |
| Voltage |
100 – 240 V 50/60 Hz (cos ρ ≥ 0,98) – AT version (LED) 220 – 240 V 50/60Hz (cos ρ ≥ 0,98) – TR |
