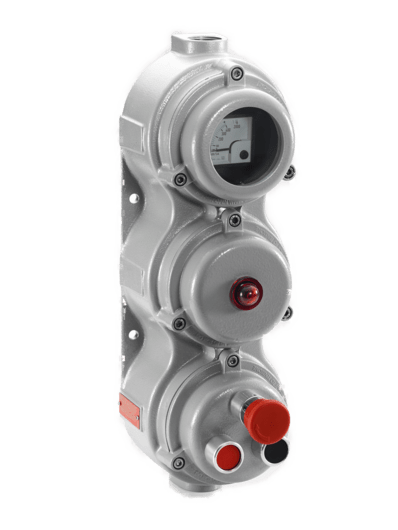

EFDC3D control and signaling station

Ex d IIC multiple push button control and signaling stations for zone 1/2 – 21/22
EFDC3D..
EFDC3T..
  • IP 66
  • Aluminium
  • Equipped with one or more different operators
  • For command and signaling of auxiliary circuits
Request Quote


    Email Verification Code (required)



    Category:
    Description
    Technical Data
    Manuals/Operating Instructions/Guides
    Declarations
    Data Sheets

    Flameproof Ex d control stations BARTEC EFDC3.. series are designed to be installed in industrial plants, where potential hazardous atmospheres occur.These areas are either classified as zone 1 and 2 or as zone 21 and 22.The control stations of this series are used for command and signaling of auxiliary circuits.

    Marking

    ATEX:(Ex II 2 G) Ex b IIC T6/T5 Gb(Ex II 2 D) Ex tb IIIC T85°C/T100°C Db IP66IECEx:Ex d IIC T6 or T5 GbEx tb IIIC T85°C or T100°C Db IP66

    Ambient Temperature

    -60 °C to +60 °C as standard

    Certification

    Technical Data

    Protection class IP 66 (IEC/EN 60529)
    Material Aluminium alloy
    Weight see data sheet
    Dimensions see data sheet

    Manuals/Operating Instructions/Guides

      ATEX – Instruction for use
      IECEx – Instruction for use
      INMETRO – Instruction for use

    Declarations

      ATEX – Declaration of conformity
      IECEx – Declaration of conformity

    Data Sheets

      Data sheet – Push button and control stations EFDC3
