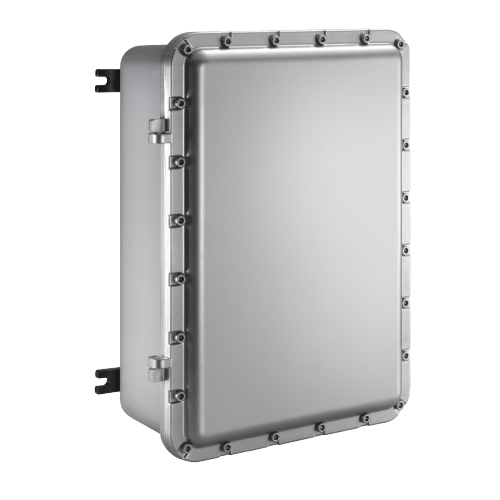

Our flameproof enclosure EJB or BARTEC B series is designed to be installed in industrial plants, where potential hazardous atmospheres occur.These areas are either classified as zone 1 and 2 or as zone 21 and 22.The flameproof enclosure EJB is designed to contain regular industrial electrical components or equipment on the mounting plate like fuses, transformers, circuit breakers, relays, PLC etc.. This enclosure can fully integrated in the hazardous area as control or distribution panel. Our flameproof enclosure EJB for hazardous areas is globally certified for use in worldwide applications and plants.
ATEX:(Ex II 2 G) Ex db IIA or IIB or IIB+H2 T6…T3(Ex II 2 G) Ex db [ia/ib IIA or IIB or IIC Ga] IIA or IIB or IIB+H2 T6(Ex II 2 D) Ex tb IIIC T85°C…T200°C(Ex II 2 D) Ex tb [ia Da/ib] IIIC T85°CIECEx:Ex db IIA or IIB or IIB+H2 T6 orT5 or T4 or T3 GbEx db [ia IIA or IIB or IIC Ga] IIA or IIB or IIB+H2 T6 or T5 or T4 or T3 GbEx db [ib IIA or IIB or IIC] IIA or IIB or IIB+H2 T6 or T5 or T4 or T3 GbEx tb III C T85°C or T100°C or T135°C or T200°C DbEx tb [ia Da] IIIC T85°C or T100°C or T135°C or T200°C DbEx tb [ib] IIIC T85°C or T100°C or T135°C or T200°C Db
-60 °C to +80 °C (standard)
| Protection class | IP 66 (IEC/EN 60529) |
|---|---|
| Material | Enclosure material:Copper free aluminium alloy ( 0.1% copper) Surface treatment: External powder type painted RAL9006 Internal anti-condense painting RAL2004 (optional) Enclosure lid: Bolts in stainless steel AISI304 (A2) Internal mounting plate : Aluminium |
| Weight | see data sheet |
| Dimensions | see data sheet |
| Accessories | O-Ring silicon rubber gasket (optional) Glass round/square shape window (optional) Drain and breather valves (optional) Hinged lid : On long side (standard) On shorth side (optional) |
| Quantity of cable entries | see data sheet |
| Voltage | Max. rated voltage : 13kV (AC) / 750V (DC) |
| Current | Max. rated current : 2000A |
| Imapct test | 7 Joule for metallic parts of enclosure 2 Joule for tempered glass windows |
