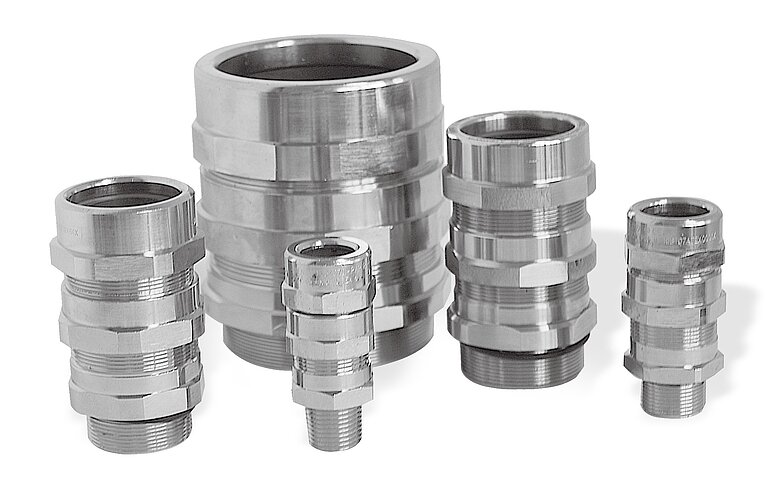

Flameproof Ex d cable glands for armoured cables BARTEC PAP series are designed to be installed in industrial plants, where potential hazardous atmospheres occur.These areas are either classified as zone 1 and 2 or as zone 21 and 22.Suitable for
PAP.. – PAP-B.. series has a double compression type for indoor and outdoor useThese glands identified were wet deluge tested and are considered to comply with the relevant requirements of Shell DTS:01
ATEX:(Ex II 2 G) Ex db IIC Gb(Ex II 2 G) Ex eb IIC Gb(Ex II 2 G) Ex ia IIC Gb(EX II 3 G) Ex nR IIC Gc(Ex II 2 D) Ex tb IIIC Db(EX II 3 D) Ex tc IIIC DcIP66 or IP68IECEx:Ex db IIC GbEx eb IIC GbEx ia IIC GbEx nR IIC GcEx tb IIIC DbEx tc IIIC DcIP66 or IP66/68
-40 °C to +90 °C standard(rubber rings EPDM-60)-60 °C to +180 °C on demand(rubber rings SILICON)
| Protection class | IP 66 or IP 68 (IEC/EN 60529) Shell DTS:01 |
|---|---|
| Material | Marine grade Aluminium alloy Stainless steel AISI 316L Nickel plated brass OT-58 |
| Weight | see data sheet |
| Dimensions | see data sheet |
| Accessories | |
| Quantity of cable entries | |
| Voltage | |
| Current | |
| Impact test |
