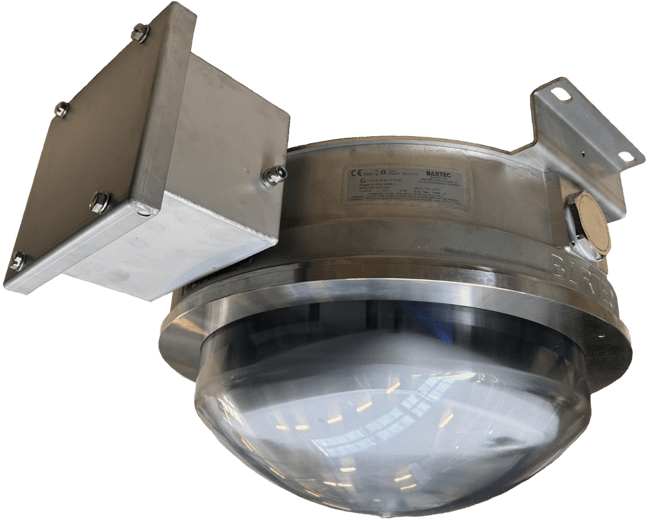

The EXgate™360 enclosure makes it easy to deploy any wireless network in hazardous areas, Zone 1.
ATEX:
II 2 GEx db IIA/IIB/IIC T6/T5/T4 Gb orEx db eb IIA/IB/IIC T6/T5/T4 Gb
II 2 DEx tb IIIC T70°C/80°C/95°C/100°C Db
IECEx:
Ex db IIA/IIB/IIC T6/T5/T4 Gb orEx db eb IIA/IIB/IIC T6/T5/T4 GbEx tb IIIC T 70°C / 80°C / 95°C / 100°C Db
-20ºC ≤ Tamb ≤ +(see certificate)
| Material | Stainless steel 316L / CF3M / Polycarbonate dome |
|---|---|
| IP Rating | IP66 |
| Dimensions | Ø 364mm, Height 252mm with bracket. 207mm without bracket. |
| Weight | Approx. 17.0kg (including mounting bracket, excluding electrical device) |
| Surface treatment | Shot blasted and acid pickled |
| Rated voltage | 3 to 24 VDC, POE (37-57V DC) / 230 VAC |
| Rated current | ≤ 3A (DC), ≤ 0,5A (AC) |
| Max EIRP from antennas | Gas group: IIA = 6W, IIB = 3.5W, IIC = 2W. |
