In many hazardous areas, it is necessary to provide products with type plates, batch markings or logistics labels.

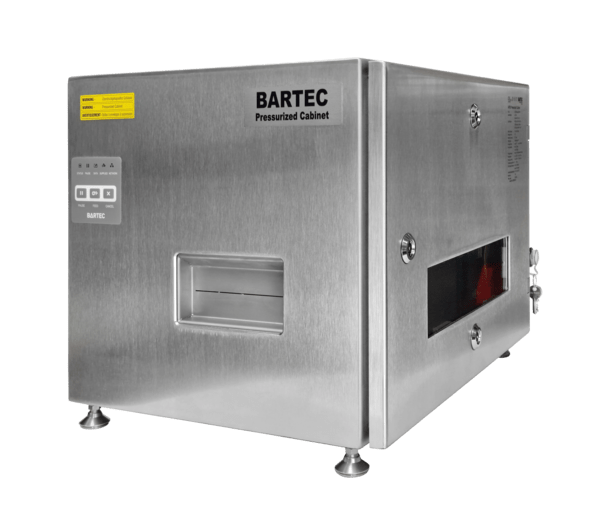

Ex p Slot-Printer Zone 107-3704-2222/900.
ATEX:Ex II 2G Ex pxb IIC T4 Gb
IECEx:Ex pxb IIC T4 Gb
Ex p Slot-Printer Zone 2A7-3704-2122/900.
ATEX:Ex II 3G Ex pzc IIC T4 Gc
IECEx:Ex pzc IIC T4 Gc
Operating temperature+5 °C to +40 °C @ T4(41 °F to 104 °F @ T4)Storage temperature0 °C to +60 °C(32 °F to 140 °F)
| Protection class | IP 44 |
|---|---|
| Dimensions | 375 x 380 x 610 mm (W x H x D) |
| Material | Stainless steel V4A |
| Pressure | Pressure range: 1 to 15 mbar Purge gas pre compression: 1 to 16 bar Operating pressure: 1,5 bis 3 mbar Purge pressure: > 3,0 mbar |
| Rated voltage | 100… 230 V |
| Rated current | max. 4 A |
| Interface | Ethernet or USB (on demand) or RS 232 (on demand) |
| Resolution | 203 dpi oder 300 dpi |
| Printer engine | ZEBRA ZT111 |
