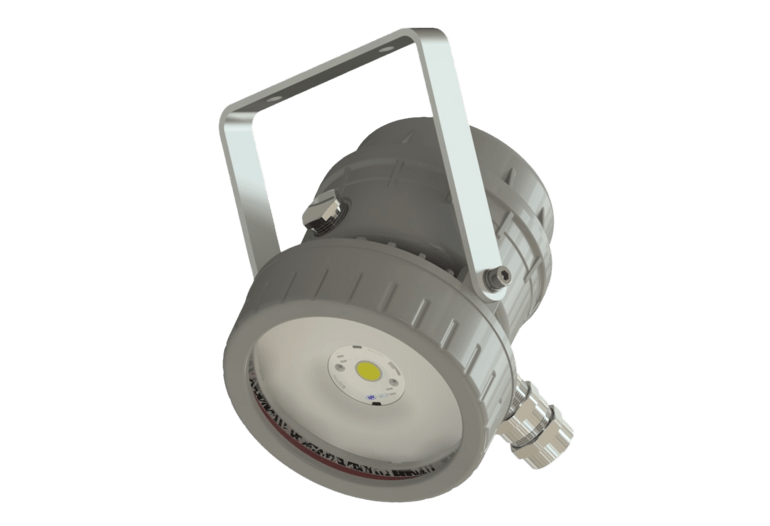

The Type EVAC-LED pendant light fitting is designed for potentially explosive atmospheres in Zones 1, 2 as well as 21, and 22. EVAC-LED is characterized by its robust design, a high IP protection type, and a large ambient temperature range. This especially is the reason these lights are used in climatic regions where extremely rough ambient conditions prevail. Typical application areas are offshore oil and gas drilling installations, the industrial and chemicals sector, and wherever flammable dust arises. The light is designed with a type of protection “Ex d”.
ATEX:Ex II 2G Ex db IIC T6/T5/T4 GbEx II 2D Ex tb IIIC T85/100/135°C Db, IP66
IECEx:Ex db IIC T6/T5/T4 GbEx tb IIIC T85/100/135°C Db, IP66
-60 °C ≤ Ta ≤ +60 °C (EVAC201L-… models)-40 °C ≤ Ta ≤ +60 °C (EVAC501L-… models)
| Protection class | IP66 (IEC/ EN 60529) |
|---|---|
| Dimensions | see data sheet |
| Material | marine grade copper free aluminium (control gear & lamp body) high-temperature resistant borosylicate glass (diffuser) |
| Lifetime | > 84.000 hours L80B20 @Ta60 |
| Weight | see datasheet |
| Voltage | 100-277 Vac driver 50/60 Hz 127-250 Vdc driver (except C1, C3 and LPE models) 127-277 Vdc driver (EVAC..L-C3.. model only) |
