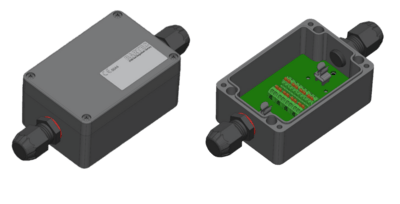

The new BARTEC Ethernet junction box is designed for connecting Ethernet cables in explosion-endangered areas. It is used to connect any CAT cables for high transmission rates up to 1 GBit/s in zone 1 and 21 in areas with potentially explosive atmosphere.
| Protection class | IP 66 |
|---|---|
| Material | Polyester |
| Weight | 0.4 kg |
| Size (W x L x H) | 110 x 75 x 55 mm |
| Transmission rate | 10/100/1000 Base-T |
| Power over Ethernet | according to PoE (802.3af 2003 …..802.3bt Type 4) |
| Terminal allocation | 1:1 intern connected |
