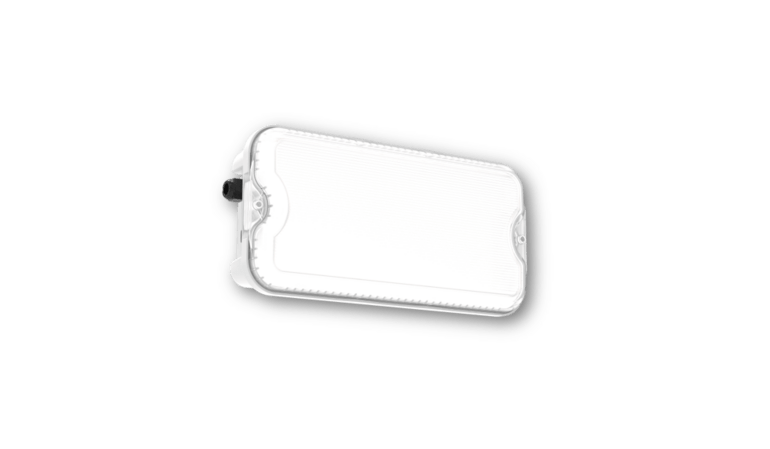

The Escape Ex2 series lighting fixtures are specifically designed for use in potentially explosive areas, certified for ATEX Zone 2/21 hazardous environments. High quality LED components guarantee exceptional efficiency up to 159 lm/W and extremely long lifetime of 100,000 hours even at elevated temperatures.Their IP66 and IK10 protection ratings guarantee reliable performance even in the harshest industrial conditions. The lightweight yet robust body, made of UV-stable polycarbonate (RAL 7035), ensures long-term durability without degradation from environmental factors. The opal polycarbonate cover provides effective light diffusion while maintaining high impact resistance, further enhancing their operational reliability. These fixtures offer versatile mounting solutions and feature innovativeemergency function control that enables safe operation without opening the luminaire in hazardous areas.
ATEX:Ex II 3G Ex nR IIC T6 GcEx II 2D Ex tb IIIC T85°C DbIECEx:Ex nR IIC T6 GcEx tb IIIC T85°C Db
-30 °C to +55 °C
| Protection class |
IP66 (IEC/ EN 60529) IK10 |
|---|---|
| Dimensions | see data sheet |
| Body | Plastic material PC (polycarbonate), colour grey RAL 7035) |
| Cover | PC (polycarbonate) opal |
| Lamp source | LED 4000K, CRI +80 Lifetime: > 70.000 hours L80B10 Ta@ 30 °C > 100.000 hours L70B10 Ta@ 30 °C |
| Weight | see datasheet |
| Power supply | EP – electronic – 220–240 V, 50/60 Hz |
