EPC-4000_img1EPC-4000_img1

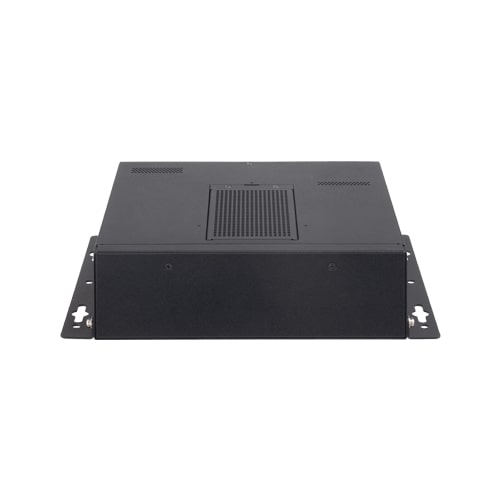

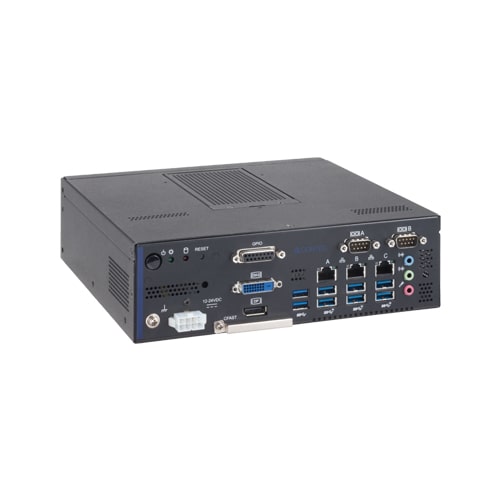

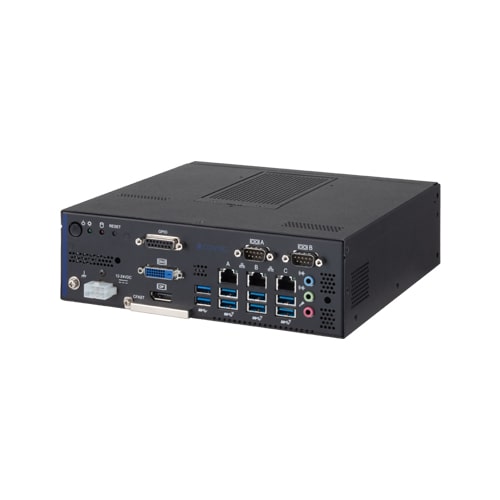

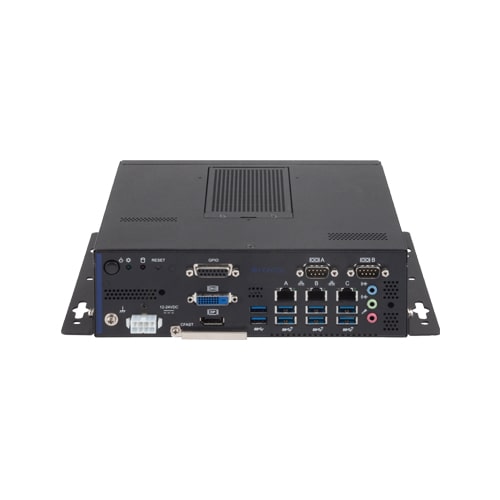

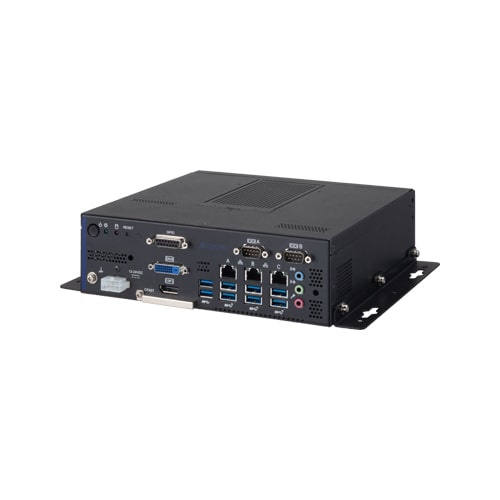

EPC-4000

  • Support for the Coffee Lake-S Intel Core processor series
  • Freely expandable peripherals and a rich variety of interfaces
  • Highly noise-resistant design with separated FG and SG
  • “Power failure protection system” features power-off without OS shutdown
  • Custom BIOS supporting real-time OS

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: EPC-4000 Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is a high-performance embedded personal computer equipped with the 8th generation Intel® Core™ processor series.Embedded type is adopted for CPU and chipset. You can use it with confidence by using parts that can be stably supplied.In addition, Contec’s unique functions such as “Power Failure Protection”, “CONTEC Fast Boot”, “Secure Boot USB Key”, “Disk Copy”, “Self-diagnosis” are available.

    Usage Examples

    Semiconductor manufacturing machines

    Machine tool (CNC)

    Robot controller

    Visual inspection system

    • Support for the Coffee Lake-S Intel Core processor series
      • Available with a power-saving, high-performance 8th-generation Core processor for advanced computation and drawing performance while minimizing power consumption. Reliable supply is ensured by the adoption of embedded CPUs. In addition, Moreover, CPU built-in high definition graphic chip Intel HD Graphics 630 makes it possible to play smooth full-HD image to dual displays of DVI-D and DisplayPort.
    • Freely expandable peripherals and a rich variety of interfaces
      • Equipped with expansion interfaces that include DVI-D, DisplayPort, 1000BASE-T × 3, USB 3.2 Gen 2 (USB 3.1) × 6, USB 3.2 Gen 1 (USB 3.0) × 2, serial (RS-232C) × 1, serial (RS-232C/RS-422A/RS-485) × 1, audio, and GPIO (isolated, Input × 4, Output × 4). This makes it possible to use this product in a variety of situations.
    • Highly noise-resistant design with separated FG and SG
      • Induction noise is the great enemy of electronic devices, and is produced by motors and other rotating devices, as well as by high-power actuators. Separating the FG (frame ground) and SG (signal ground) prevents malfunctions caused by induction noise from the FG.
    • “Power failure protection system” features power-off without OS shutdown
      • Equipped with the “Power failure protection system” function that protects data and prohibits writing to storage in the event of power failure. Along with the lockdown (disk writing suppression) function of Windows 10 IoT Enterprise, power can be safely turned off without a shutdown process. Moreover, file system damage or data damage caused by sudden power failure can be avoided.
    • Custom BIOS supporting real-time OS
      • The CPU cores/threads and onboard devices can be flexibly customized to match the OS. System availability is improved by original functions such as storage backup/restore and self-diagnosis functions.

    Specifications

    Specifications
    Mechanical Design
    Mounting Desktop
    Software Support
    Supported OS Windows 10 IoT Enterprise 2019 LTSC 64-bit
    Core System
    CPU Generation (Development code) 8th Gen. (Coffee Lake-S)
    Processor Core i7-8700T; Core i5-8500T
    CPU socket LGA1151
    Memory up to 16GB
    RAS Hardware monitor (Fan speed / Temperature / Voltage); Watchdog timer
    GPU –
    AI Performance –
    Security TCG TPM 2.0; NIST SP800-147 (BIOS Write Protect); Secure Boot USB Key
    Interface
    Video 1x DisplayPort; 1x DVI-D
    LAN 3x 1000BASE-T
    Wireless –
    Audio 1x Line out; 1x Line in; 1x Mic-in
    I/O 6x USB3.2 Gen2 (USB3.1); 2x USB3.2 Gen1 (USB3.0)
    Memory card 1x CFast slot
    Expansion Slot
    Expansion bus –
    Drive bay 1x 2.5-inch shadow bay (SATA)
    Power
    Input voltage 12 to 24VDC
    Environment
    Operating temperature 0 to 55°C (32 to 131°F)
    Storage temperature -20 to 85°C (-4 to 185°F)
    Standards & Certifications CCC; CE; FCC Class A; UKCA; UL; VCCI Class A

    Ordering Informations

    Ordering Information
    Model Description Certification
    EPC-4000-DC39000 Base model with Intel Core i7-8700T (Memory 16GB, without OS, without Storage)
    • CE marking
    • FCC compliant
    • UL
    • VCCI
    EPC-4000-DC3941E With Intel Core i7-8700T (Memory 16GB, Windows 10 IoT Enterprise 2019 LTSC 64bit (English/Chinese/Japanese/Korea), 2.5 inch SSD(TLC) 256GB)
    • CCC compliant
    • CE marking
    • FCC compliant
    • UL
    • VCCI
    EPC-4000-DC28000 Base model with Intel Core i5-8500T (Memory 8GB, without OS, without Storage)
    • CE marking
    • FCC compliant
    • UL
    • VCCI
    EPC-4000-DC2841E With Intel Core i5-8500T (Memory 8GB, Windows 10 IoT Enterprise 2019 LTSC 64bit (English/Chinese/Japanese/Korea), 2.5 inch SSD(TLC) 256GB)
    • CCC compliant
    • CE marking
    • FCC compliant
    • UL
    • VCCI
    Options
    Storage
    Item Item Name
    CFS-16GB-A 1.0-inch SATA CFast Card (SLC)
    CFS-16GBQ-A 1.0-inch 16GB SATA CFast Card (Q-MLC)
    CFS-32GBM-A 1.0-inch 32GB SATA CFast Card (MLC)
    CFS-32GBQ-B 1.0-inch 32GB SATA CFast Card (Q-MLC)　(Wide temperature range spec)
    CFS-A 1.0-inch SATA CFast Card (SLC)
    Other Accessories
    Item Item Name
    EPC-BKT Attachment fittings for EPC-4000, EPC-4000P2 (designed to fit to the sides)
