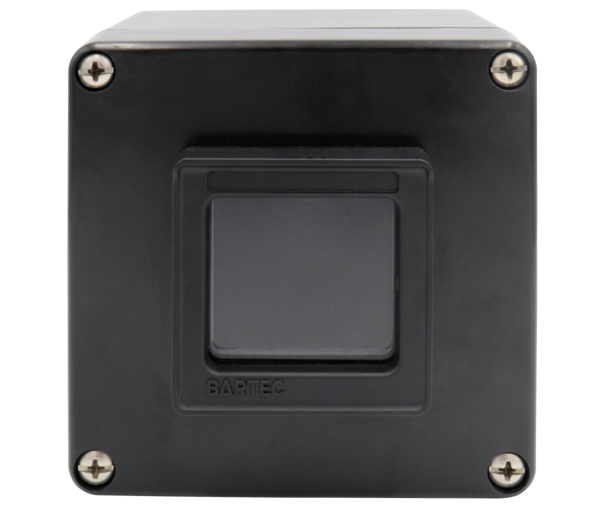

The BARTEC enclosure windows 07-39F1-**** are used in explosion-hazardous areas to enable visibility to display devices mounted inside an enclosure as for example ammeter, voltmeter or displays and is available in two sizes.
Designed for easy and quick installation, it can be mounted using selfcutting screws in a defined cutout of an enclosure. It is compatible with enclosures that have wall thicknesses ranging from 1 mm up to 7 mm, making it suitable for stainless steel, aluminum, and GRP enclosures. The enclosure windows are constructed from fiber-reinforced plastics and feature a high-quality silicon gasket. This design ensures the highest level of safety and ingress protection across a wide temperature range. The window itself is made of UV- and scratch-resistant polycarbonate, ensuring long-term visibility into the enclosure.
| Degree of Protection | IP64 acc. to EN/IEC 60079-0 IP66 acc. to EN/IEC 60529 |
|---|---|
| Mounting | Installation in enclosures with a wall thickness of 1 mm to 7 mm Torque Screws 1.3 Nm |
| Enclosure material | Reinforced plastic |
| Window material | Polycarbonat (UV- and scratch resistant) |
| Gasket material | Silicon |
| Weight | (64 x 64) mm: – approx. 55 g (72 x 72) mm: – approx. 70 g |
