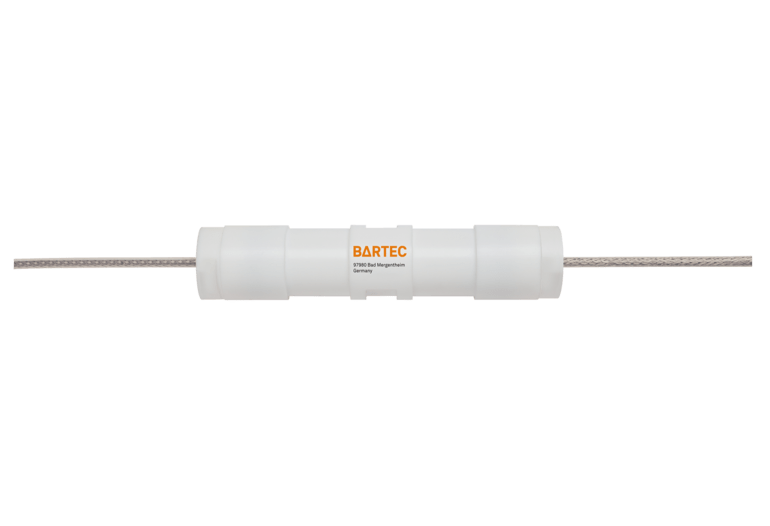

the EKL Connection Technology is a connection system for EKL medium and EKL premium for use in potentially explosive atmospheres. Depending on the design, the ECT connection technology may be used to connect a cold lead or to connect two heating cables. Butt connectors, which ensure a reliable and permanent connection, are used for the electrical connection of the heating wire and the protective braid. Using pre-assembled cold leads and our connection technology, complete heating circuits can be constructed quickly and flexibly.
| Max. Nominal voltage | 750V |
|---|---|
| Max. Nominal current | ECT35-32: 32A ECT35-54: 54A ECT45-73: 73A ECT45-98: 98A ECT45-129: 129A |
| Operating Temperature | -60 °C to +200 °C |
| Min. Installation temperature | -60 °C |
| Dimensions (length/Ø) | ECT35 176 mm/35 mm ECT45 212 mm/45 mm |
| Protection | IP 66 (EN/IEC 60079-0) |
