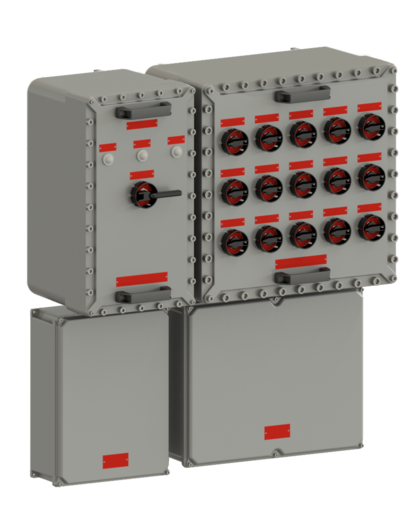

The EJBM enclosures are suitable for installation in all areas of a plant where there is a danger of explosion and/or fire, or where there is the presence of dangerous mixtures (gases or combustible dusts) which are classified as Zone 1, 2, 21, 22.The quality of this product is recognized for the copper free aluminium alloy used and for the mechanical characteristics of the finishes.The EJBM series enclosures are mainly used with the function of terminal block, busbar holders, fuse holders, transformers, drivers and ballasts, intrinsic safety barriers, but also for the construction of control and signaling and distribution panels, voltage arresters, and motor starters with different configurations. The advantage of this solution is to reduce the installation distance between the enclosures by reducing the size of a possible support/frame and reducing the costs for the connection components (conduit fittings).
| Protection class | IP 66 |
|---|---|
| Material | Enclosure material:Copper free aluminium alloy ( 0.1% copper) Surface treatment: External powder type painted RAL9006 Internal anti-condense painting RAL2004 (optional) Enclosure lid: Bolts in stainless steel AISI304 (A2) Internal mounting plate : Aluminium |
| Weight | see data sheet |
| Dimensions | see data sheet |
| Quantity of cable entries | see data sheet |
| Voltage | Max. rated voltage : 13kV (AC) / 750V (DC) |
| Current | Max. rated current : 2000A |
